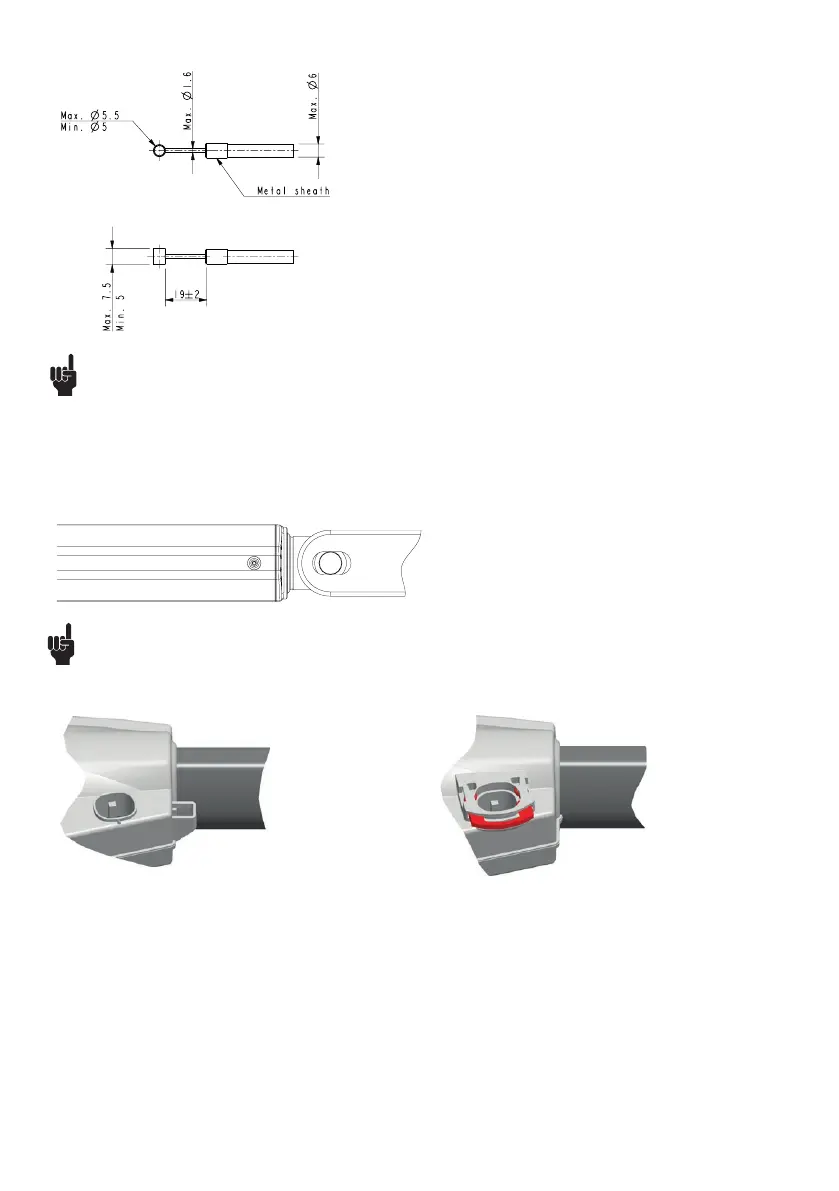

Quick Release cable dimensions:
• The release cable has to be provided by the customer.
• The force required to operate the Quick Release is approx. 1 - 28 kg., depending on the actuator load.
• When operating the Quick Release function, the Quick Release must be activated all the way down and not stopped halfway!
• The Quick Release mechanism can only be ordered with 5 and 6 mm pitch.
Mounting bracket instructions:
To avoid damage to the actuator when the actuator is in the “rest” position there should be no load / tension on the actuator.
LA27 without cable lock
LA27 with cable lock
