Page 57 of 295

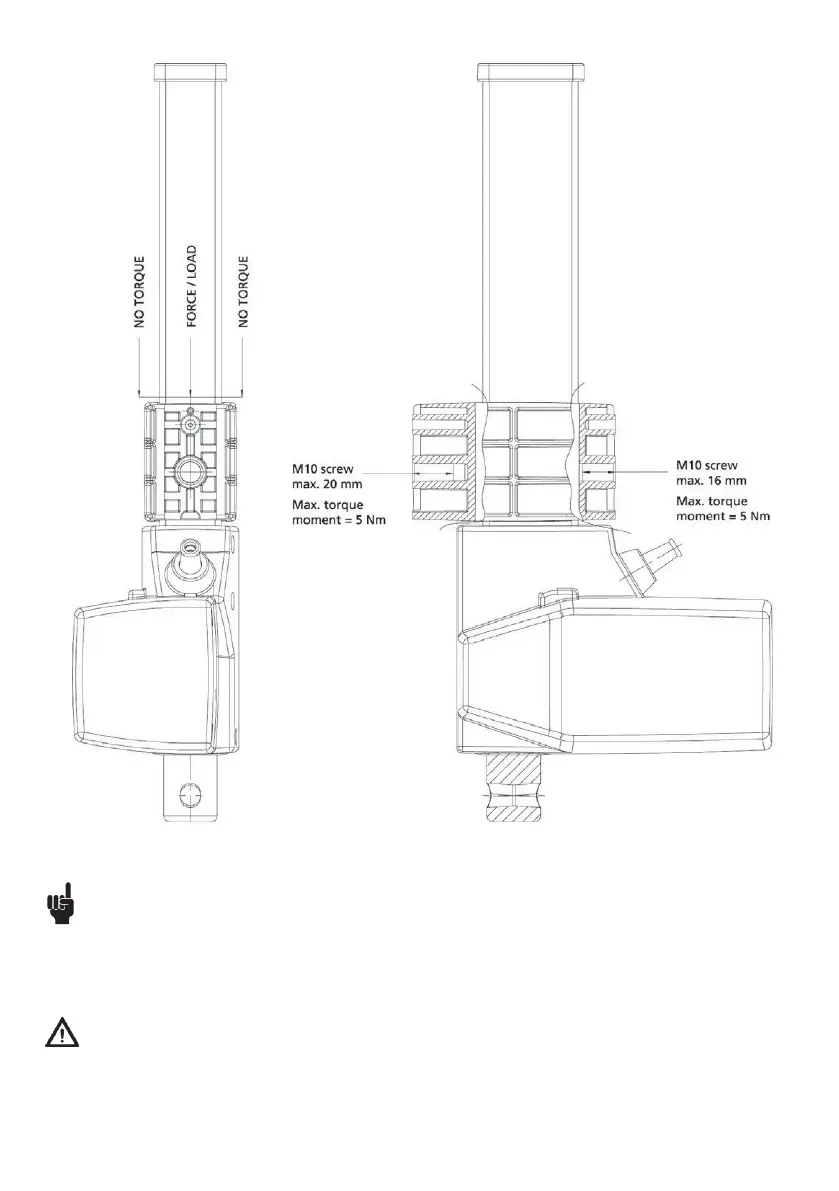

Mounting instructions:
Drawing no.: LA29005A
Warning
• If an LA29 is used in an application with repeated dynamic push/pull, it is necessary to contact LINAK A/S in order to make a correct specification of
the actuator.
Repeated push/pull movements cause extra strain on the actuator and can give safety considerations, the consequence being possible actuator damage.
• Do not sideload the actuator.
• Inspect the actuator at least once a year for war and jarring sound.
Recommendations
• The LA29 actuator must not be used in applications where the actuator is exposed to torque moment, as this will damage the actuator.
• Do not use any other screws for the mounting brackets than those recommended by LINAK.
If longer screws are used they will come into contact with the inner parts of the actuator. This will result in an irregular operation or even damage
the actuator.
