Actuator with IC Advanced - with BusLink

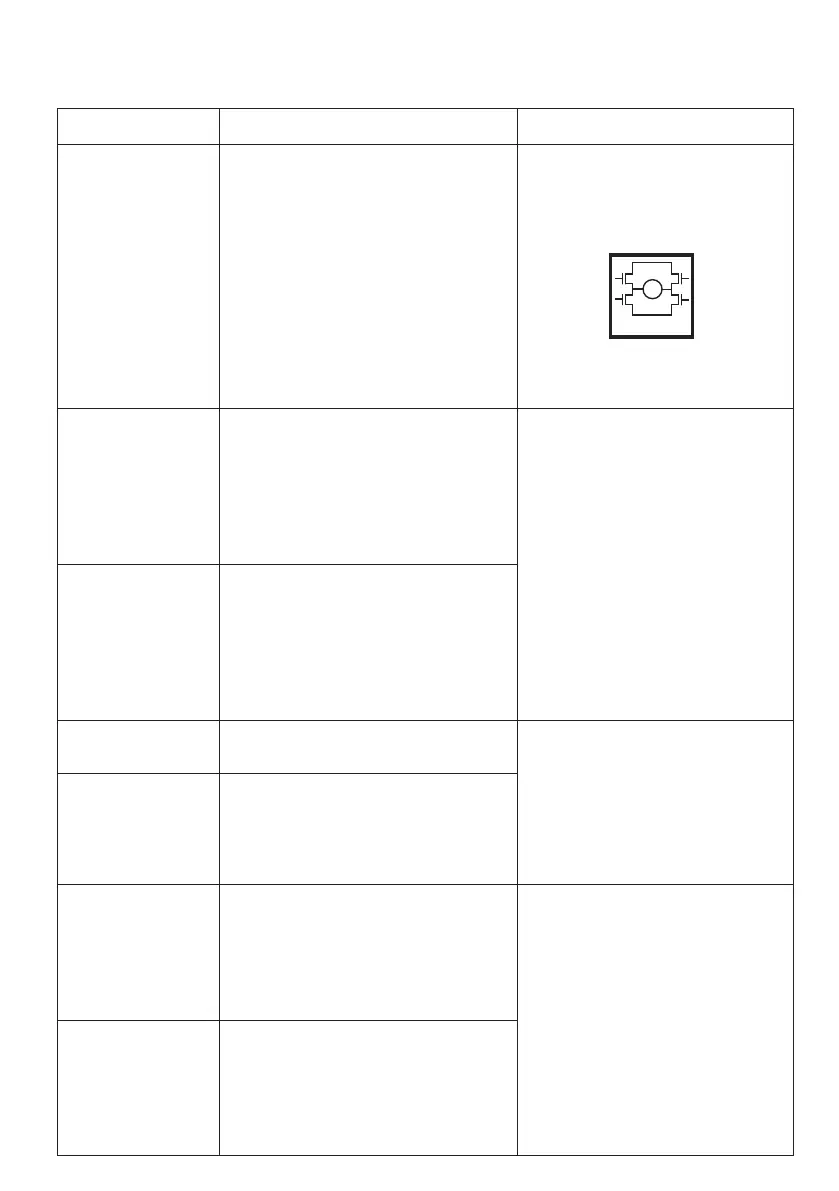

I/O specifications:
Input/Output Specification Comments
Description Easy to use interface with integrated
power electronics (H-bridge).
The actuator can also be equipped with
electronic circuit that gives an absolute or
relative feedback signal.
IC Advanced provides a wide range of pos-
sibilities for customisation.
The version with “IC option” cannot be
operated with PWM (power supply).
See connection diagram,
fig. 14, page 42
Brown 12-24VDC + (VCC)
Connect Brown to positive
12V ± 20%
24V ± 10%
12V, current limit 30A
24V, current limit 20A
Note: Do not change the power supply
polarity on the brown and blue wires!
Power supply GND (-) is electrically
connected to the housing
Current limit levels can be adjusted
through BusLink
If the temperature drops below 0°C,
all current limits will automatically
increase to 30A for 12 V and 25 A for
24 V
Blue 12-24VDC - (GND)
Connect Blue to negative
12V ± 20%
24V ± 10%
12V, current limit 30A
24V, current limit 20A
Red Extends the actuator On/off voltages:
> 67% of V
IN
= ON
< 33% of V
IN
= OFF
Input current: 10mA
Active filter time: reaction time: 52,6
ms before movement
Black Retracts the actuator
Green Endstop signal out Output voltage min. V
IN
- 2V
Source current max. 100mA
Endstop signals are NOT potential free.
Endstop signals can be configured with
BusLink software according to any
position needed
When configuring virtual endstop, it is
not necessary to choose the position
feedback
EOS and virtual endstop will work even
when feedback is not chosen
Yellow Endstop signal in
M
H-Bridge
