Basic Setup (NR800 Series)
6
6.1 Step 1: Connect the IP Cameras
Option 1: Direct Connection to NVR

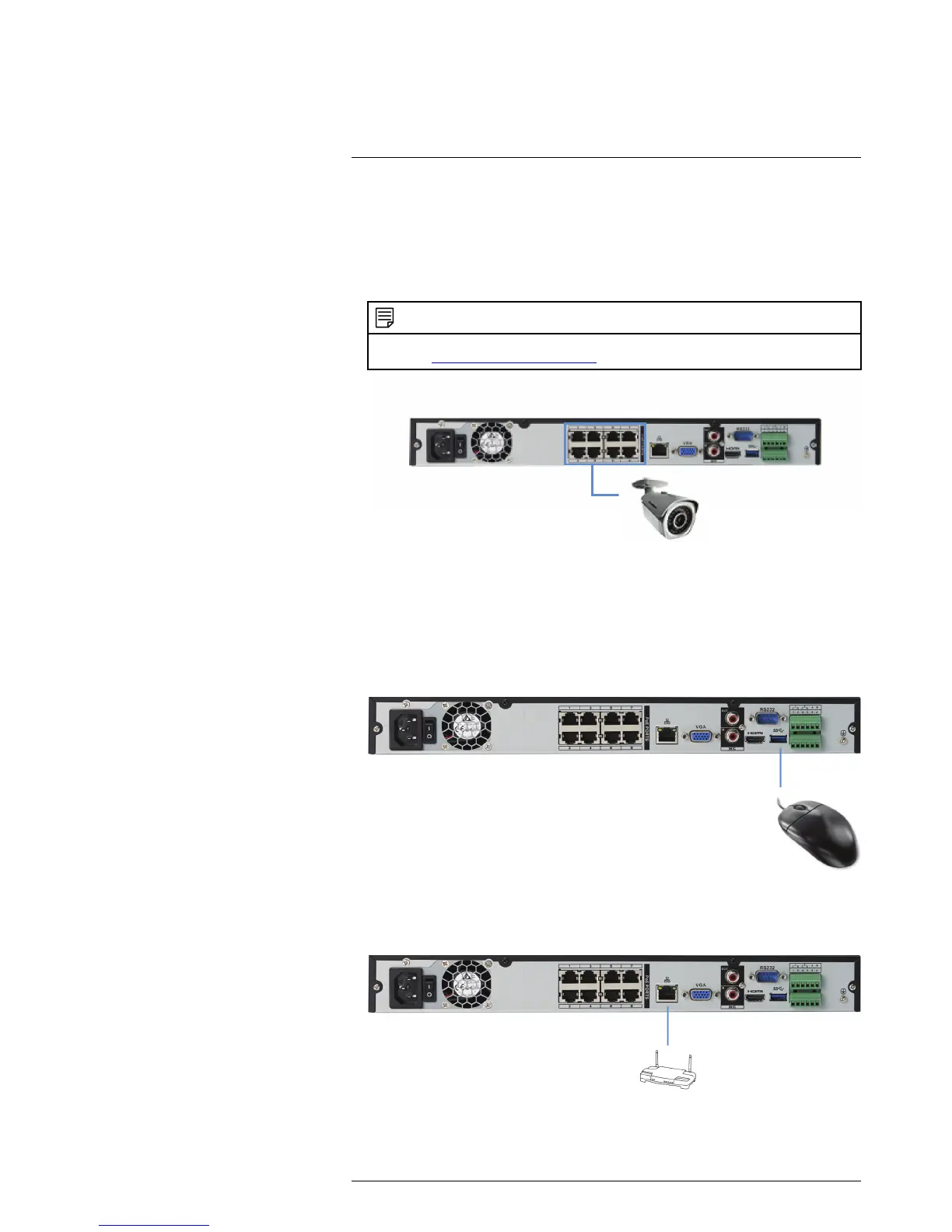

• Connect cameras to the PoE Ports on the rear panel of the NVR using Cat5e or high-
er grade Ethernet cable. The cameras will appear on the NVR without any additional
configuration when the system starts up.
NOTE
Compatible with select Lorex 1080p wired PoE HD cameras only. For a list of compatible cameras,
please visit www.lorextechnology.com/support
Option 2: Connect Cameras to Local Network
You can also connect your IP cameras to your local network for flexible installations. You
will need to do this to connect cameras 9~16 to 16–channel models. For details, see
6.11 Connecting Cameras to the Local Area Network (LAN), page 15.
6.2 Step 2: Connect the Mouse
• Connect a USB mouse (included) to one of the USB ports.
6.3 Step 3: Connect the Ethernet Cable
• Connect an Ethernet cable (included) to the LAN port on the rear panel of the system.
Connect the other end of the Ethernet cable to a router on your network.
#LX400021; r. 4.0/30344/30494; en-US
