13 - 2 Troubleshooting SCF Systems Issue 5 June 2000
Troubleshooting Tables
Organization The tables in this section are organized alphabetically by Alarm LED,
then grouped according to the status of the alarm: Critical (CRIT),
Major (MAJ), or Minor (MIN).
Table Reference Use the reference below to locate the Alarm LED and corresponding
table.
SCF Controller
Display

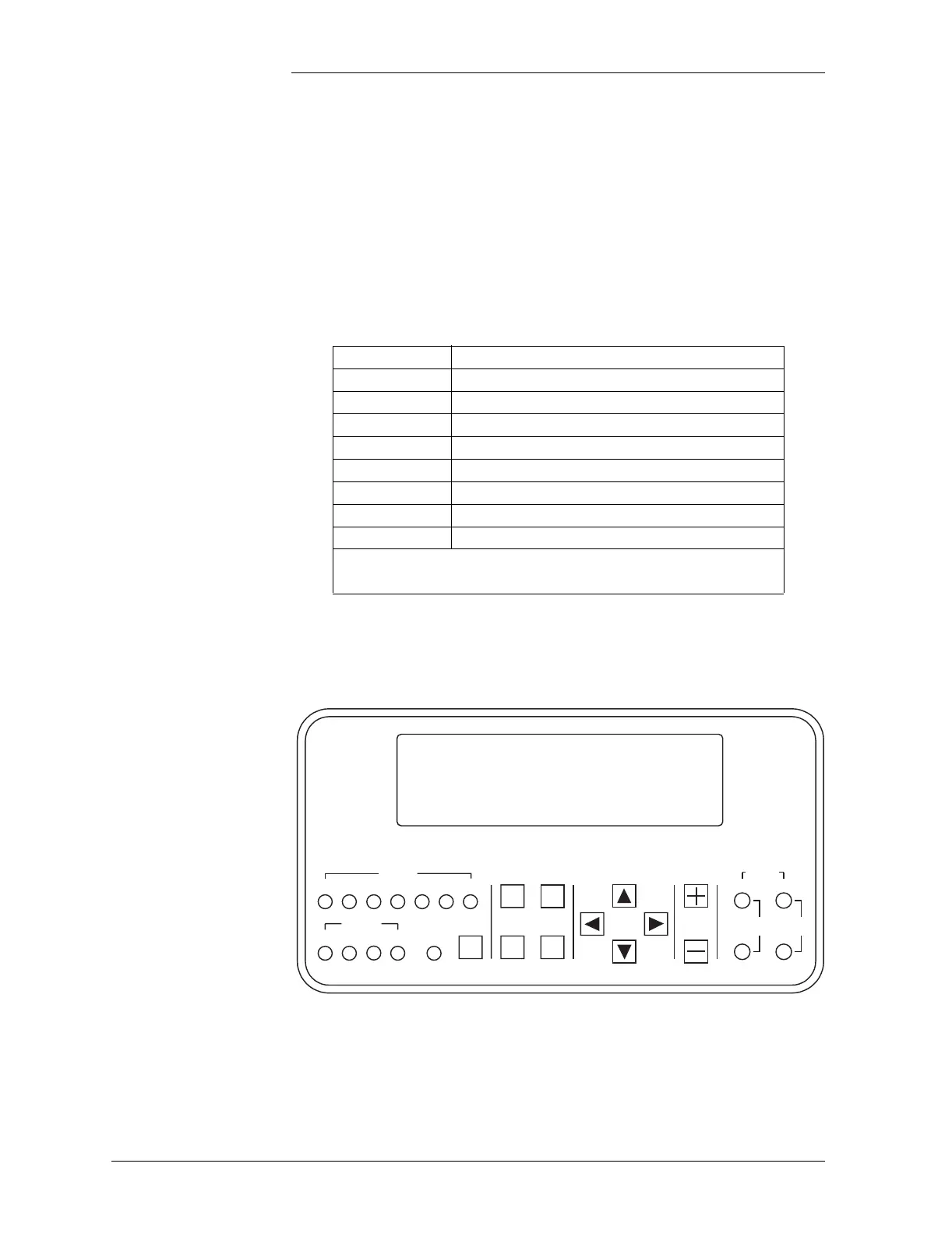

The SCF display is illustrated below.
Alarm LED Table
AC 13-A, AC Alarms
BATT 13-B, Battery Alarms
BD 13-F, Miscellaneous Alarms
CTLR 13-C, Controller Alarms
DIST 13-D, Distribution Alarms
RECT 13-E, Rectifier Related Alarms
RM 13-F, Miscellaneous Alarms
No LED* 13-F, Miscellaneous Alarms
*If an alarm condition exists, but no alarm LED is lit, refer
to Table 13-F.
ALARMS
BD BATT DIST RECT AC RM CTLR
LAMP
TEST
HELP ESCAPE
ENTER
ADJUST
PLANT
CURRENT VOLTAGE
VV
MENU
COMNORMMINMAJCRIT
STATUS
