Lucent Technologies Galaxy Power System 4848/100
Issue 5 June 2000 Battery Connection Panels 6 - 5

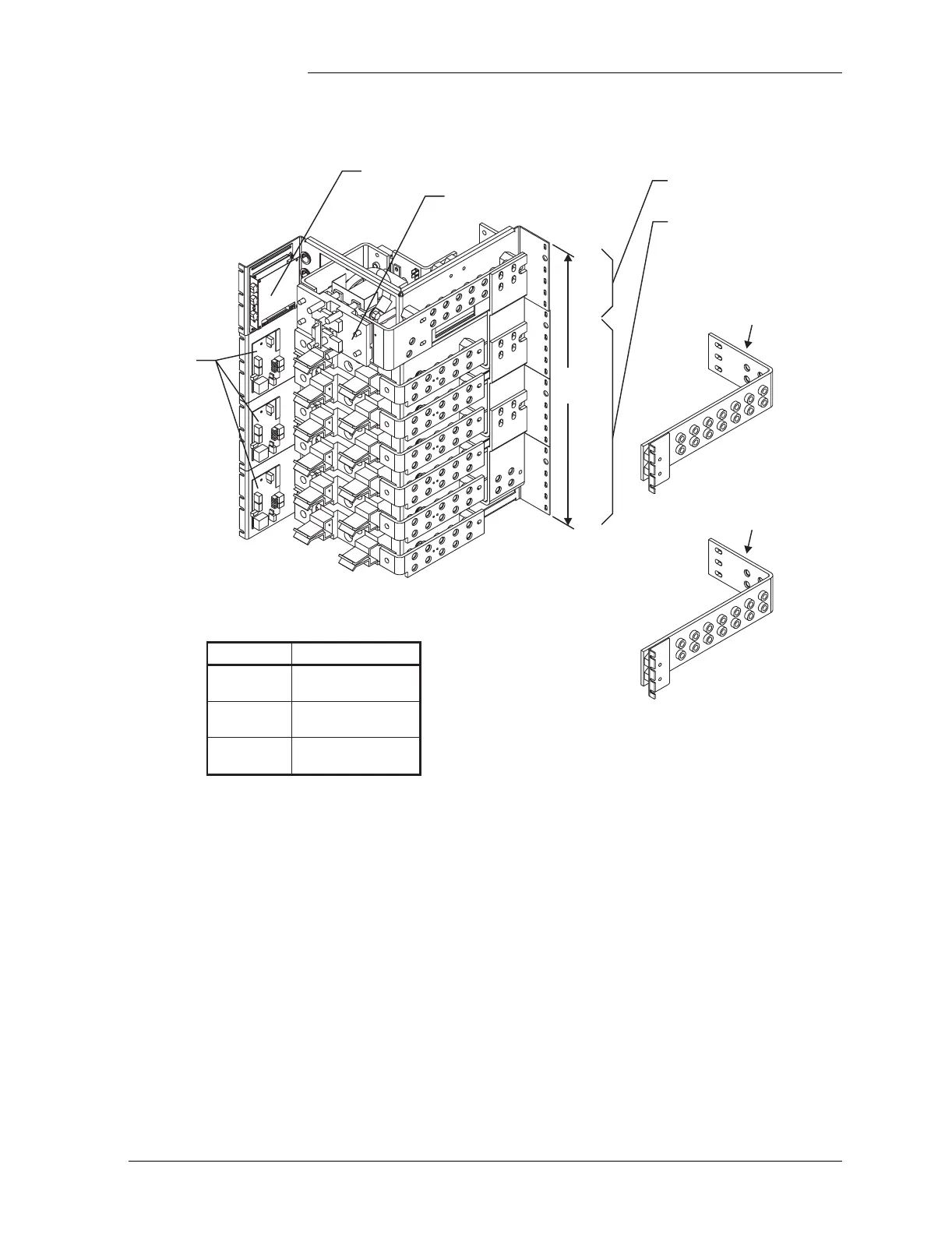

Figure 6-7: H569-434 G80/81/82 (ED83143-30 G31/43)
Battery Connection Panel
Contactor Control Card
Alarm
Cards
1200A Contactor
H569-434 G31
1200A Contactor
H569-434 G43*
Two NH3 DIN Fuses
Two 600A Shunts
Connect to
Charge Return Bus
Connect to
Charge Return Bus
G80
G81
G82
1 G31
1 G43
1 G31
2 G43
1 G31
3 G43 (shown)
*H569-434 Battery Module
Includes:
Group #
24" REF
(610mm)
