Lucent Technologies Galaxy 4848/100 - Figure 2-3: Distributed Architecture Initial and Growth Cabinets

Lucent Technologies Galaxy Power System 4848/100
2 - 4 System Description Issue 5 June 2000
Architecture, continued

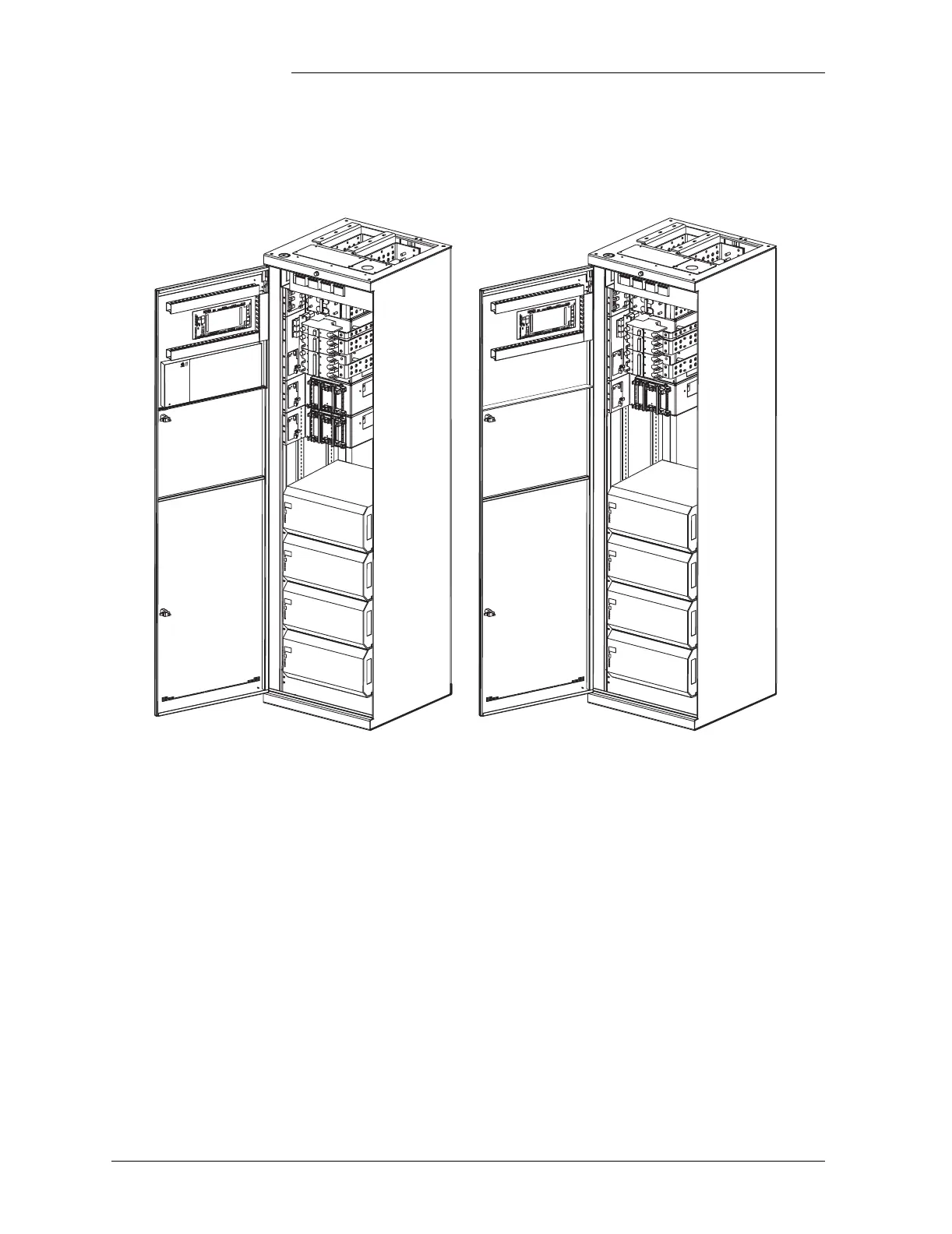

Figure 2-3: Distributed Architecture Initial and Growth Cabinets
Galaxy
ESD
WRISTSTRAP
GROUNDING
POINT
Initial Cabinet Growth Cabinet
