7 - 6 DC Distribution Panels Issue 5 June 2000

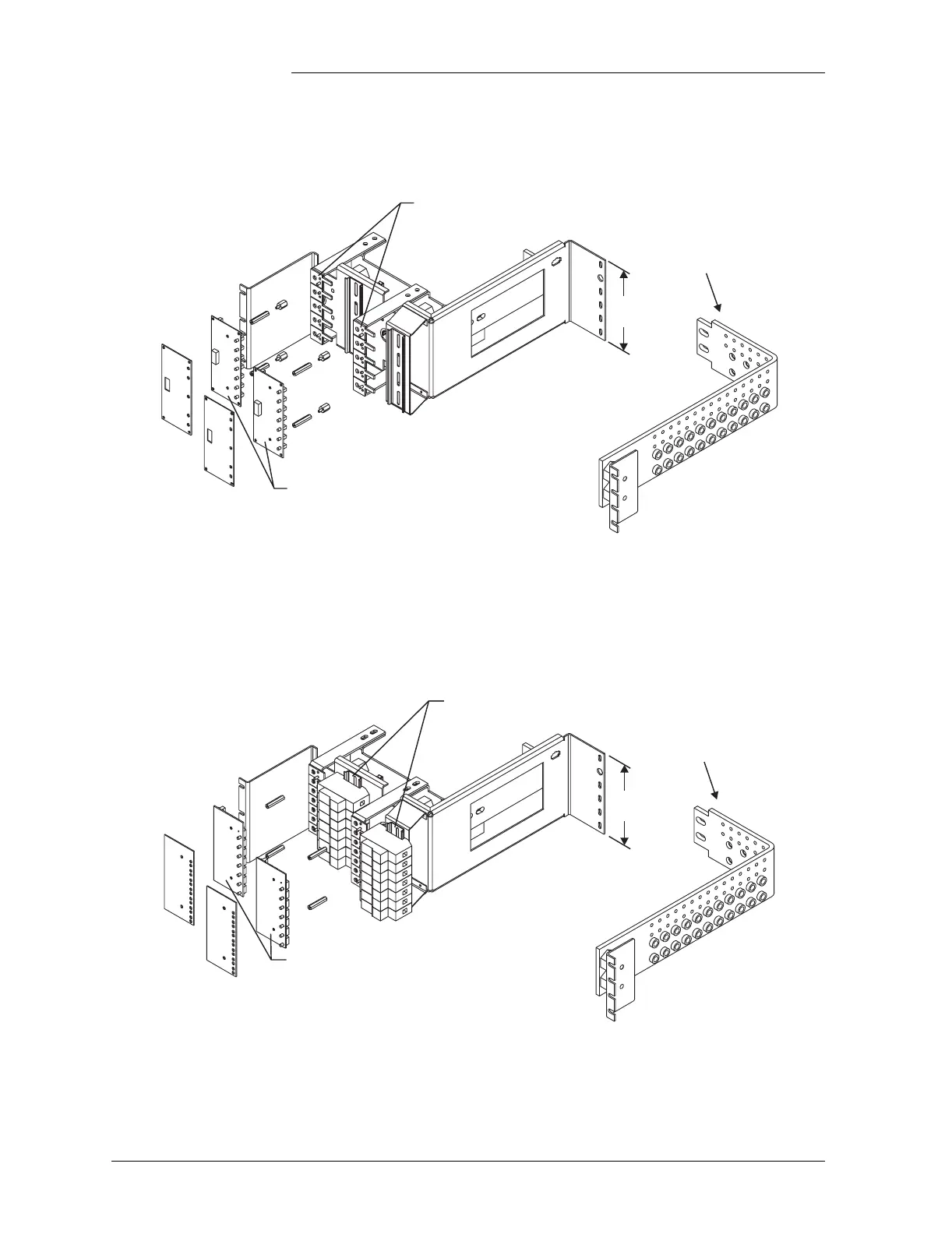

Figure 7-9: H569-434 G61 (ED83143-30 G25/29)
600A DC Distribution Panel
Alarm Cards
10 Positions for
DIN Circuit Breakers
(80-125A)
Connects to
Charge Return Bus
6" REF
(152mm)
Figure 7-10: H569-434 G65 (ED83143-30 G24/28)
600A DC Distribution Panel
Alarm Cards
14 DIN Fuse Holders
(10x38mm Fuses, 1-32A)
Connects to
Charge Return Bus
6" REF
(152mm)
