Lucent Technologies Galaxy Power System 4848/100
Issue 5 June 2000 Troubleshooting Preparations 12 - 9
Reference Figures, continued
Millennium
Controller,
continued

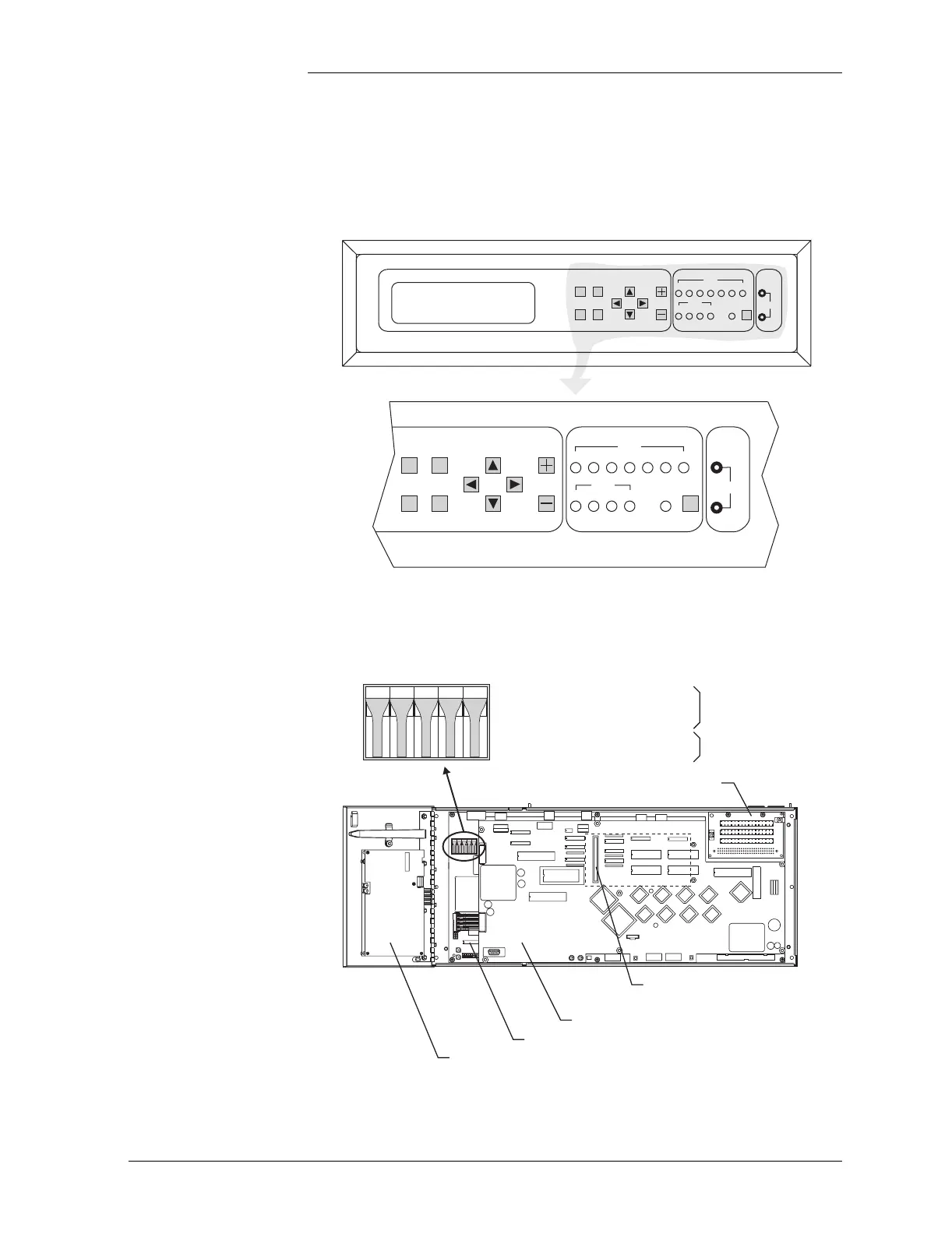

Figure 12-4: Millennium Controller Display
Figure 12-5: Millennium Controller Fuses and Circuit Boards
GALAXY MILLENNIUM CONTROLLER
Menu Enter Adjust
BD
CRIT
BATT
MAJ
DIST
MIN
RECT
NORM
AC RM
COM
CTRL
Lamp
Test
Plant
Voltage
V
Help Escape
Menu Enter Adjust
BD
CRIT
BATT
MAJ
DIST
MIN
RECT
NORM
AC RM
COM
CTRL
Lamp
Test
Plant
Voltage
V
Help Escape
Alarms
Status
Alarms
Status
BSM Modem Board
BSH Basic Controller Board
BSJ Intelligent Controller Board
BSL Alarm Termination Board
BSW Data Switch Board
(mounting location)
Controller Fuses
F1 - Peripheral Monitor Power
F2 - Intelligent Power
F3 - Basic Power
F4 - Voltage Sense
F5 - Alarm Battery Supply
F1 F2 F3 F4 F5
GMT
Fuses
3A
1 1/3A
