Lucent Technologies Galaxy Power System 4848/100

Issue 5 June 2000 DC Distribution Panels 7 - 5

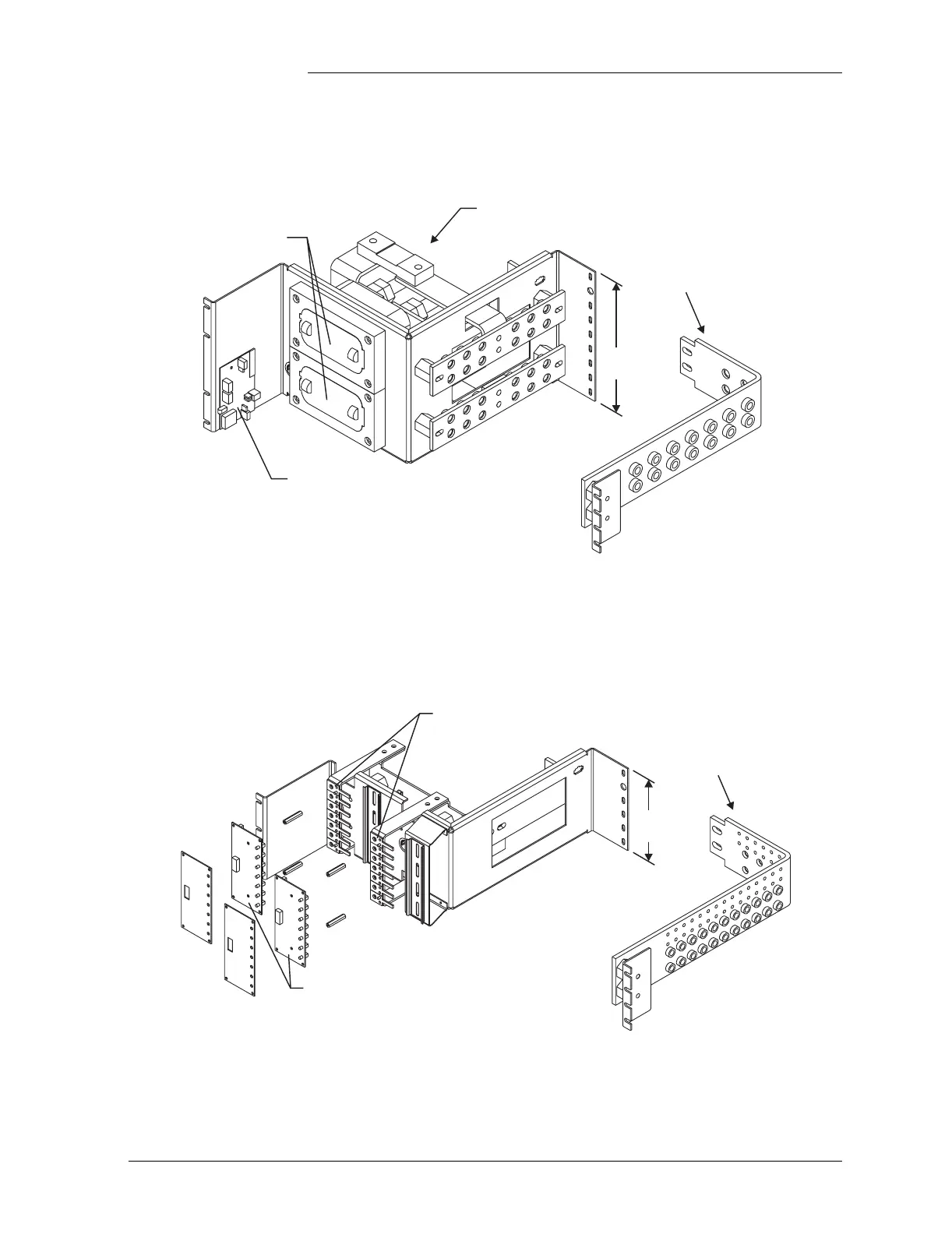

Figure 7-7: H569-434 G53/57 (ED83143-30 G51/52)

1000A DC Distribution Panel

Connects to

Charge Return Bus

Two U.S. Large

Fuse Holders

(TPC Fuses,

100-600A)

Alarm/Terminal Card

Two 600A Shunts

9" REF

(229mm)

Figure 7-8: H569-434 G60 (ED83143-30 G20/26)

600A DC Distribution Panel

Alarm Cards

14 Positions for

DIN Circuit Breakers

(1-63A)

Connects to

Charge Return Bus

6" REF

(152mm)
