Lucent Technologies Galaxy Power System 4848/100
Issue 5 June 2000 Circuit Boards 8 - 3
Illustrations
BLJ and BIC
Locations

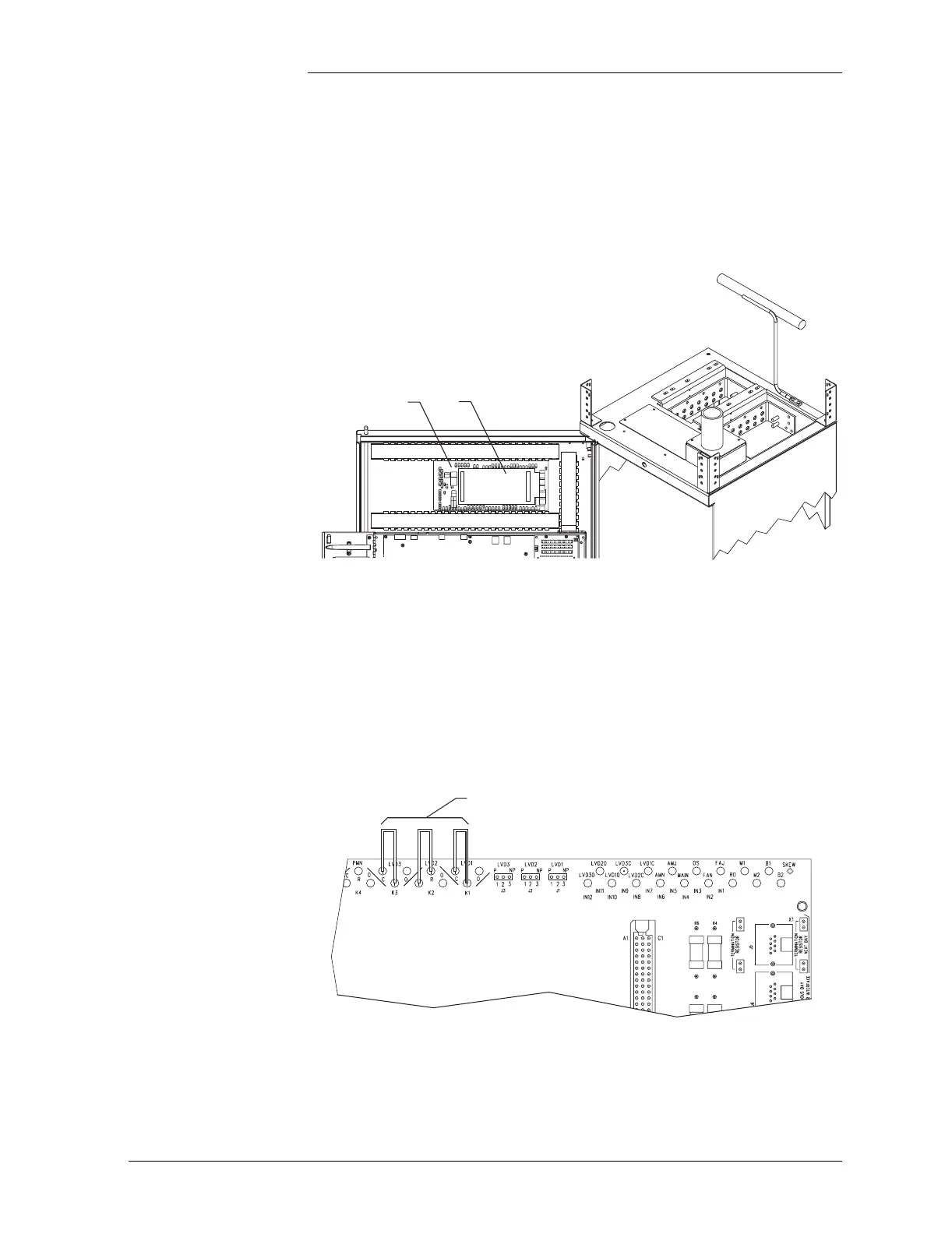

Figure 8-1 shows the location of the BLJ Terminal Board and Bay
Interface Card (BIC).
Replacing the BIC Figure 8-2 shows the BLJ straps required prior to replacing a Bay
Interface Card (BIC). (See “BIC Failure” in Table 14-C.) Straps are
backups to ensure continuous operation of LVBD and LVLD
contactors.
Figure 8-1: Location of BLJ Terminal Board
and Bay Interface Card
BLJ BIC
Figure 8-2: Required Straps Prior to Replacing
Bay Interface Card (BIC)
BLJ2/3
Straps For Replacing BIC Board
