Lucent Technologies Galaxy Power System 4848/100
7 - 8 DC Distribution Panels Issue 5 June 2000

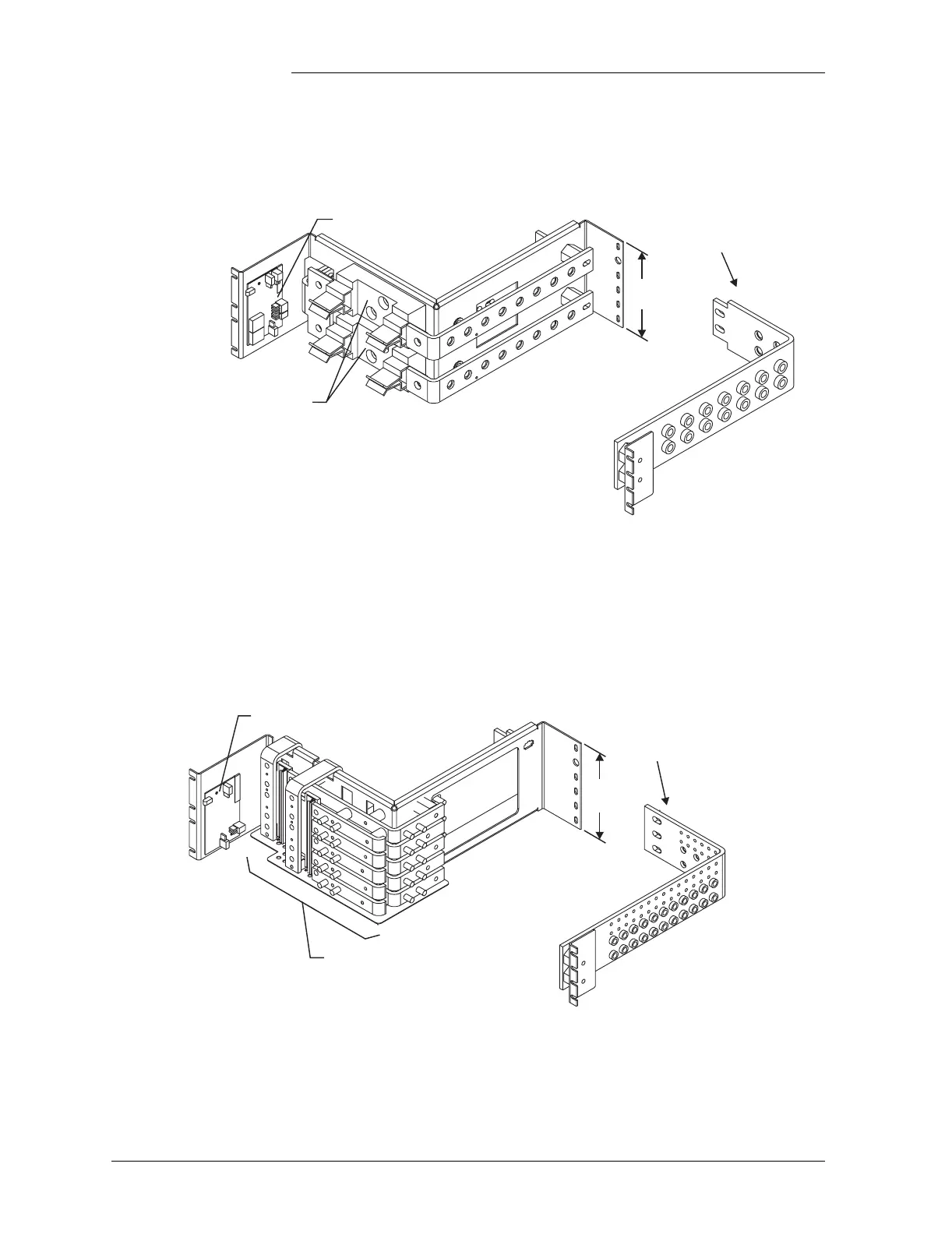

Figure 7-13: H569-434 G68 (ED83143-30 G21)
1200A DC Distribution Panel
Alarm Card
Connects to
Charge Return Bus
Two NH2 Fuse Holders
(32-400A)
6" REF
(152mm)
Figure 7-14: H569-434 G95 (ED83143-30 G15)
510A DC Distribution Panel
Alarm Card
10 Positions for Plug-in
Bullet Style Circuit Breakers
(1-150A)
Connects to
Charge Return Bus
6" REF
(152mm)
