Lucent Technologies Galaxy Power System 4848/100
Issue 5 June 2000 DC Distribution Panels 7 - 7

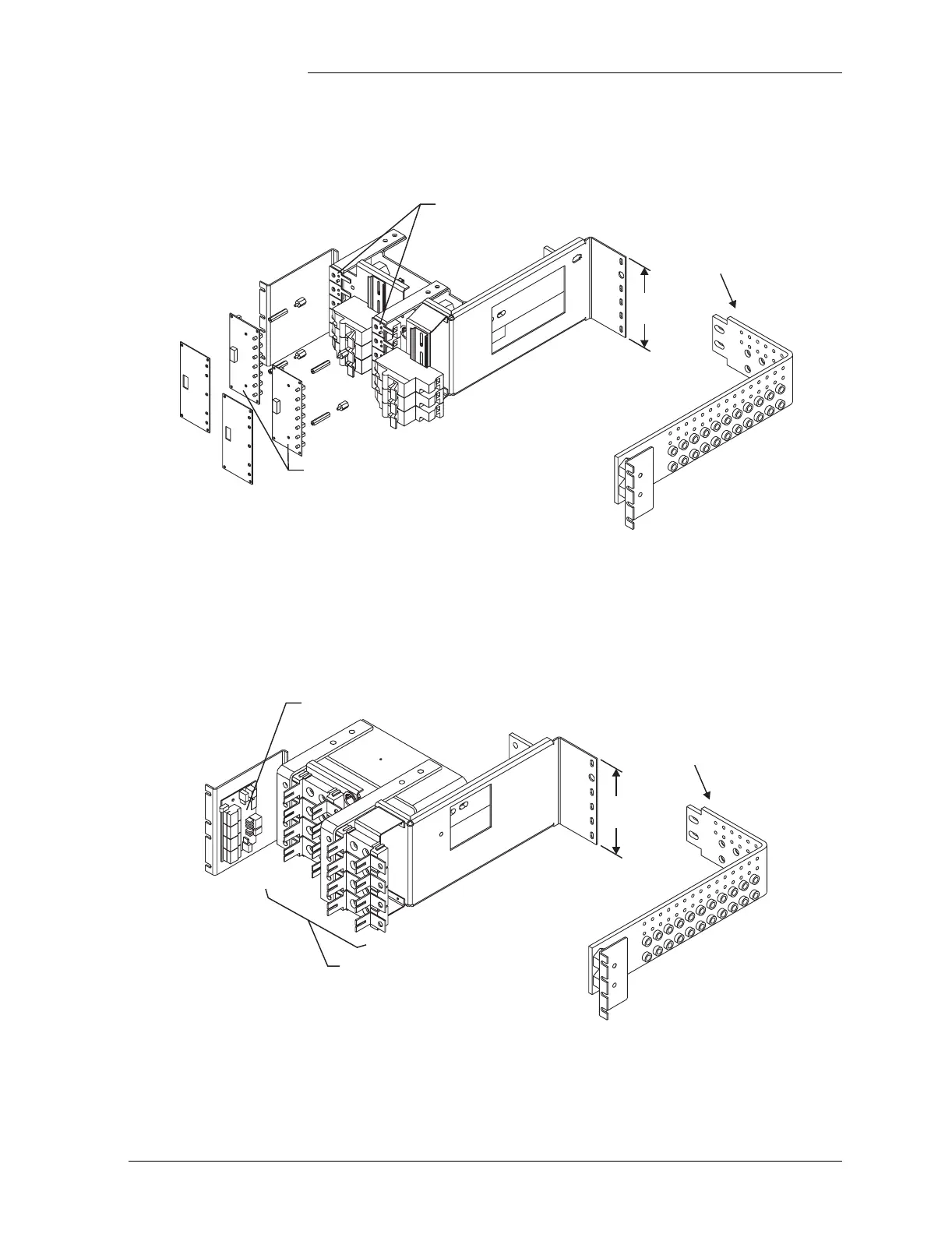

Figure 7-11: H569-434 G66 (ED83143-30 G23/27)
600A DC Distribution Panel
Alarm Cards
10 DIN Fuse Holders
(14x51mm Fuses, 1-50A)
Connects to
Charge Return Bus
6" REF
(152mm)
Figure 7-12: H569-434 G67 (ED83143-30 G22)
600A DC Distribution Panel
Alarm Card
Eight NH00 Fuse Holders
(4-160A)
Connects to
Charge Return Bus
6" REF
(152mm)
