Lucent Technologies Galaxy Power System 4848/100
5 - 4 AC Input Panels Issue 5 June 2000

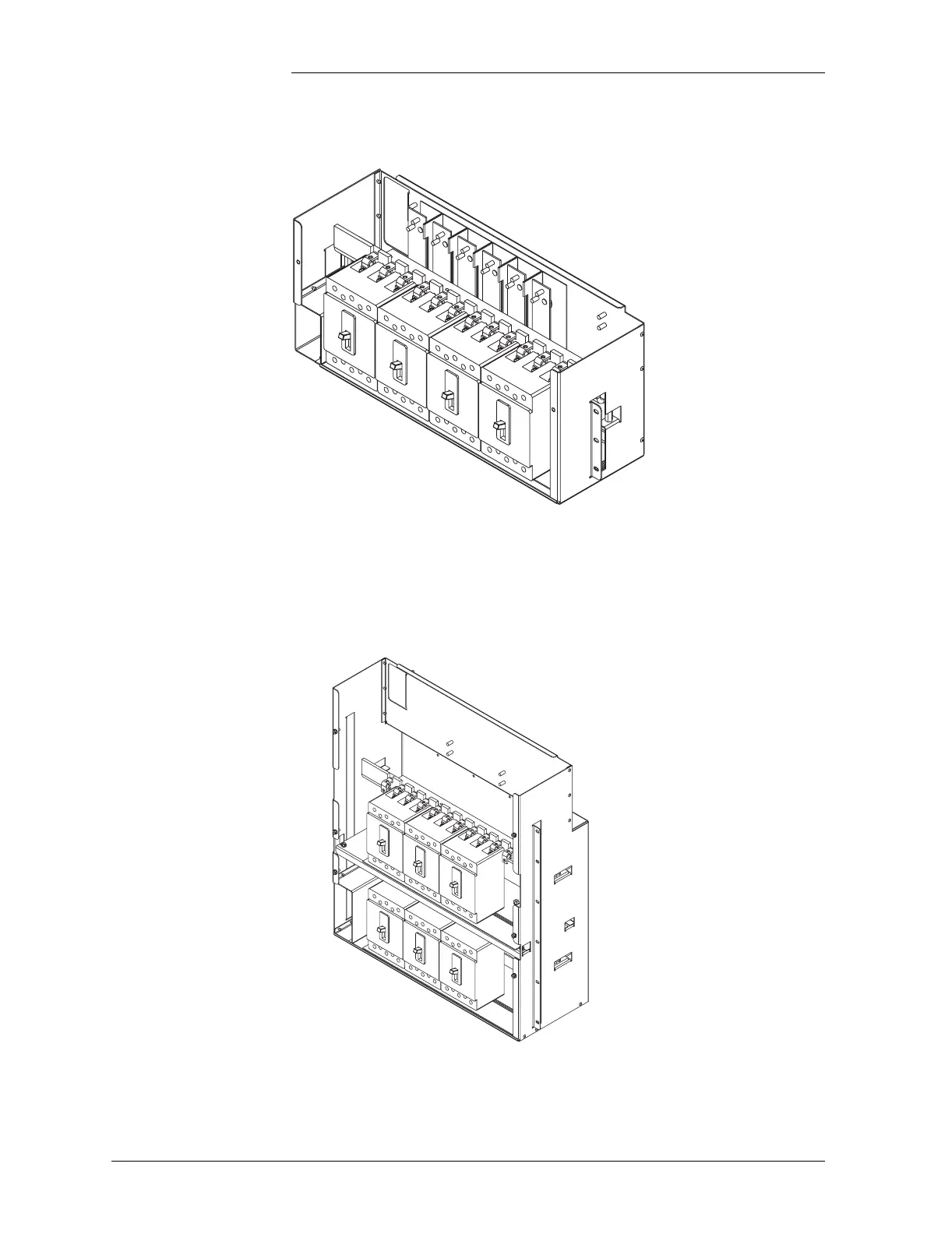

Figure 5-5: H569-434 G70 (ED83142-30 G10)
480V 65kAIC AC Input Terminal Strip Panel
Figure 5-6: H569-434 G71 (ED83142-30 G11)
480V 65kAIC AC Input Terminal Strip Panel
