MAINTENANCE/SERVICE

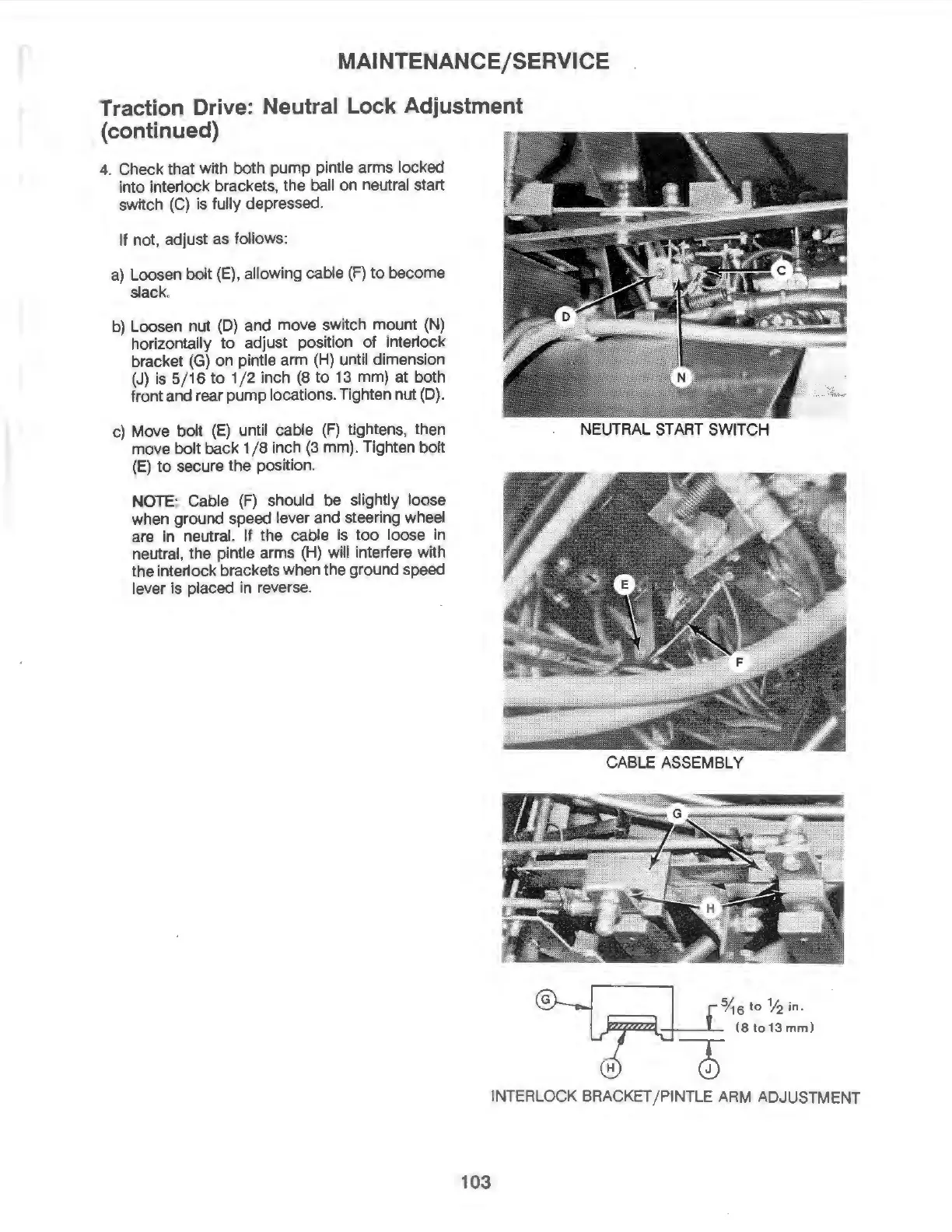

Traction Drive: Neutral Lock Adjustment
(continued)
4. Check that with both pump pintle arms locked
into lnter1ock brackets, the ball
on neutral start
switch
(C) is fully depressed.
If not , adjust as follows:
a) Loosen
bolt (E), allowing cable (F) to become
slack.
b) Loosen nut (D) and move switch mount (N)
horizontally
to adjust position of inter1ock
bracket (G)
on pintle arm (H) until dimension
(J) Is
5/16 to 1/2 inch (8 to 13 mm) at both
front and rear
pump locations. Tighten nut (D).
c) Move
bolt (E) until cable (F) tightens, then
move
bolt back 1 /8 inch (3 mm). Tighten bolt
(E) to secure the position.
NOTE : Cable (F) should be slightly loose
when ground speed lever and steering wheel
are in neutral.
If the cable is too loose in
neutral,
the pintle arms (H) will interfere with
the inter1ock brackets when the ground speed
lever Is placed in reverse.
NEUTRAL START SWITCH
CABLE ASSEMBLY
(8to13mm)
INTERLOCK BRACKET /PINTLE ARM ADJUSTMENT
103
