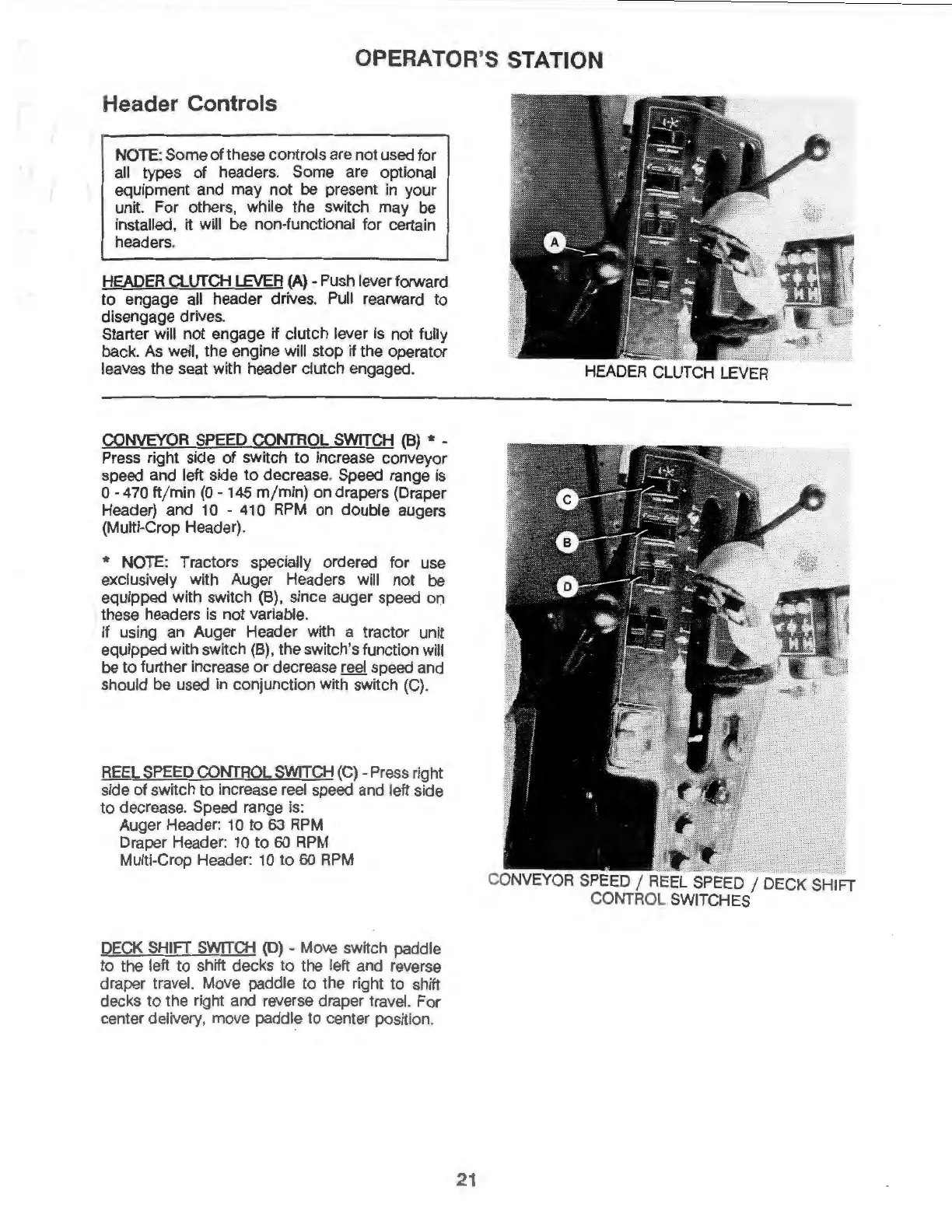

OPERATOR
'S
STATION
Header Controls
NOTE:
Some
of
these controls are not used for
all types
of
headers. Some are optional
equipment and may not
be
present in your
unit. For others, while the switch may
be
installed, it will be non-functional for certain
headers.
HEADER CLUTCH
LEVER
(A)
- Push lever forward
to
engage all header drives. Pull rearward
to
disengage drives.
Starter will not engage
if clutch lever
Is
not fully
back. As well, the engine will stop
if the operator
leaves the seat with header clutch engaged.
CONVEYOR
SPEED
CONTROL
SWITCH
(B)
* -
Press right side of switch
to
increase conveyor
speed and left side
to
decrease. Speed range is
o -470
ft/min
(O
-
145
m/mln) on drapers (Draper
Header) and 10 -
41
o
RPM
on double augers
(Multi-Crop Header).
* NOTE: Tractors specially ordered for use
exclusively with Auger Headers will not be
equipped with switch (B), since auger speed
on
these headers
Is
not variable.
if
using an Auger Header with a tractor unit
equipped with switch (B), the switch's function will
be
to
further increase
or
decrease
~
speed and
should
be used in
co
njunction with switch
(C)
.
REEL
SPEED CONTROL SWITCH
{C)
- Press right
side of switch
to
increase reel speed and left side
to
decrease. Speed range is:
Auger Header: 1
O
to
63
RPM
Draper Header: 1 O
to
60
RPM
Multi-Crop Header:
10
to
60
RPM
DECK SHIFT SWITCH
{D)
- Move switch paddle
to
the left
to
shift decks
to
the left and reverse
draper travel. Move paddle
to
the right
to
shift
decks
to
the right and reverse draper travel. For
center delivery, move paddl~
to
center position.
21
HEADER
CLUTCH
LEVER
~ . . . . . .
~
t
u
.,
~ .
CO
NVEYOR
SPEED
/
REEL
SPEED / DECK SHIFT
CONTROL
SW
ITCHES
