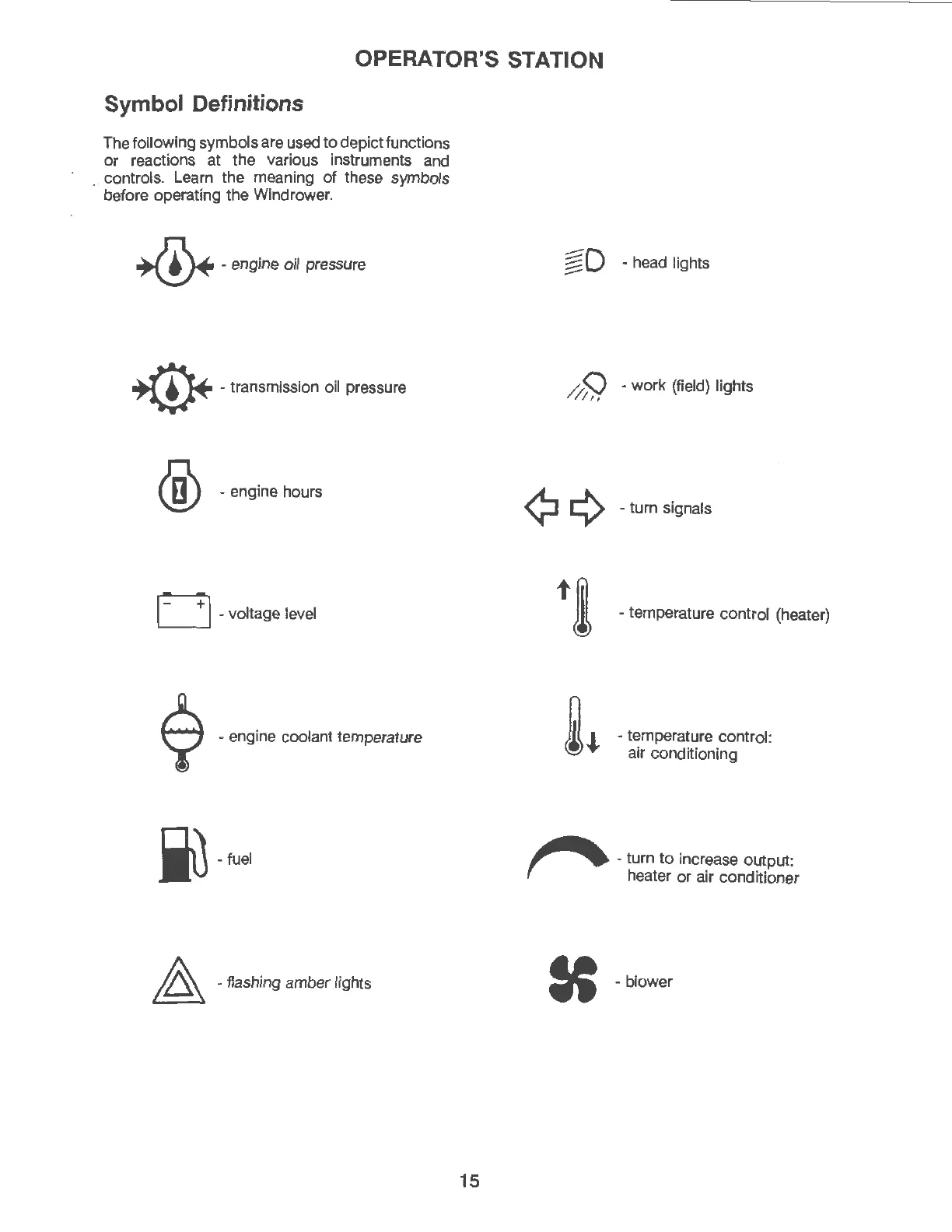

OPERATOR'S STATION
Symbol Definitions
The following symbols are used to depict functions
or reactions at the various instruments and
controls. Learn the meaning of these symbols
' before operating the Windrower.
~ - engine oil pressure
~ - transmission oil pressure
@ -engine hours
□
- voltage level
$ -engine coolant temperature
A -flashing amber lights
15
~ D -head lights
;;..-
// Q -work (field) lights
// ,,
¢ c!> -turn signals
- temperature control (heater)
- temperature control:
air conditioning
~ - turn to increase output:
f ~ heater or air conditioner
H -blower
