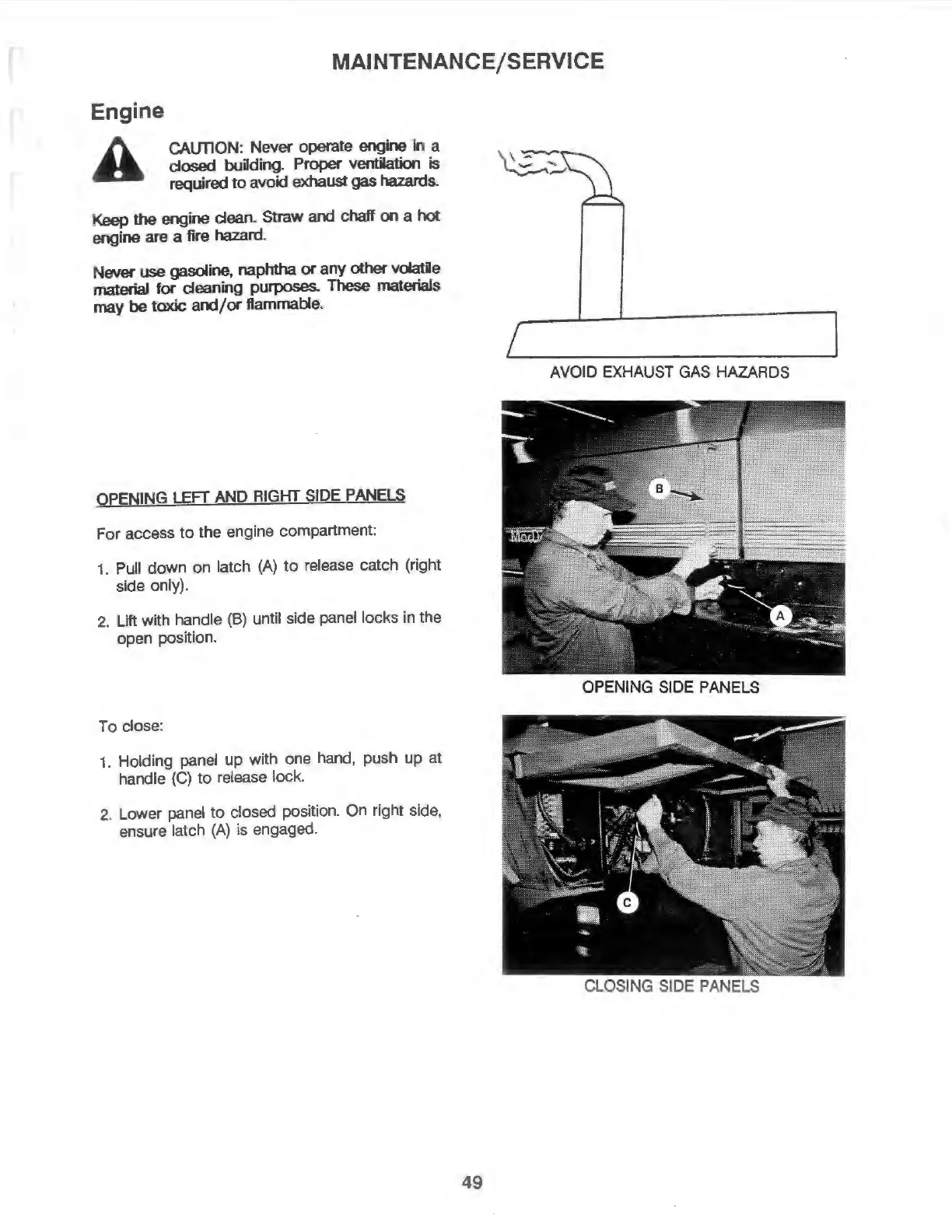

MAINTENANCE/SERVICE
Engine
A
CAUTION: Never operate engine in a
dosed building. P roper ventiation is
required to avoid exhaust gas hazards.
Keep the engine dean. Straw and chaff on a hot
eng ine are a fire hazard.
Never use gasoline, naphtha or any other volatle
material for deaning purposes. These materials
may be toxic and/or flammable.
OPENING
LEFT AND RIGHT SIDE PANELS
For access to the engine compartment:
1. Pull
down on latch (A) to release catch (right
side only).
2. Lift with handle (B) until side panel locks in the
open position.
To close:
1. Holding panel up with one hand, push up at
handle
(C) to release lock .
2. Lower panel
to closed position. On right side,
ensure latch
(A) is engaged.
AVOID EXHAUST GAS HAZARDS
OPENING SIDE PANELS
49
