MAINTENANCE/SERVICE
Header

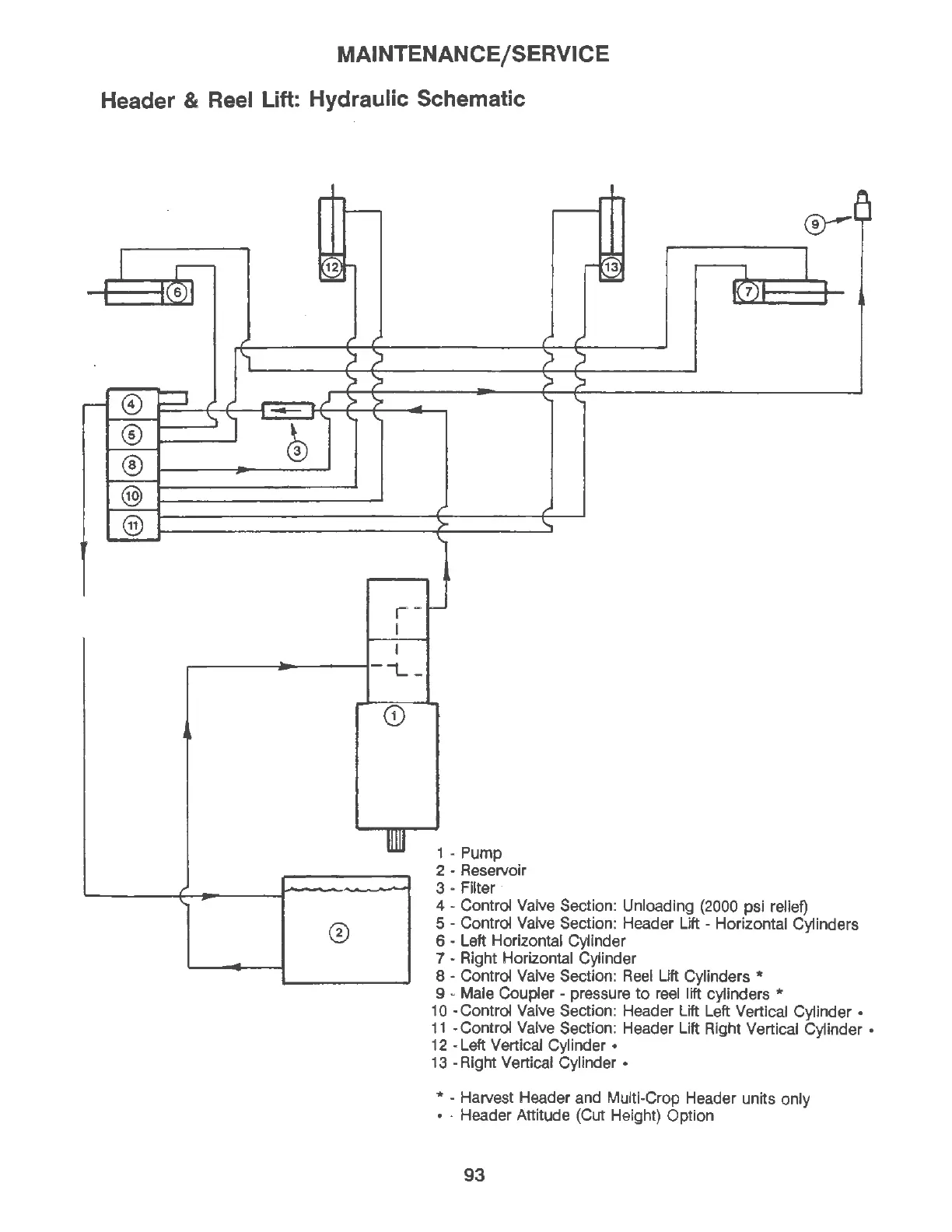

& Reel Lift: Hydraulic Schematic
-
I
,--------------1- i... -
0
1 - Pump
2 - Reservoir
3 - Filter ·
4 - Control Valve Section: Unloading (2000 psi relief)
5 - Control Valve Section: Header Lift - Horizontal Cylinders
6 - Left Horizontal Cylinder
7 - Right Horizontal Cylinder
8 - Control Valve Section:
Reel Lift Cylinders *
9 - Male Coupler - pressure to reel lift cylinders *
10 -Control Valve Section: Header Lift Left Vertical Cylinder •
11 -Control Valve Section: Header Lift Right Vertical Cylinder •
12 -Left Vertical Cylinder •
13 - Right Vertical Cylinder •
* - Harvest Header and Multi-Crop Header units only
• - Header Attitude (Cut Height) Option
93
