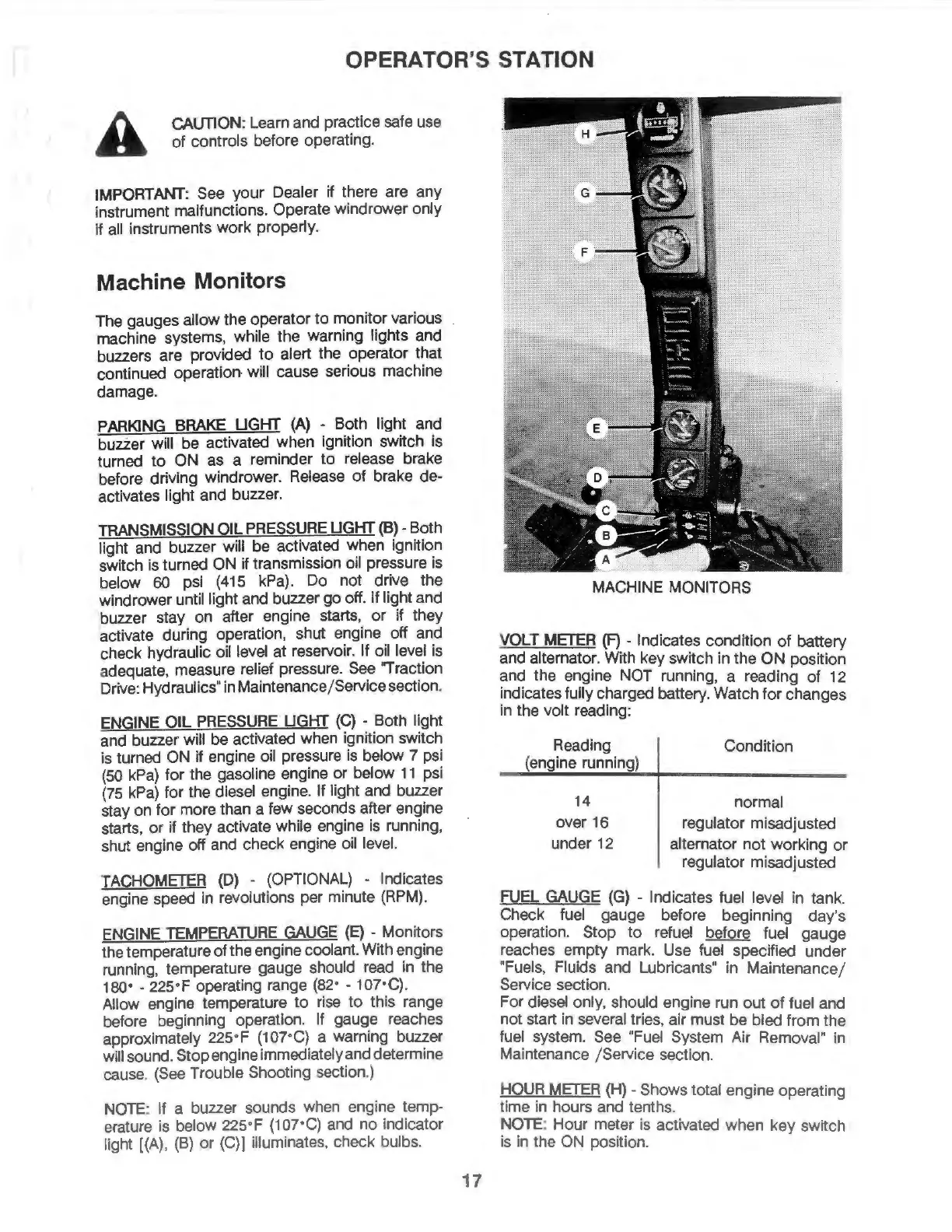

OPERATOR'S STATION
A
CAUTION: Learn and practice safe use
of
controls before operating.
IMPORTANT: See your Dealer if there are any
instrument malfunctions. Operate windrower only
if all instruments
work
properly.
Machine Monitors
The gauges allow the operator
to
monitor various
machine systems, while the warning lights and
buzzers are provided
to
alert the operator that
continued operation- will cause serious machine
damage.
PAR
KING BRAKE
UGI-ff
(A)
· Both light and
buzzer will be activated when ignition switch Is
turned
to
ON as a reminder
to
release brake
before driving windrower. Release
of
brake de-
ac
tivates light and buzzer.
TRANSMISSION OIL
PRESSURE
UGI-ff
(B)
• Both
light and buzzer will be activated when ignition
switch is turned ON if transmission oil pressure is
below 60 psi (415 kPa). Do not drive the
windrower until light and buzzer go off. If light and
buzzer stay on after engine starts,
or
if they
activate during operation, shut engine off and
check hydraulic oil level
at
reservoir. If oil level is
adequate, measure relief pressure. See "Traction
Drive: Hydraulics" in Maintenance/Service section.
ENGI
NE
OIL PRESSURE
UGI-ff
(C)
· Both light
and buzzer will be activated when ignition switch
is turned ON if engine oil pressure is below 7 psi
(50
kPa)
for the gasoline engine
or
below
11
psi
(75
kPa)
for the diesel engine. If light and buzzer
stay on for more than a few seconds after engine
starts,
or
if they activate while engine is running,
shut engine off and check engine oil level.
TACHOMETER
(D)
- (OPTIONAL) • Indicates
engine speed
in
revolutions per minute
(RPM)
.
ENGINE TEMPERATURE GAUGE
(E)
· Monitors
the temperature
of
the engine coolant. With engine
running, temperature gauge should read in the
180• - 225·F operating range
{82•
• 107•C).
Allow engine temperature
to
rise
to
this range
before beginning opera
ti
on. If gauge reaches
approximately 225•F {107•C) a warning buzzer
will sound. Stop engine immediately and determine
cause. (See Trouble Shooting section.)
NOTE: If a buzzer sounds when engine temp-
erature Is below 225·F (107•C) and
no
indicator
light [(A),
(B)
or
(C)] illuminates, check bulbs.
17
MACHINE MONITORS
VOLT
METER
(F)
- Indicates condition
of
battery
and alternator. With key switch in the ON position
and the engine NOT running, a reading
of
12
indicates fully charged battery. Watch
for
changes
In
the volt reading:
Reading
(engine running)
14
over 16
under 12
Condition
normal
regulator misadjusted
alternator not working
or
regulator misadjusted
FUEL GAUGE (G) · Indicates fuel level in tank.
Check fuel gauge before beginning day's
operation. Stop
to
refuel before fuel gauge
reaches empty mark. Use fuel specified under
"Fuels, Fluids and Lubricants· In Maintenance/
Service section.
For diesel only, should engine run out
of
fuel and
not start in several tries, air must be bled from the
fuel system. See "Fuel System Air Removal" in
Maintenance /Service section.
HOUR METER
(H)
- Shows total engine operating
time
In
hours and tenths.
NOTE: Hour meter Is activated when key switch
is in the ON position.
