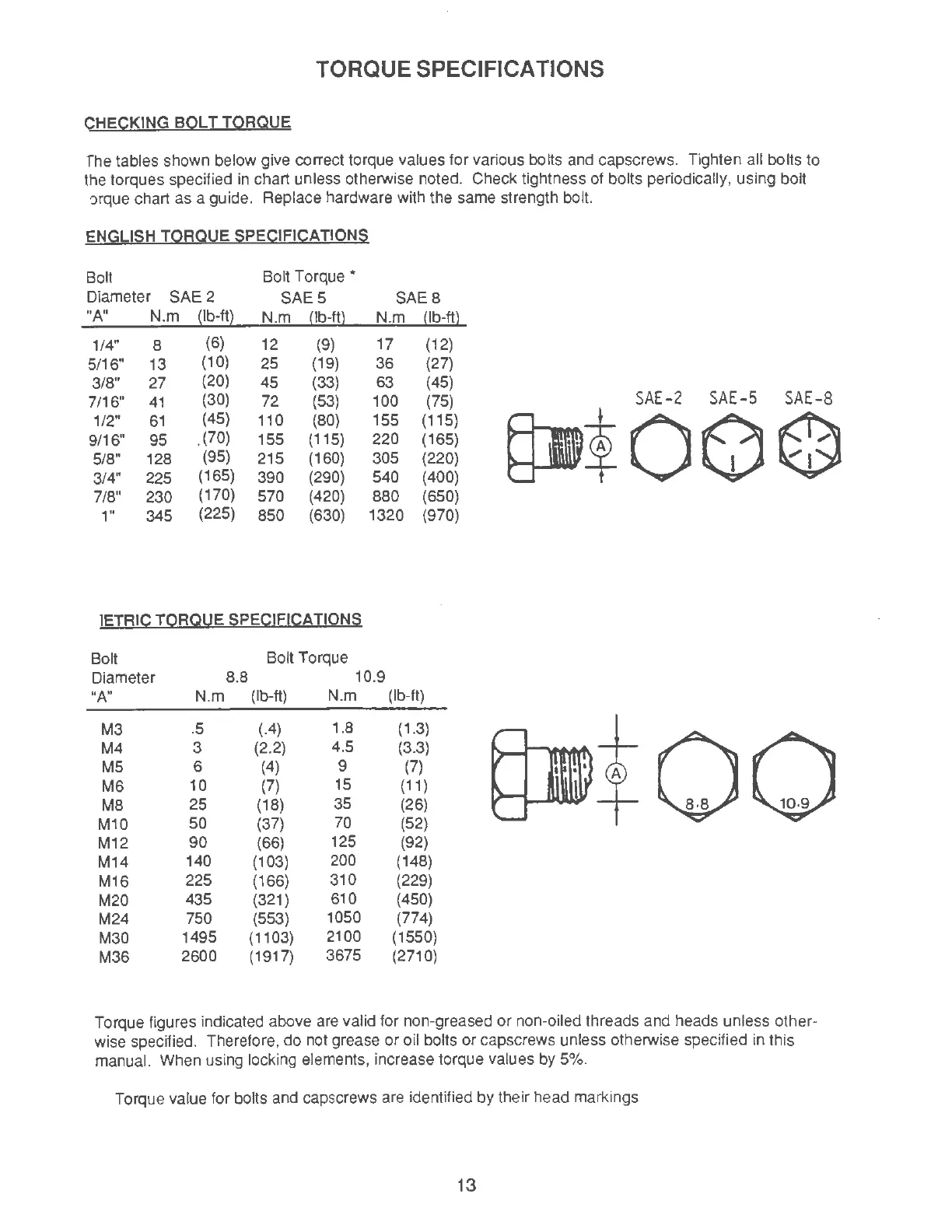

TORQUE SPECIFICATIONS
CHECKING
BOLT
TORQUE
fhe
tables shown below give correct torque values
for
various bolts and capscrews. Tighten all bolts
to
the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt
orque chart
as
a guide. Replace hardware with the same strength bolt.
ENGLISH
TORQUE
SPECIFICATIONS
Bolt
Diameter
SAE
2
"A"
1/4"
5/16"
3/8"
7/16"
1/2"
9/16"
5/8"
3/4
"
7/8"
1"
N.m (lb-ft)
8 (6)
13
(10)
27
(20)
41
(30)
61
(45)
95
. (70)
128 (95)
225 (165)
230 (170)
345 (225)
Bolt Torque
,.
$AES
N.m (lb-ft)
12
(9)
25 (19)
45
(33)
72
(53)
110 (80)
155 (115)
215 (160)
390
(290)
570
(420)
850
(630)
lETRIC
TORQUE
SPECIFICATIONS
Bolt
Bolt Torque
SAE8
N.m (lb-ft)
17
(12)
36
(27)
63 (45)
100 (75)
155 (115)
220 (165)
305 (220)
540 (400)
880
(650)
1320 (970)
Diameter
8.8 10.9
"AH
N.m
(lb-ft) N.m (lb-ft)
M3
.5 (.4)
1.8
(1.3)
M4
3 (2.
2)
4.5
(3.3)
MS
6 (4)
9
(7)
M6
10
(7)
15
(11)
MS
25
(18)
35
(26)
M10
50
(37)
70
(52)
M12
90
(66)
125
(92)
M14
140
(103)
200
(148)
M16
225
(166)
310
(229)
M20
435 (321)
610
(450)
M24
750
(553)
1050
(774)
M30
1495
(1103)
2100
(1550)
M36
2600 (1917)
3675
(2710)
SAE-2
SAE-5
SAE-8
~!00©
00
Torque figures indicated above are valid for non-greased
or
non-oiled threads and heads unless other-
wise specified. Therefore,
do
not grease
or
oil bolts
or
capscrews unless otherwise specified in this
manual. When using locking elements, increase torque values
by
5%.
Torque value for bolts and capscrews are identified by their head markings.
13
