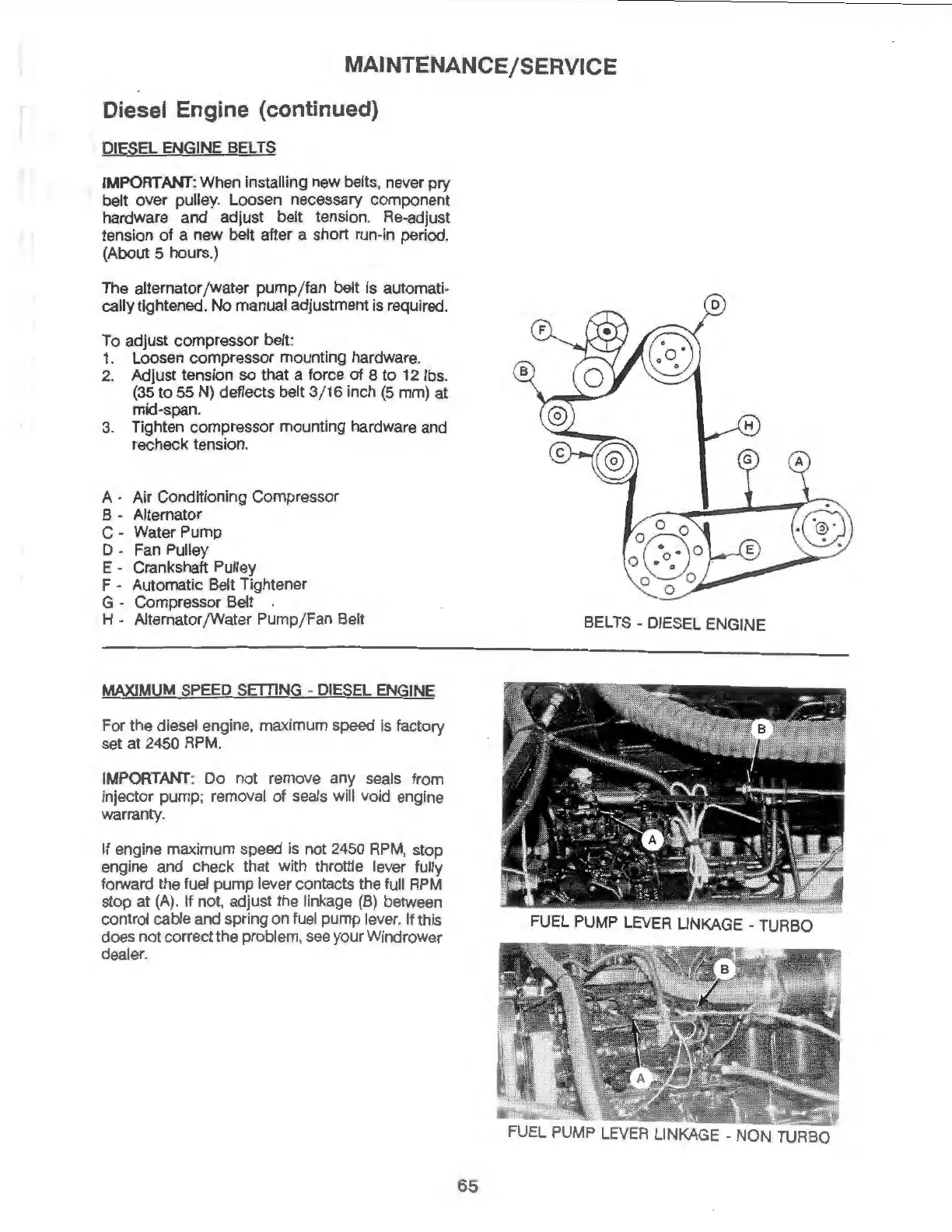

MAINTENANCE/ SERVICE
Diesel Engine (continued)
DIESEL ENGINE BELTS
IMPORTANT
: When installing
new
belts, never
pry
belt
over
pulley. Loosen necessary
component
hardware
and
adjust
belt
tension. Re-adjust
tension
of
a
new
belt
after a
short
run-in period.
(About 5
hours
.)
The
alternator/water
pump/fan
belt is automati-
cally
tightened.
No
manual adjustment is required.
To
adjust
compressor
belt:
1. Loosen
compressor
mounting hardware.
2. Adjust tension
so
that
a force
of
8
to
12
lbs
.
(35
to
55
N) deflects belt 3/
16
inch (5 mm) at
mid-span.
3. Tighten
compressor
mounting hardware
and
recheck
tension.
A - Air Conditioning Compressor
B - Alternator
C - Water
Pump
D - Fan Pulley
E - Crankshaft Pulley
F - Automatic Belt Tightener
G -
Compressor
Belt .
H - Alternator
;wat
er
Pump/Fan
Belt
MAXIMUM
S
PE
ED SETTING - DIESEL ENGINE
For
the
diesel engine, maximum speed is factory
set
at
2450 RPM.
I
MPORTANT
: Do
not
remove
any
seals from
i
nj
ector
pump; removal
of
seals will
void
engine
warranty.
If engine maximum speed is
not
2450 RPM,
stop
engine and
check
that
with throttle lever fully
forward the fuel
pump
lever contacts
the
full RPM
stop
at
(A).
If
not, adjust the linkage (B) between
control cable and spring
on
fuel
pump
lever.
If
this
does
not
correct
the
problem, see
your
Wind rower
dealer.
BELTS - DIESEL ENGINE
<,:.,~
-
FUEL PUMP LEVER
LI
NKAGE - TURBO
FUEL PUMP LEVER LINKAGE -
NON
TURBO
65
