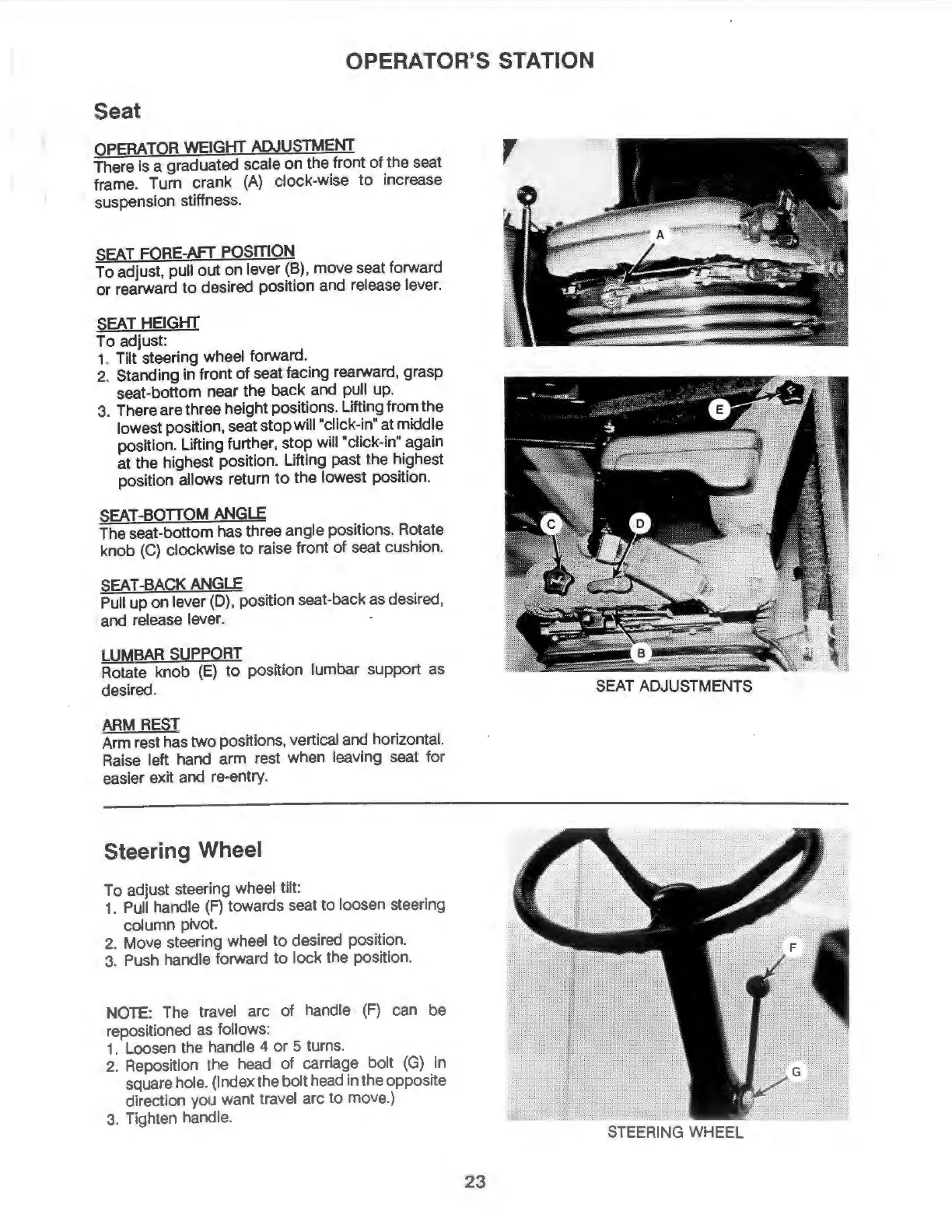

OPERATOR'S STATION
Seat
OPERATOR
WEIGHT
ADJUSTMENT
There
is
a graduated scale
on
the
front
of
the seat
frame. Turn crank
(A)
clock-wise
to
increase
suspension stiffness.
SEAT
FORE-AFT
POSmON
To
adjust, pull
out
on
lever (B), move seat forward
or
rearward
to
desired position and release lever.
SEAT HEIGHT
To
adjust:
1. Tilt steering wheel forward.
2.
Standing in front
of
seat facing rearward, grasp
seat-bottom near the
back
and pull
up
.
3. There are three height positions. Lifting from the
lowest position, seat
stop
will "click-in" at middle
position. Lifting further,
stop
will •click-in" again
at
the
highest position. Lifting past the highest
position allows return
to
the lowest position.
SEAT-BOTTOM
ANGLE
The seat-bottom has three angle positions. Rotate
knob
(C)
clockwise
to
raise front
of
seat cushion.
SEAT-BACK
ANGLE
Pull
up
on
lever (D), position seat-back as desired,
and release lever.
L
UMBAR
SUPPORT
Rotate knob
(E)
to
position lumbar support as
desired.
ARM REST
Arm rest has
two
positions, vertical and horizontal.
Raise left hand arm rest when leaving seat
for
easier exit and re-entry.
Steering Wheel
To adjust steering wheel tilt:
1.
Pull handle
(F)
towards seat
to
loosen steering
column pivot.
2.
Move steering wheel
to
desired position.
3. Push handle forward
to
lock
the position.
NOTE:
The travel arc
of
handle
(F)
can be
repositioned as follows:
1. Loosen the handle 4
or
5 turns.
2. Reposition the head
of
carriage bolt
(G)
in
square hole. (Index the bolt head in the opposite
direction you want travel arc
to
move.)
3. Tighten handle.
23
SEAT ADJUSTMENTS
STEERING WHEEL
