MacDon 9000 - Carburetor Idle Mixture Adjustment

MAINTENANCE/SERVICE
Gasoline Engine (continued)

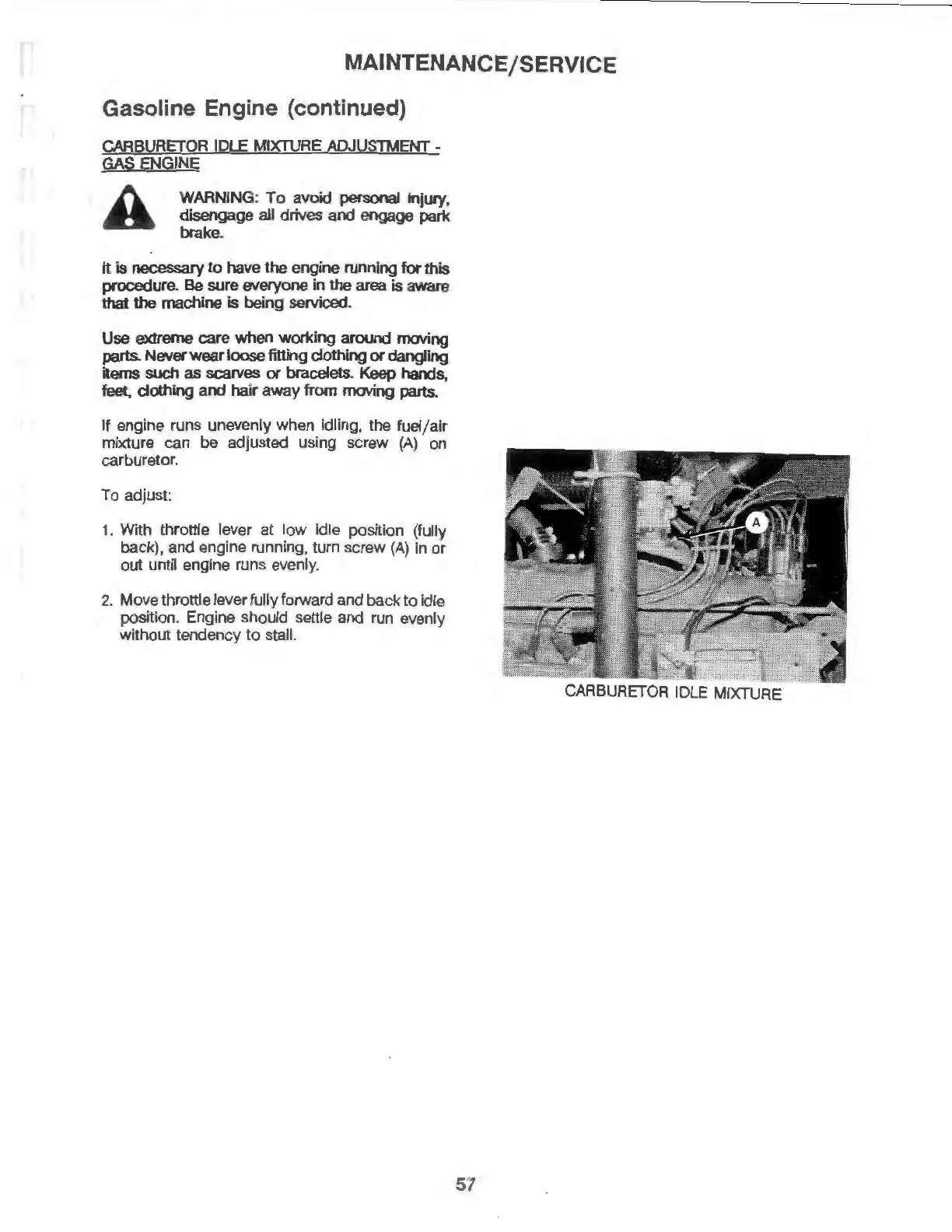

CARBURETOR 1DLE MIXTURE ADJUSTMENT -
GAS ENGINE
A
WARNING : To avoid personal Injury,
disengage all drives and engage park
brake.
It is necessary to have the engine running for this
procedure. Be sure everyone in the area is aware
that the machine is being serviced.
Use extreme care when working around moving
parts. Never wear loose fitting clothing or dangling
items such as scarves or bracaets. Keep hands,
feet, clothing and hair away from moving parts.
If engine runs unevenly when Idling, the fuel/air
mixture can be adjusted using screw (A) on
carburetor.
To adjust:
1. With throttle lever at low idle position (fully
back), and engine running, turn screw (A) in
or
out until engine runs evenly.
2. Move throttle lever fully forward and
back to Idle
position. Engine should settle and run evenly
without tendency
to stall.
57
