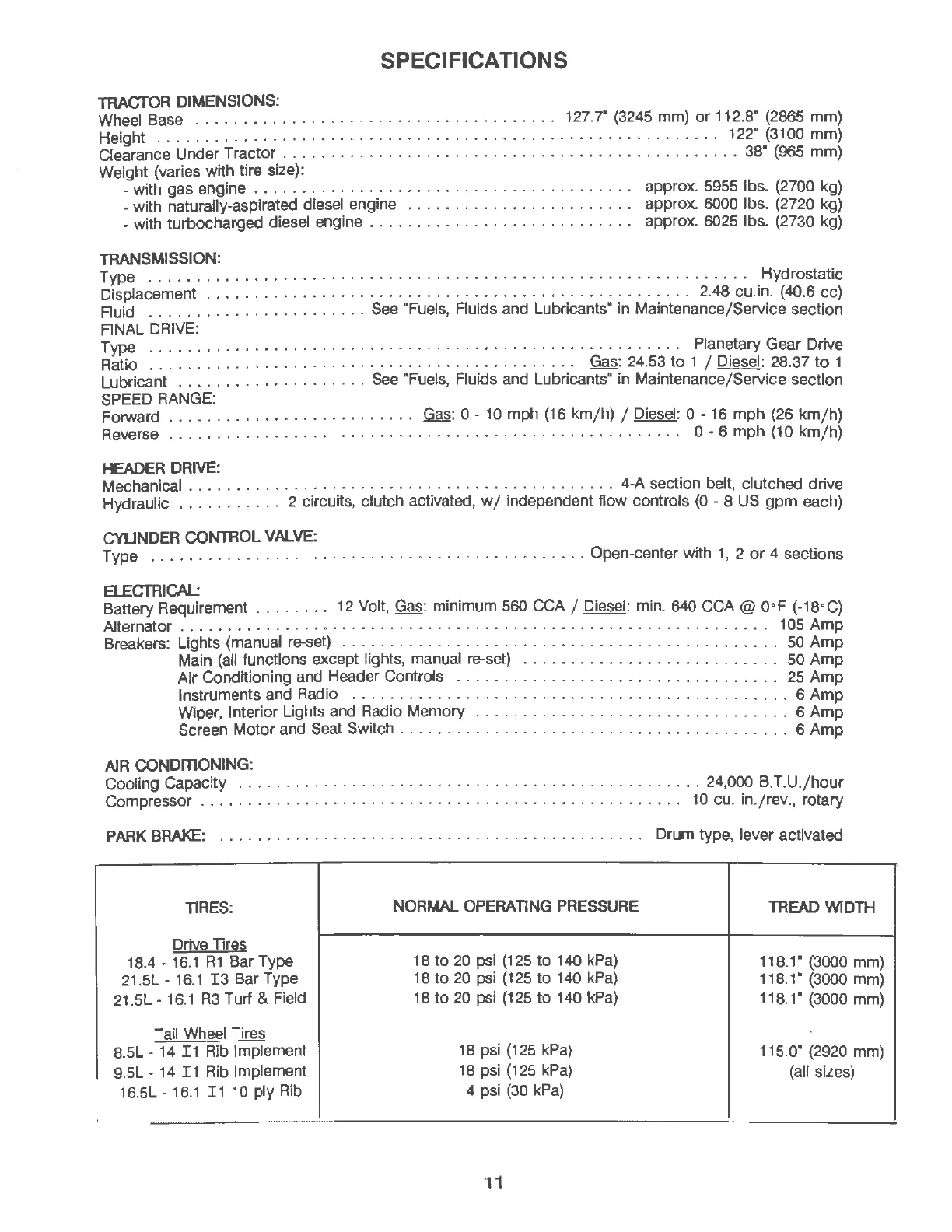

SPECIFICATIONS
TRACTOR DIMENSIONS :
Wheel Base ........... ............ ............... 127.r (3245 mm) or 112 .8 " (2865 mm)
Height .
.... ................ . . . ............... ... ............ .. ... 122" (3100 mm)
Clearance Under Tractor .
................... . ...... ... .................. 38" (965 mm)
Weigh~ (varies wit~ tire size):
- with gas engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 5955 lbs. (2700 kg)
-
with naturally-aspirated diesel engine . . . . . . . . . . . . . . . . . . . . . . . . approx . 6000 lbs . (2720 kg)
'
- with turbocharged diesel engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 6025 lbs . (2730 kg)
TRANSMISSION :
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydrostatic
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.
48 cu .in. (40.6 cc)
Fluid
.. . ............. .. ..... See "Fuels, Fluids and Lubricants" in Maintenance/Service section
FINAL DRIVE:
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Planetary Gear Drive
Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gas: 24.53
to 1 / Diesel: 28.37 to 1
Lubricant
.. ... . ...... . . . ..... See "Fuels, Fluids and Lubricants" in Maintenance/Service section
SPEED
RANGE :
Forward . .. ....................... ~ : 0 - 10 mph (16 km/h)/ Diesel: 0 - 16 mph (26 km/h)
Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 6 mph (1 0 km/h)
HEADER DRIVE :
Mechanical ........... .. . . ......... . ........... . ... . .. . . 4-A section belt, clutched drive
Hydraulic . . . . . . . . . . . 2 circuits, clutch activated, w / independent flow controls (0 - 8 US gpm each)
CYLINDER CONTROL VALVE :
T ype ........ .. . . ....... ........... . .... . .. ........ Ope n-c enter with 1, 2 or 4 sections
ELECTRICAL:
Battery Requirement ........ 12 Volt, Gas: minimum 560 CCA / Diesel: min. 640 CCA@ 0• F (-18•C)
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Amp
Breakers: Lights (manual re-set) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Amp
Main (all functions except lights, manual re-set) . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Amp
Air Conditioning and Header Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Amp
Instruments and Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Amp
Wiper, Interior Lights and Radio Mem ory ................................. 6 Amp
Sc reen Moto r and Seat Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 A mp
AIR CONDmONING:
Cooling Capacity . .......... . . . . ......... . ...... . .. .. ...... ....... 24,000 B.T.U./ hou r
Compressor
..... . .... . ...... ................... . ........ ...... 10 cu. in./rev., r ota ry
P ARK BRAKE : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dr um ty pe , lever ac t iv ated
TIRES:
NORMAL OPERATING PRESSURE
TREAD WI DTH
Drive Tires
18.4 - 16.1
R1 B ar Type
18
to 20 psi (125 to 140 kPa)
118.1" (3000 mm)
21.SL -
16 .1 I3 Bar Type
18
to 20 psi (125 to 140 kPa)
118.1" (3000 mm)
21 . SL - 16.1 R3 Turf & Field
18
to 20 psi (125 to 140 kPa)
118.1" (3000 mm)
Tail Wheel Tires
8.SL - 14
I1 Rib Implement
18 psi (125 kPa)
115.0" (2920 mm)
9.SL - 14
I1 Rib Implement
18 psi (125 kPa)
(all sizes)
16.
SL - 16.1 I1 10 ply Rib
4 psi (30 kPa)
