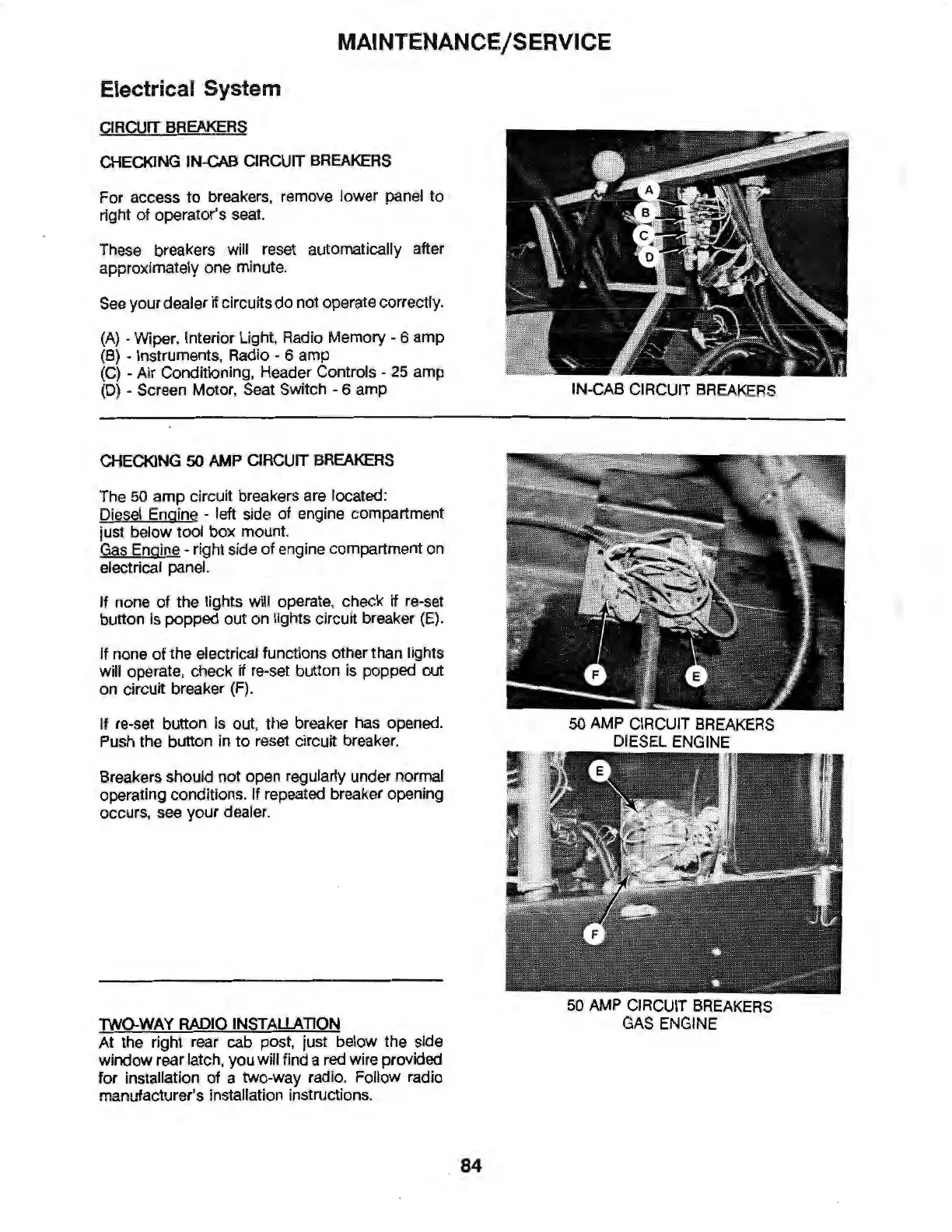

MAINTENANCE/SERVICE
Electrical System
CIRCUIT
BREAKERS
CHECKING IN-CAB CIRCUIT
BREAKERS
For
ac
cess
to
breakers, remove lower panel
to
right
of
operator's seat.
These breakers will reset automatically after
approximately one minute.
See your dealer if circuits
do
not operate correctly.
(A)
- Wiper, Interior Light, Radio Memory - 6 amp
(B)
- Instruments, Radio - 6
amp
(C)
- Air Conditioning, Header Controls -
25
amp
(D)
- Screen Motor, Seat Switch - 6 amp
CHECKING
50
AMP
ORCUIT
BREAKERS
The
50
amp
circuit breakers are located:
Diesel Engine - left side
of
engine compartment
just below tool box mount.
Gas Engine - right side
of
engine compartment
on
electrical panel.
If none
of
the lights will operate, check if re-set
button is popped out on lights circuit breaker (E).
If none
of
the
electrical functions other than lights
will operate, check if re-set button is popped out
on circuit breaker
(F)
.
If re-set button is out, the breaker has opened.
Push the button in
to
reset circuit breaker.
Breakers should not open regularly under normal
operating conditions. If repeated breaker opening
occurs, see your dealer.
TWO-WAY RADIO INSTAUATION
At the right rear cab post, just below the side
window rear latch, you will find a red wire provided
for installation
of
a two-way radio. Follow radio
manufacturer's installation instructions.
84
IN-CAB CIRCUIT
BREAKERS
50 AMP CIRCUIT
BREAKERS
DIESEL ENGINE
!
i
50
AMP CIRCUIT
BREAKERS
GAS
ENGINE
