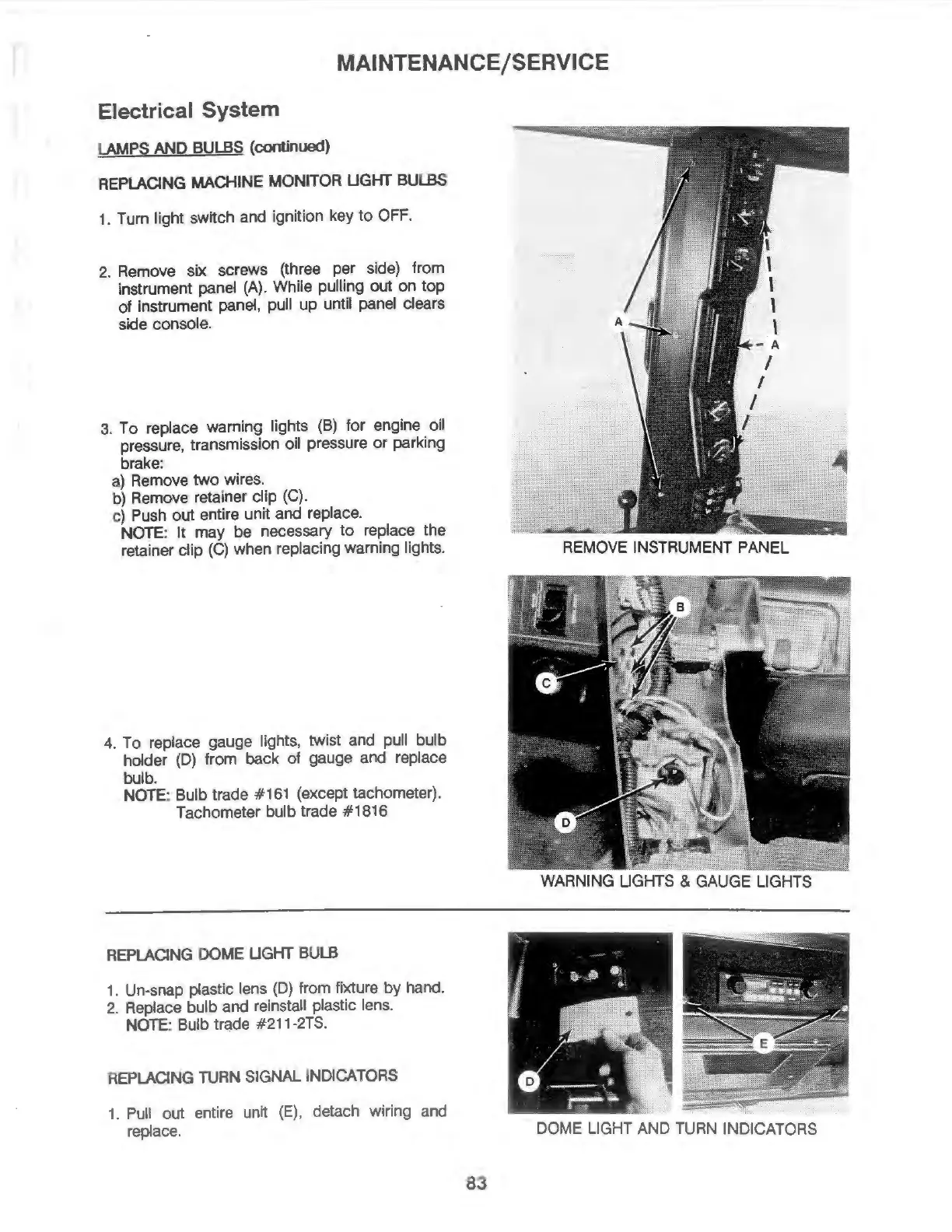

MAINTENANCE/SERVICE
Electrical System
LAMPS
AND
BULBS
(continued)
REPLAONG
MACHINE
MONITOR
LIGHT
BULBS
1.
Tum light switch and ignition key
to
OFF.
2.
Remove six screws (three per side) from
Instrument panel
(A).
While pulling out on
top
of
instrument panel, pull
up
until panel clears
side console.
3.
To
replace warning lights (B)
for
engine oil
pressure, transmission oil pressure
or
parking
brake:
a) Remove
two
wires.
b) Remove retainer clip
(C).
c) Push out entire unit and replace.
NOTE:
It may
be
necessary
to
replace the
retainer clip (C) when replacing warning lights.
4.
To
replace gauge lights, twist and pull bulb
holder
(D)
from back
of
gauge and replace
bulb.
NOTE:
Bulb trade #161 (except tachometer).
Tachometer bulb trade #1816
REPLAONG
DOME
LIGHT
BULB
1.
Un-snap plastic lens
(D)
from fixture
by
hand.
2. Replace bulb and reinstall plastic lens.
NOTE:
Bulb
t~de
#211-2TS.
REPlAONG
TURN
SIGNAL
INDICATORS
1. Pull out entire unit
(E)
, detach wiring and
replace.
REMOVE INS
TR
UMENT
PANEL
WARNING LIGHTS & GAUGE LIGHTS
DOME LIGHT AND TURN INDICATORS
