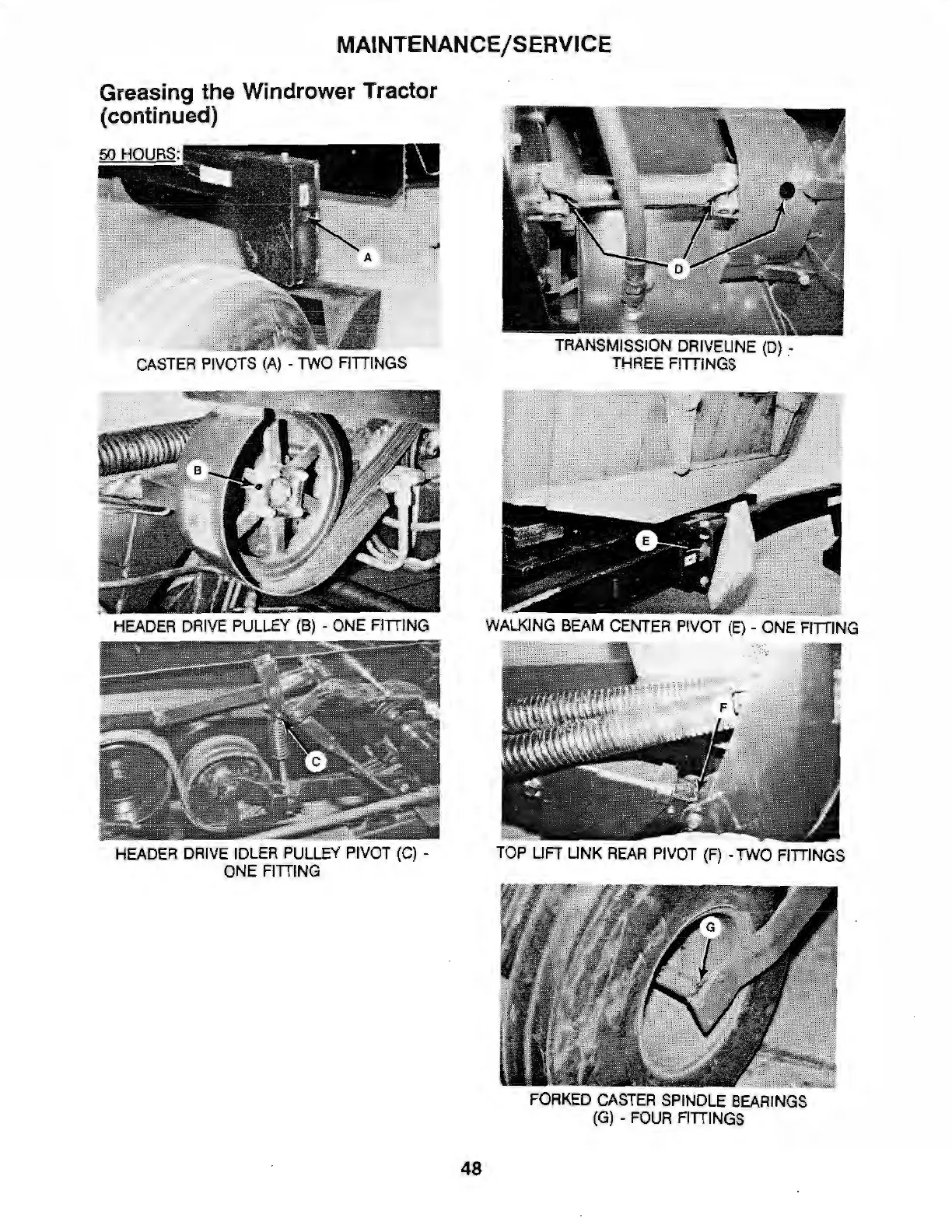

MAINTENANCE/SERVICE
Greasing the Windrower Tractor
(continued)
CASTER PIVOTS (A) - TWO FITTINGS
HEADER DRIVE PUL LEY (8) - ONE FITTING
HEADER DRIVE IDLER PULLEY PIVOT (C) -
ONE FITTING
48
TRANSMISSION DRIVEUNE (D) -
THREE FITTINGS
WALKING BEAM CENTER PIVOT ( E) - ONE FITTING
rzy·
TOP LIFT LINK REAR PIVOT (F) - TWO FITTINGS
.L
FORKED CASTER SPINDLE BEARINGS
(G) - FOUR FITTINGS
