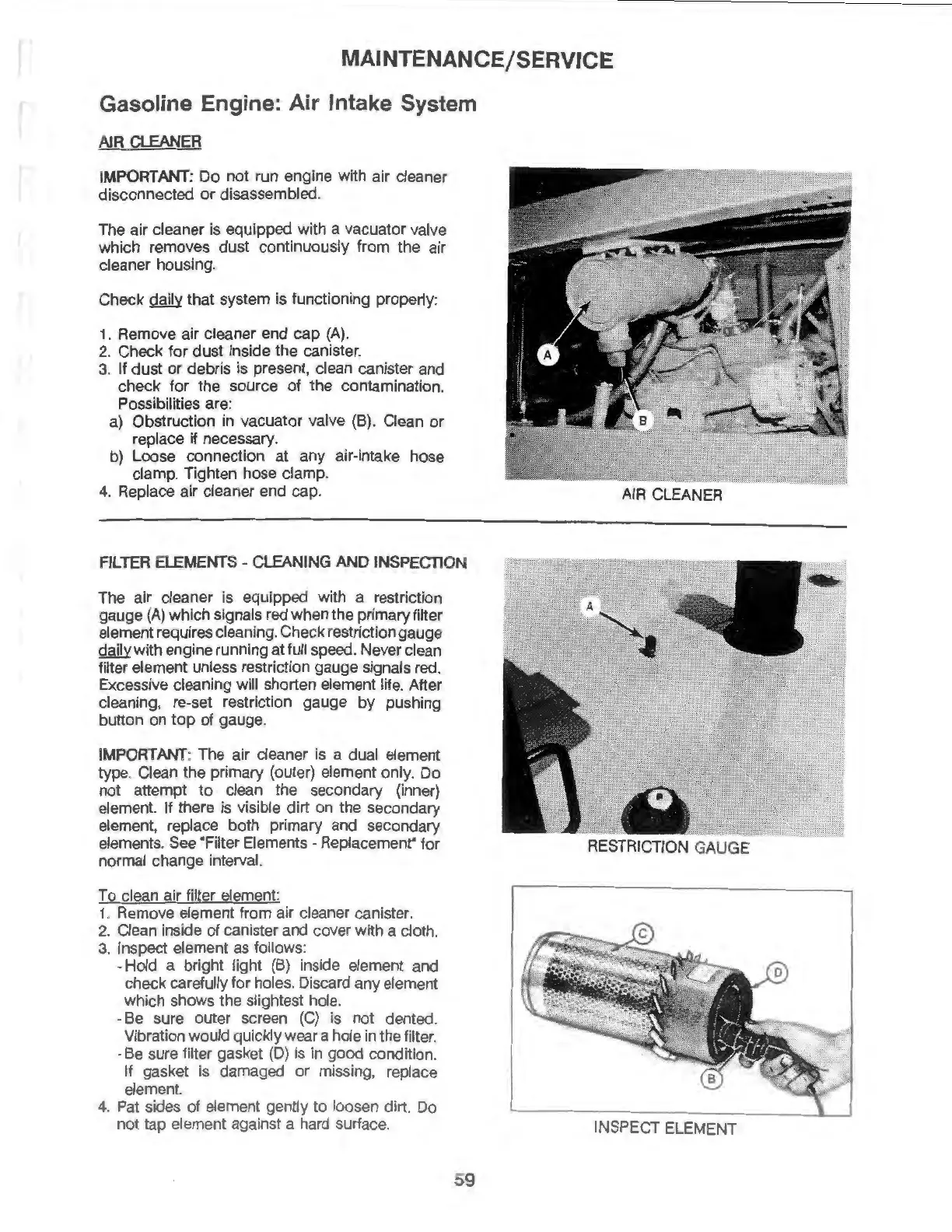

MAINTENANCE/SERVICE
Gasoline
Engine: Air Intake System
AIR
CLEANER
IMPORTANT:
Do
not run engine with air cleaner
disconnected
or
disassembled.
The air cleaner is equipped with a vacuator valve
which removes dust continuously from the air
cleaner housing.
Check
~
that system is functioning
proper1y:
1. Remove air cleaner end cap
(A).
2.
Check for dust inside the canister.
3. If
dust
or
debris is present, clean canister and
check
for
the source
of
the contamination.
Possibilities are:
a) Obstruction in vacuator valve (B). Clean
or
replace if necessary.
b) Loose connection at any air-intake hose
clamp. Tighten hose clamp.
4.
Replace air cleaner end cap.
ALTER
ELEMENTS
-
CLEANING
AND
INSPECTION
The air cleaner is equipped with a restriction
gauge
(A)
which signals red when the primary filter
element requires cleaning. Check restriction gauge
~
with engine running
at
full speed. Never clean
filter element unless restriction gauge signals red.
Excessive cleaning will shorten element life. After
cleaning, re-set restriction gauge
by
pushing
button on
top
of
gauge.
IMPORTANT
: The air cleaner is a dual element
type. Clean the primary (outer) element only. Do
not attempt
to
clean the secondary (inner)
element. If there is visible dirt on the secondary
element, replace both primary and secondary
elements. See "Filter Elements - Replacement" for
normal change interval.
To clean air filter element:
1.
Remove element from air cleaner canister.
2.
Clean inside
of
canister and cover with a cloth.
3.
Inspect element as follows:
- Hold a bright light (8) inside element and
check carefully for holes. Discard any element
which shows the slightest hole.
-Be sure outer screen
(C)
is not dented.
Vibration would quickly wear a hole
in
the filter.
-Be sure filter gasket
(D)
is
in
good condition.
If gasket is damaged or missing, replace
element.
4.
Pat sides of element gently
to
loosen dirt. Do
not tap element against a hard surface.
59
AIR
CLEANER
RESTRICTION GAUGE
INSPECT ELEMENT
