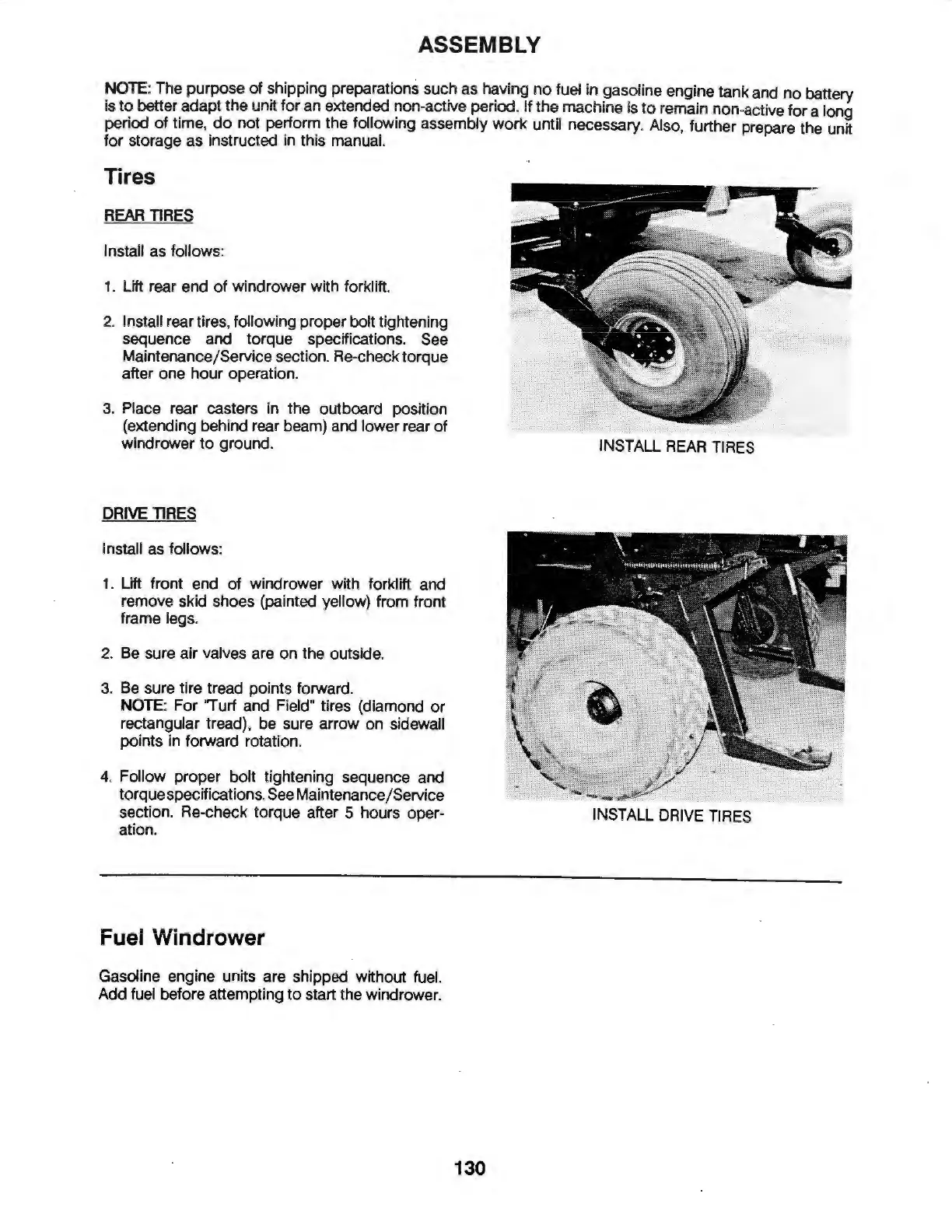

ASSEMBLY
NOTE
: The purpose
of
shipping preparations such
as
having
no
fuel in gasoline engine
tank
and
no
battery
is
to
better
adapt
the
unit
for
an extended non-active period.
If
the
mach
ine is to remain
non
-active
fo
r a long
period
of
time
,
do
not
perform
the
followi
ng
assembly
work
until necessary. Also, further prepare the unit
for
storage
as
instructed in this manual.
Tires
REAR
TIRES
Install as follows:
1. Lift rear end
of
windrower with forklift.
2. Install rear tires, followi
ng
proper bolt tightening
sequence and torque specifications. See
Maintenance/Service section. Re-check torque
after one
hour
operation.
3. Place rear casters in
the
outboard positi
on
(extending behind rear beam) and lower rear
of
windrower
to
ground.
DRIVE
TIRES
Install as follows:
1. Lift front end
of
windrower with forklift and
remove skid shoes (painted yellow)
from
front
frame legs.
2. Be sure
air
valves are
on
the
outside.
3. Be sure tire tread points forward.
NOTE
:
For
"Turf
and
Field" tires (diamond
or
rectangular tread), be sure
arrow
on
sidewall
points in forward rotation.
4. Follow proper bolt tightening sequence
and
torque specifications. See Maintenance/Service
section. Re-check torque after 5 hours oper-
ation.
Fuel Windrower
Gasoline engine units are shipped without fuel.
Add fuel before attempting
to
start the windrower.
INSTALL REAR TIRES
INSTALL DRIVE TIRES
130
