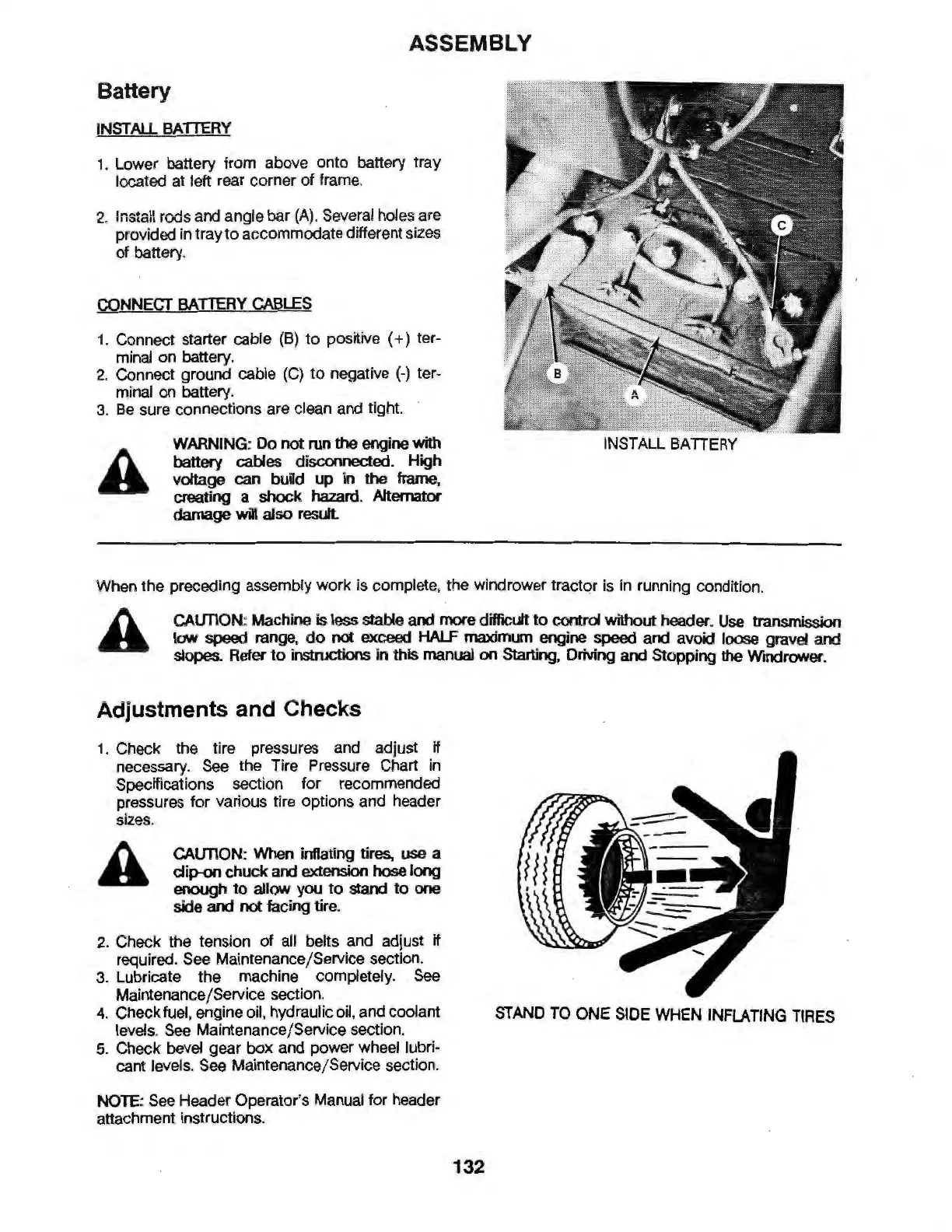

ASSEMBLY
Battery
INSTAU..
BATTERY
1. Lower battery
from
above onto battery
tray
located
at
left rear corner
of
frame.
2. Install rods and angle
bar
(A). Several holes are
provided
in
tray
to
accommodate
different sizes
of
battery.
CONNECT
BATTERY
CABLES
1.
Connect starter cable (8)
to
positive (
+)
ter-
minal
on
battery.
2. Connect
ground
cable
(C)
to
negative (-) ter-
minal on battery.
3. Be sure connections
are
clean and tight.
A
WARNING:
Do
not
run
the
engine
with
battery
cables
disconnected. High
voltage can build
up
in the frame,
creating a shock hazard. Alternator
damage
will
also
result.
INSTALL BATTERY
When the preceding assembly
work
is complete,
the
windrower
tractqr
is in running condition.
A
CAUTION: Machine is less stable
and
more
difficut
to
contra
without
header. Use transmission
low
speed
range,
do
not exceed
HALF
maximum
engine
speed
and
avoid loose gravel and
slopes. Refer
to
instructions
in
this manual
on
Starting,
DrMng
and
Stopping
the
Windrower
.
Adjustments
and
Checks
1.
Check
the
tire pressures and adjust if
necessary. See
the
Tire Pressure Chart in
Specifications section
for
recommended
pressures
for
various tire options and header
sizes.
A
CAUTION: When inflating tires, use a
dip-on
chuck
and
extension
hose
long
enough
to
allow
you
to
stand
to
one
side
and
not facing
tire.
2.
Check
the tension
of
all belts and adjust if
required. See Maintenance/ Service section.
3. Lubricate
the
machine completely. See
Maintenance/Service section.
4.
Check
fuel, engine oil, hydraulic oil, and coolant
levels. See Maintenance/Service section.
5.
Check
bevel
gear
box
and power wheel lubri-
cant
levels. See Maintenance/ Service section.
NOTE:
See Header Operator's Manual
for
header
attachment instructions.
