MacDon DWA - Page 31

215626 21 Revision A

$
$

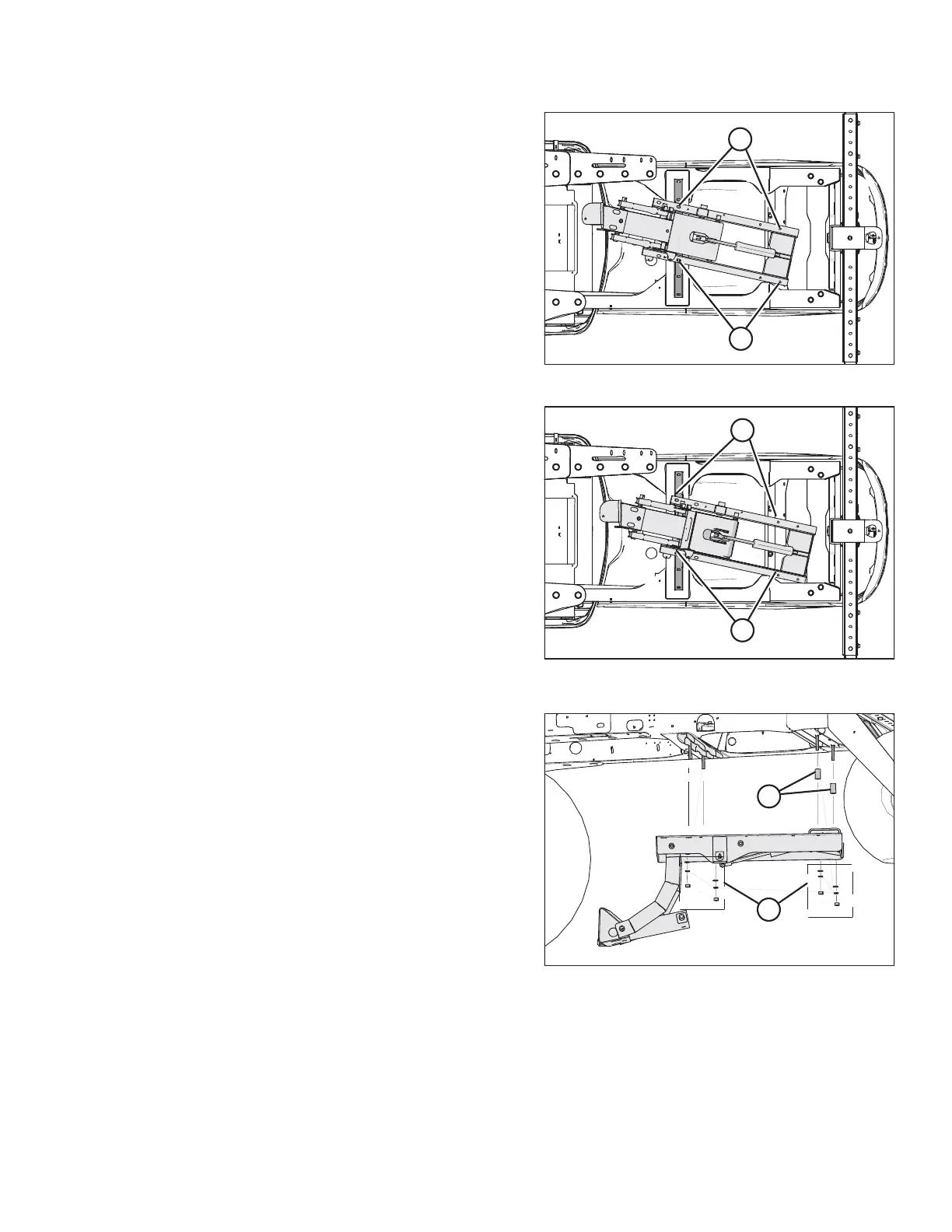

Figure 2.21: Linkage Forward
9. Align the DWA linkage with the four bolts in the windrower
frame according to the type of header you will be using:
• For an R Series header: Mount the linkage in the most
forward position (indicated by [A]).
• For an A Series or D Series header: Mount the linkage
in the most rearward position (indicated by [B]).

%
%
Figure 2.22: Linkage Rearward

$
%
Figure 2.23: Linkage Forward
10. Position two 1 1/2 in. OD x 1 in. ID x 2 3/4 in. long
spacers (A) on the rear bolts.
11. Attach the linkage with four flat washers, lock washers, and
nuts (B).
SETUP INSTRUCTIONS
