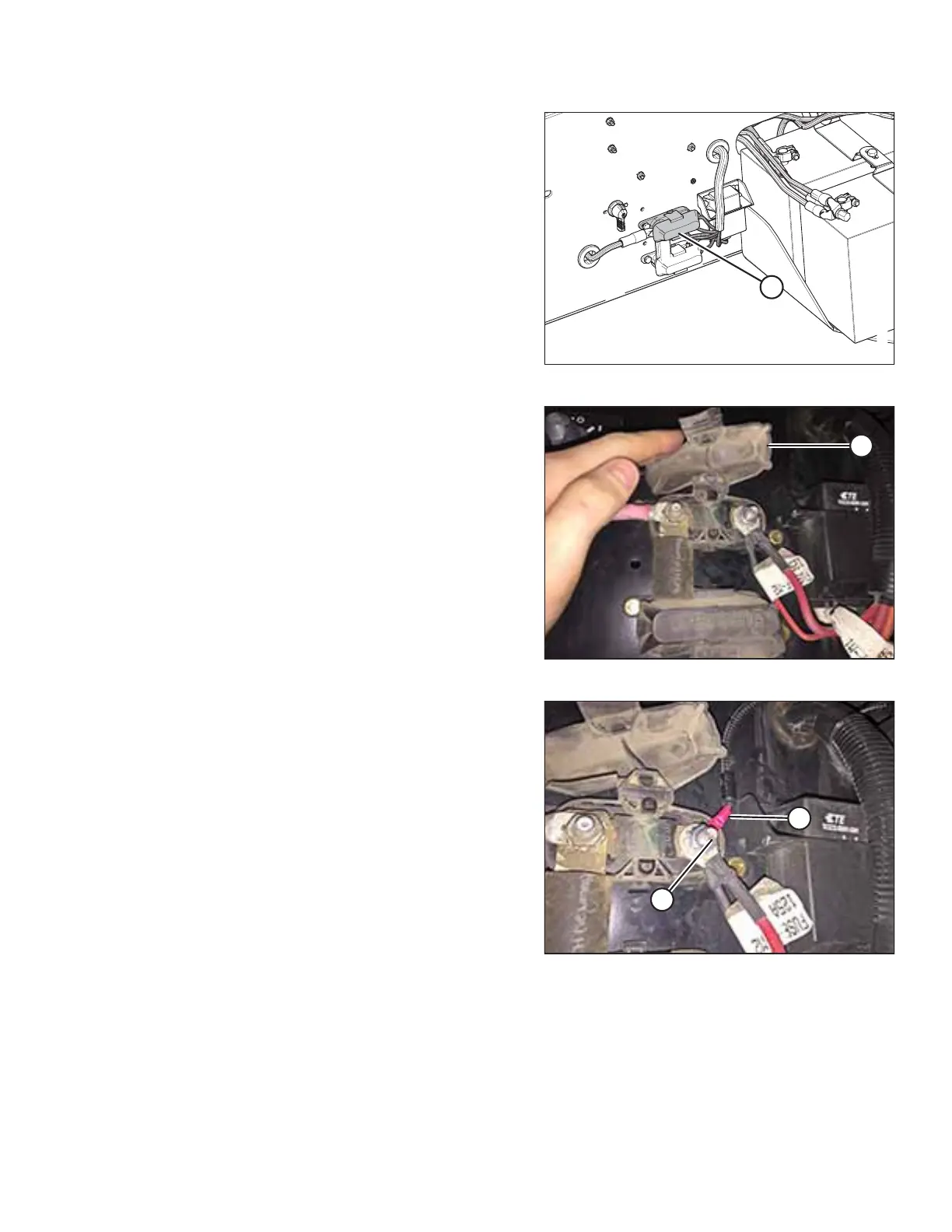

Figure 2.78: F1 Fuse Holder
9. Locate F-M1 fuse holder (A), next to the batteries on the
right side of the windrower.
Figure 2.79: F-M1 Fuse Holder Cover Opened
10. Lift cover (A) on the F-M1 fuse.
Figure 2.80: T74 Ring Terminal Secure to F-M1 Fuse
11. Remove the nut on stud (B) on the F-M1 fuse. Attach T74
ring terminal (A) to the stud, oriented as shown in the
photo. Reinstall the nut and tighten it.
12. Replace the cover on the F-M1 fuse.
13. Turn the battery disconnect switch to the ON (I) position.
SETUP INSTRUCTIONS
