215626 47 Revision A

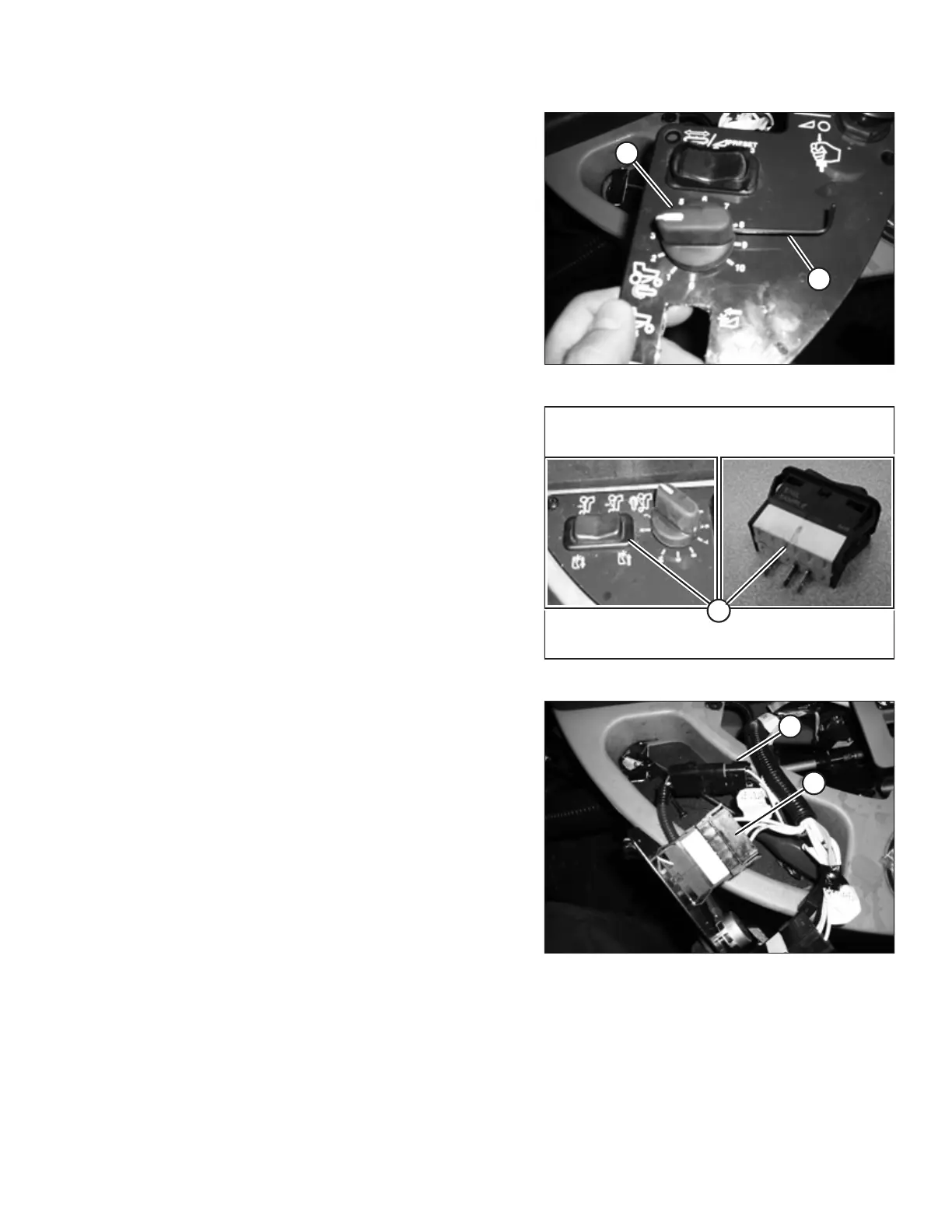

Figure 2.84: Console Control Plate
17. Install knob (A) on the rotary switch and tighten the set
screw in the knob with hex key (B).
NOTE:
The knob may not be exactly as shown.
Figure 2.85: DWA Switch
18. Install rocker switch (A) in the cover. The side with the
prongs should be next to the operator’s seat.
Figure 2.86: DWA Switch
19. Install the rocker switch into plug (A) and install the rotary
switch into plug (B). These plugs come prewired into the
windrower console.
SETUP INSTRUCTIONS
