MacDon DWA - 4.1.2 Adjusting Draper Tracking

215626 72 Revision A
If the draper is tracking incorrectly, use the following table to adjust the rollers:
Table 4.1 Draper Tracking Adjustments
Tracking
At Location
Adjustment Method
Rearward
Drive roller
Move roller (C) outward Tighten nut (A)
Forward
Move roller (C) inward Loosen nut (A)
Rearward
Idler roller
Move roller (D) outward Tighten nut (B)
Forward
Move roller (D) inward Loosen nut (B)

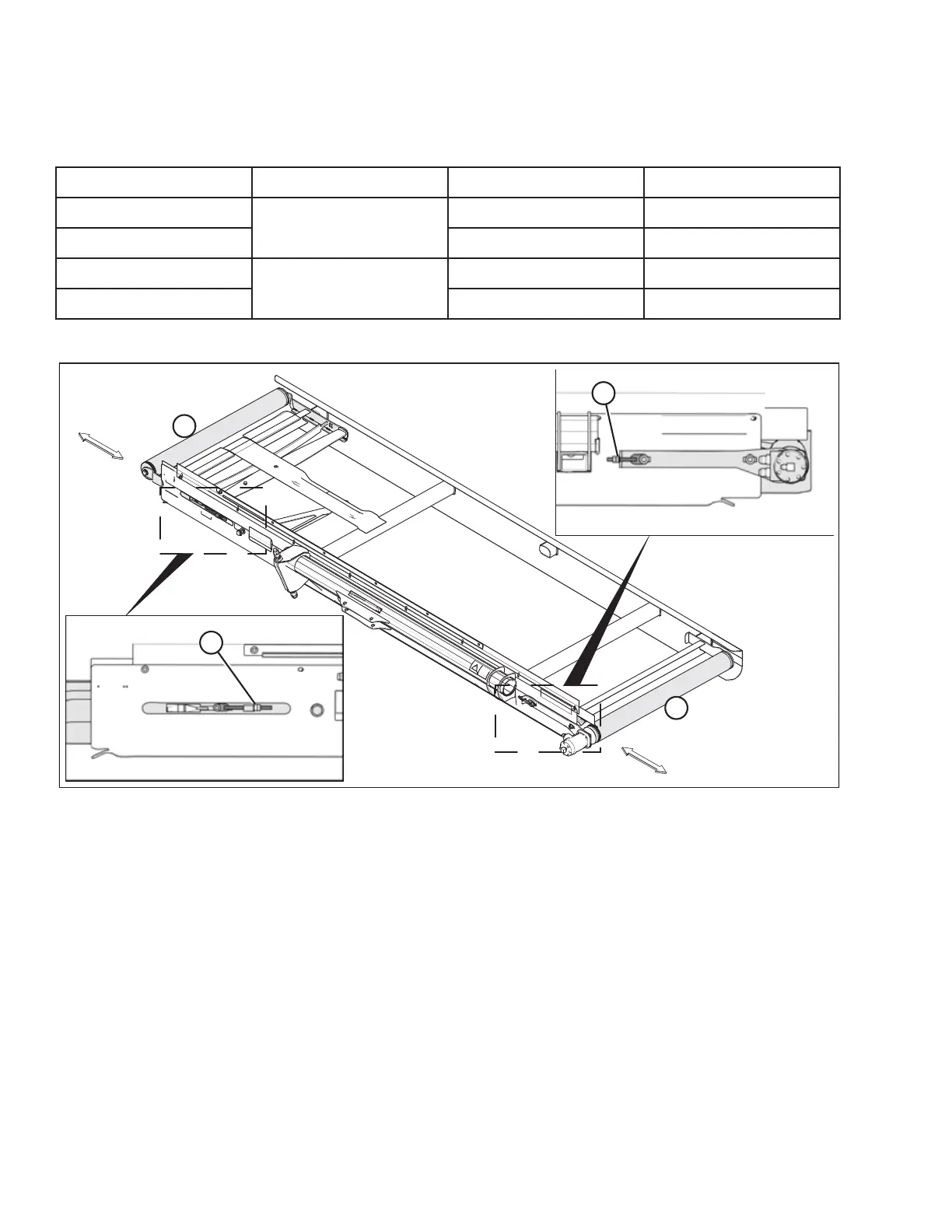

Figure 4.2: Draper Tracking

%
$
'
&
