215626 73 Revision A
To adjust the tracking on the idler roller side:
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, stop engine, remove key, and engage
safety pin before going under machine for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Ensure that the deck safety pin is engaged.

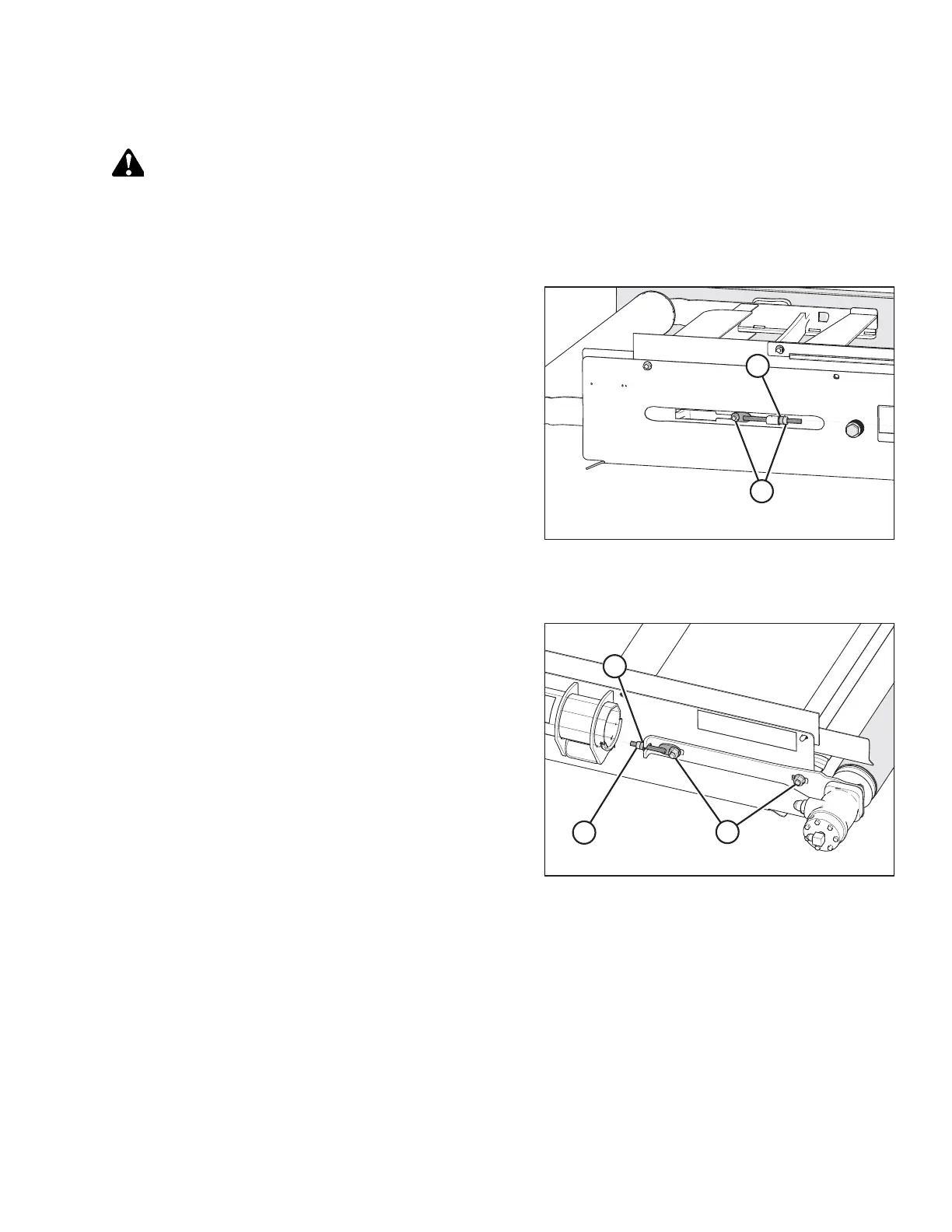

Figure 4.3: Tracking Adjustment: Idler Roller
3. Loosen two nuts (A).
4. Adjust nut (B) according to Table 4.1, page 72.
5. Secure the idler roller by tightening two nuts (A).
6. After adjusting draper tracking, readjust the draper tension.
Refer to 4.1.1 Adjusting Draper Tension, page 71 for
instructions.
To adjust the tracking on the drive roller side:
Figure 4.4: Tracking Adjustment: Drive Roller
7. Loosen three locking nuts (B).
8. Adjust nut (A) according to Table 4.1, page 72 above.
9. Tighten three nuts (B) to secure the drive roller.
10. After adjusting the draper tracking, adjust the draper
tension. Refer to 4.1.1 Adjusting Draper Tension, page 71
for instructions.
MAINTENANCE AND SERVICING
