MADVAC PS300 - A67691 - Kubota Radiator

2
1
17
13
15
16
14
13
3
5
8
10
11
7
11
10
9
4
5
6
12
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 66234 RADIATOR KUBOTA MODEL 482 1
2 66238 RADIATOR CAP 1
3 66239 FAN SHROUD 1
4 67778 RADIATOR HOSE (UPPER) 1
5 67780 RADIATOR HOSE CLAMP (WATER PUMP SIDE) 2
6 67779 90° FITING 2
7 65508 RADIATOR CROSS MEMBER 1
8 (COMES WITH 66236) BOLT HEX HEAD Ø M10 - 1.25 X 60 m.m. Lg. ( RADIATOR KIT) 2
9 (COMES WITH 66236) HAIR PIN ( RADIATOR KIT) 2
10 66237 RADIATOR RUBBER MOUNT WASHER( RADIATOR KIT) 4
11 66236 RADIATOR RUPPER MOUNT 4
12 66517 RADIATOR HOSE (LOWER) 1
13 90756 WASHER Ø M6 LARGE SIZE 8
14 90750 LOCK WASHER Ø M5 4
15 90703 BOLT HEX. HEAD Ø M6 x 1.0 x 16 mm. Lg. 4
16 90734 HEX NUT Ø M6 - 1.0 4
17 66240 FAN GUARD 1

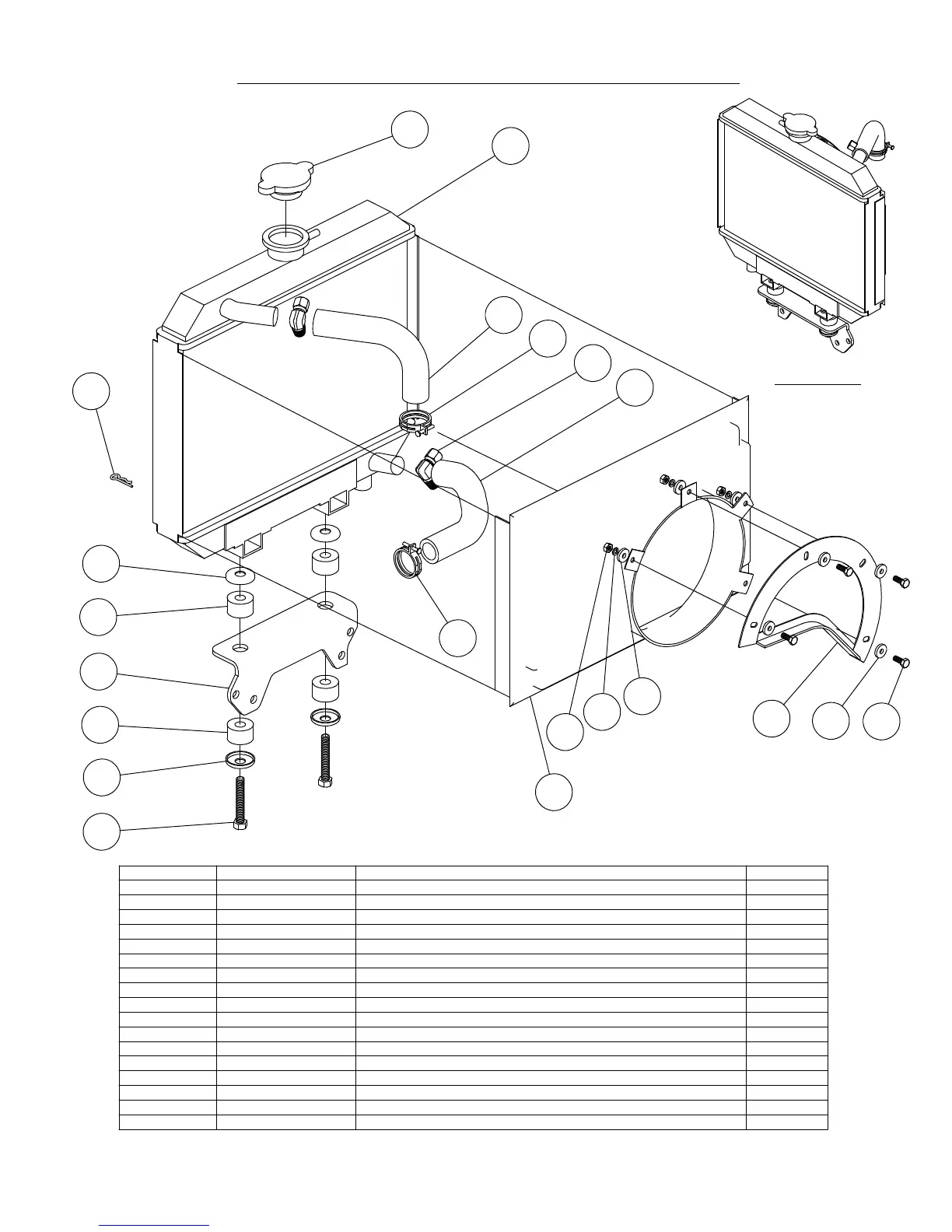

ASSEMBLY VIEW
A67691 - KUBOTA RADIATOR
FIBERGLASS BODY & FIXATION BRACKETS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: A
