MADVAC PS300 - A67524 - Right Engine Cover

6
7
8
5
4
2
3
10
9
5
1
5
11
Optional Item
can be ordered as a replacement
part or in the option kit (K67022)
Silent Pack Sound Proofing.
Optional Item
can be ordered as a replacement
part or in the option kit (K67022)
Silent Pack Sound Proofing.
14
13
12
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67210 ENGINE COVER RIGHT 1
2 65543 BODY SUPPORT 2
3 66007 HINGE RIGHT HAND 2
4 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREADS) 2
5 90004 WASHER Ø 1/4" 10
6 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 2
7 90023 LOCK WASHER Ø 5/16" 2
8 90001 WASHER Ø 5/16" 2
9 90020 LOCK NUT Ø 1/4" - 20 UNC. 2
10 66811 RETAINING CLIP 2
11 90027 LOCK NUT # 10 - 24 UNC. 6
12 66306 RIGHT ENGINE COVER NOISE BARRIER # 1 1
13 66307 RIGHT ENGINE COVER NOISE BARRIER # 2 1
14 66273 STORAGE POCKET 1

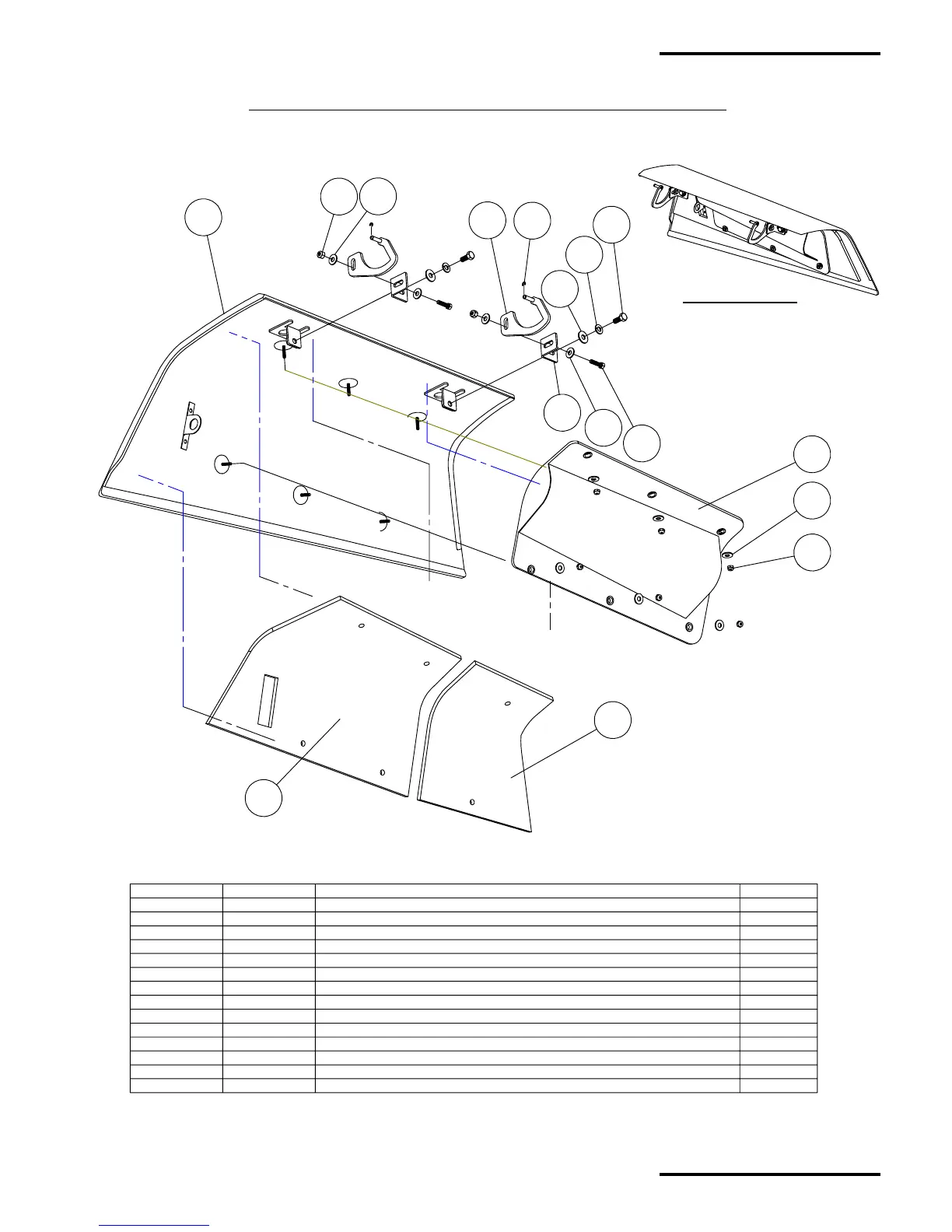

ASSEMBLY VIEW
A67524 - RIGHT ENGINE COVER
FIBERGLASS BODY & FIXATION BRACKETS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
BO-8
Body Section
