MADVAC PS300 - A67575 - Active Stabilizer Bar

12
11
13
6
1
8
7
10
4
2
3
17
5
4
5
4
5
16
9
17324 and up.
Previous models
can be updated
by a "Bolt-On"
retrofit fifthwheel.
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65037 CHASSIS 1
2 65566 ACTIVE STABILIZER CYLINDER 1
3 4242 HYDRAULIC FITTING 0503-6-6 1
4 27522 CLEVIS PIN Ø 1/2" X 2-3/4" lg 3
5 90088 CUTTER PIN Ø1/8" X 1" LG 3
6 66844 ACTIVE STABILIZER BAR 1
7 65711 CASTER WHEEL 1
8 90000 LOCK NUT Ø 5/16" - 18 UNC. 4
9 65760 BRONZE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 5/8" Lg. 2
10 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 4
11 90011 WASHER Ø 1/2" AA 1
12 65712 SHOULDER SCREW Ø 1/2" X 1/2" Lg. 1
13 65761 BRONZE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 5/8" Lg. 1
14 90065 LOCK WASHER Ø 3/8" 1
15 90046 LOCK NUT Ø 3/8" - 16 UNC. 1
16 90094 GREASE FITTING STRAIGHT 1
17 90095 GREASE FITTING 90° Ø 1/4" - 28 UNC. 1

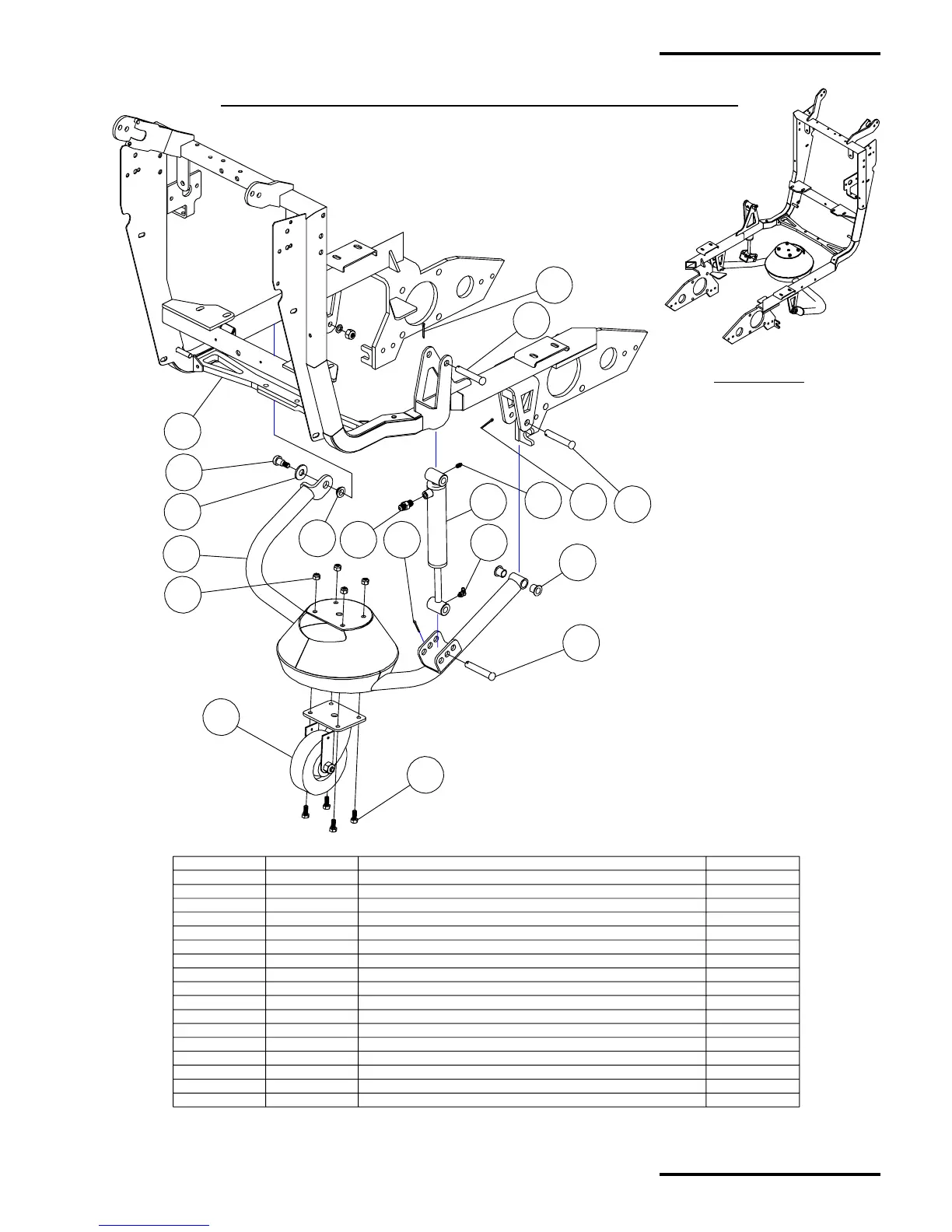

ASSEMBLY VIEW
A67575 - ACTIVE STABILIZER ARM
ACTIVE STABILIZER BAR & HYDRAULIC CYLINDER FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
SW-7
Sweeping Section
