MADVAC PS300 - A67393 - Suspension & Frame Assembly (Option K67020)

9
10
11
8
11
10
13
12
14
2
4
3
5
6
1
7
A
A
A
A
A
A
A
A
A
B
B
A
A
A
A
A
A
A

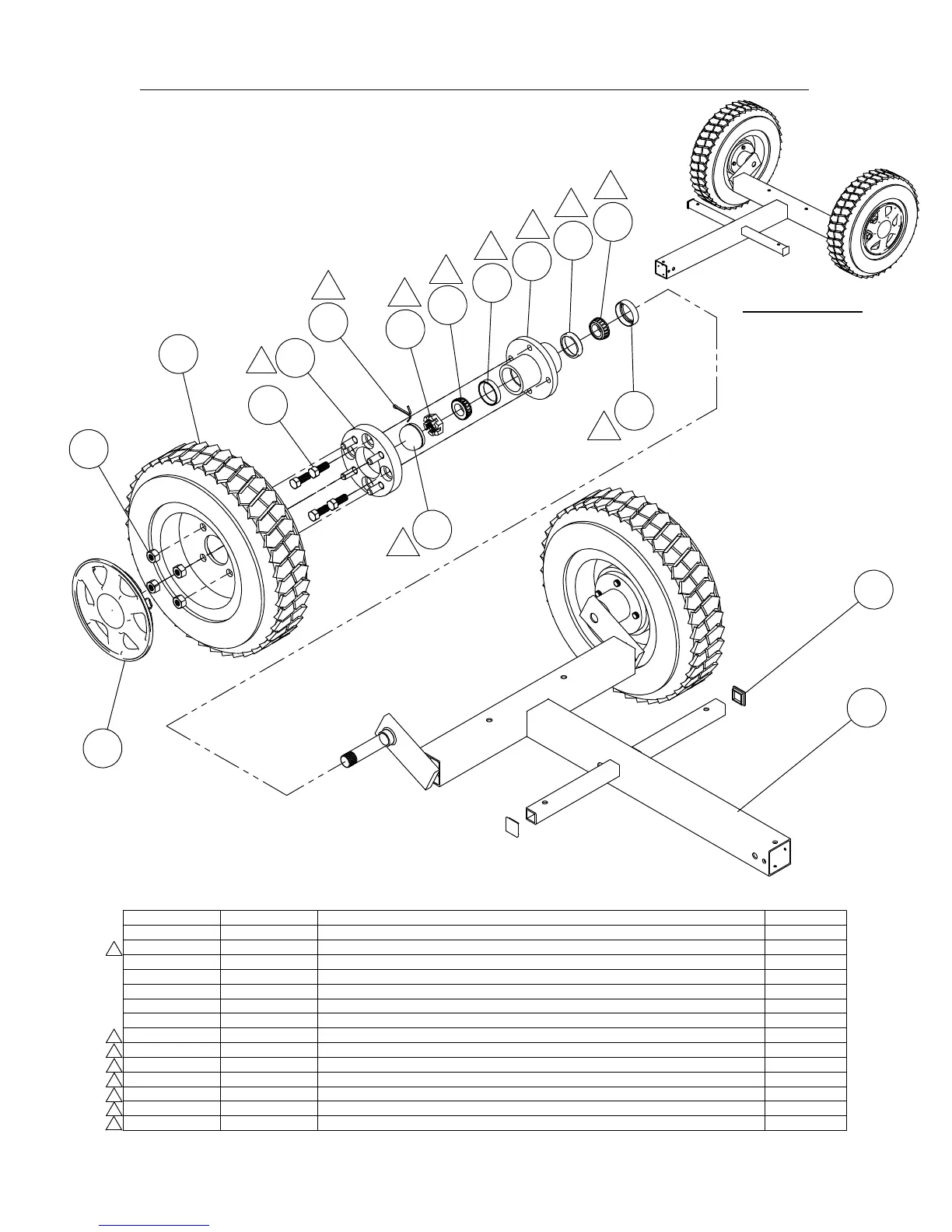

ASSEMBLY VIEW
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67647 FIXED SEAT FRAME 1
2 68029 WHEEL SPACER ASSEMBLY 2
3 66430 WHEEL ASSEMBLY 2
4 7179 WHEEL BOLT Ø 1/2" - 20 UNC X 1-1/4" Lg.(90° head) 8
5 8639 WHEEL NUT Ø 9/16" 8
6 66154 WHEEL COVER 2
7 91020 SQUARE HOLE PLUG 1" 2
8 67977 HUB ONLY 4 BOLTS 2
9 62658 HUB DUST SEAL 2
10 62633 HUB BEARING 4
11 9651 BEARING CUP 4
12 17154 CUTTER PIN Ø 1/8" X 2-7/8" Lg. 2
13 17238 CASTLE NUT DIA 1.000" - 14 UNF 2
14 8019 DUST CAP 2
A67393 - SUSPENSION & FRAME ASSEMBLY (OPTION K67020)
SUSPENSION & FRAME ASSEMBLY FOR PS300 EQUIPPED WITH DELUXE SEAT OPTION K67020
MadVac Inc.
PS 300 Operator's & Parts Manual
October 2003, Revision: B
