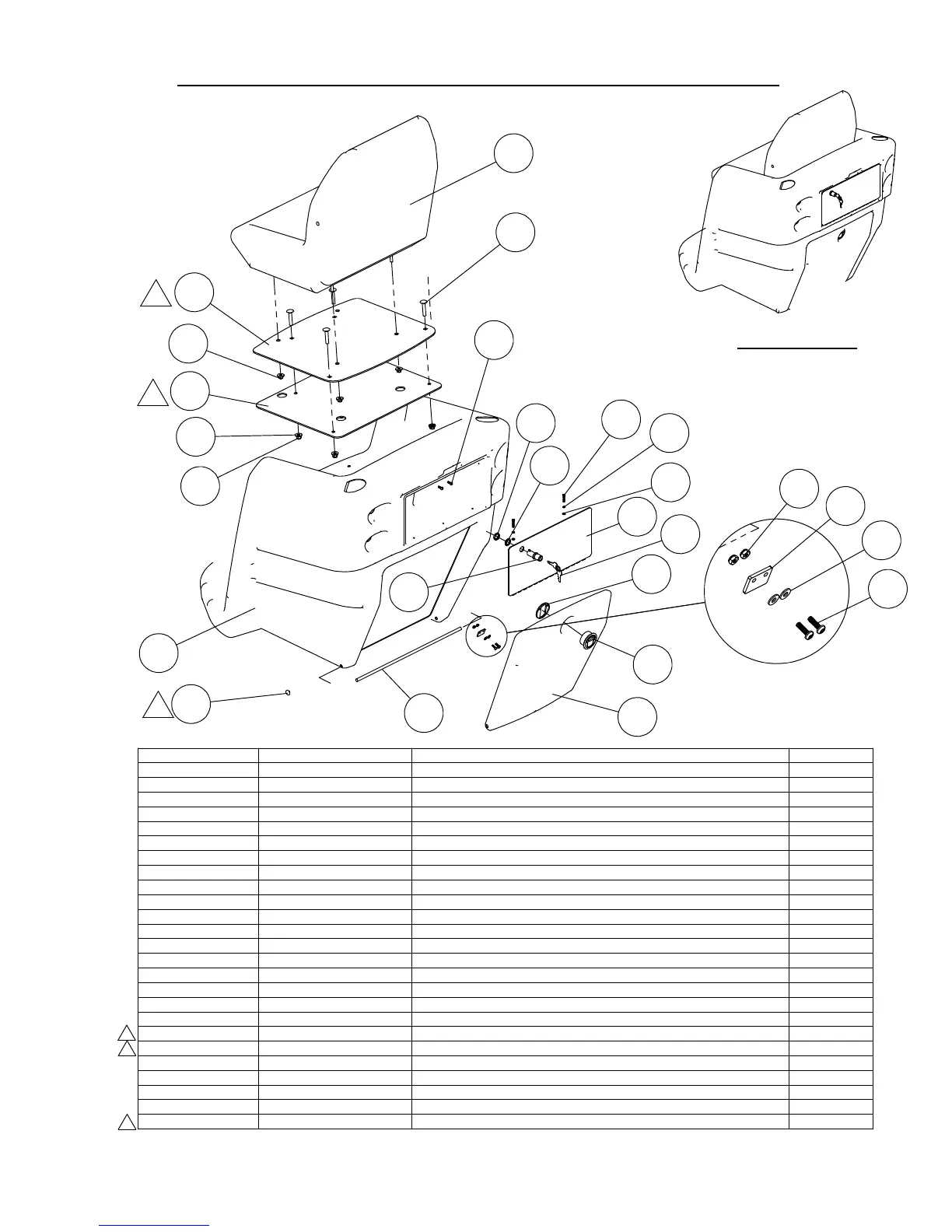

MADVAC PS300 - A67692 - Body & Seat Assembly (Option K67020)

9
21
1
17
8
7
10
5
12
13
6
11
16
4
3
25
15
2
14
20
22
19
B
B
B
B
B
B
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67333 SEAT SHELL 1
2 68023 AXIS FIX SEAT BOTTOM DOOR 1
3 67334 BOTTOM DOOR 1
4 67328 LATCH MI-64 1
5 67631 TOP DOOR ASSEMBLY 1
6 67641 LATCH SOUTHCO 1
7 90056 LOCK WASHER # 10 2
8 90039 BOLT HEX. HEAD # 10 - 32 UNC X 1" Lg. 2
9 67640 SEAT 1
10 90005 WASHER # 10 2
11 (COMES WITH 67641) KEYS 1
12 (COMES WITH 67641) JAM NUT 1
13 (COMES WITH 67641) TOOTH LOCK WASHER 1
14 90066 WASHER Ø 3/8" 8
15 90000 LOCK NUT Ø 5/16" - 18 UNC. 4
16 (COMES WITH 67328) LATCH HOLDER 1
17 90031 ROUND HEAD CAP SCREW # 8 - 32 UNC X 5/8" Lg. 4
18 67625 BOTTOM DOOR LATCH KEEPER 1
19 67957 SEAT PLATE INSIDE 1
20 67957 SEAT PLATE 1
21 90149 CARRIAGE BOLT Ø 3/8" - 16 UNC. X 2" Lg. 4
22 90046 LOCK NUT Ø 3/8" - 16 UNC. 4
23 90015 LOCK NUT # 8 - 32 UNF. 2
24 90030 WASHER # 8 2
25 91019 HOLE PLUG Ø 3/8" 2
ASSEMBLY VIEW
23
18
24
17
A67692 - BODY & SEAT ASSEMBLY (OPTION K67020)
BODY & SEAT ASSEMBLY FOR PS300 EQUIPPED WITH DELUXE SEAT OPTION K67020
MadVac Inc.
PS 300 Operator's & Parts Manual
May 2003, Revision: B
