67363 HYDRAULIC HOSE ASSEMBLY
FROM OPTION MANIFOLD BLOCK
FITTING STRAIGHT # 4595
TO FLOW CONTROL VALVE HYDRAULIC
FITTING 90° # 25454
65896 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OIL COOLER
FITTING 45° # 4294
TO HYDRAULIC OIL FILTER
FITTING 90° # 65872
65880 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OPTIONAL MANIFOLD
HYDRAULIC "T" FITTING # 67332
TO HYDRAULIC GEAR PUMP
HYDRAULIC FITTING 45° # 67332
67270 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC GEAR PUMP
HYDRAULIC "T" FITTING # 24081
TO HYDRAULIC GEAR PUMP
HYDRAULIC FITTING 45° # 67332
67269 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OPTIONAL MANIFOLD
HYDRAULIC "T" FITTING # 24081
TO HYDRAULIC GEAR PUMP
HYDRAULIC FITTING 45° # 67332
67337 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC FLOW CONTROL
HYDRAULIC FITTING STRAIGHT # 25452
TO OPTIONAL HYDRAULIC "T" FITTING # 25479
65893 HYDRAULIC HOSE ASSEMBLY
FROM HYDROSTATIC PUMP
HYDRAULIC FITTING 90° # 25324
TO HYDRAULIC "T" FITTING # 25373
65895 HYDRAULIC HOSE ASSEMBLY
FROM HYDROSTATIC PUMP
HYDRAULIC FITTING STRAIGHT # 25452
TO HYDRAULIC WHEEL MOTOR
FITTING STRAIGHT # 65864
65894 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC MANIFOLD BLOCK
HYDRAULIC FITTING STRAIGHT #4307
TO HYDRAULIC WHEEL MOTOR
FITTING STRAIGHT # 65864
65884 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC "T" FITTING # 24081
TO HYDRAULIC "T" FITTING # 25479
67311 HYDRAULIC HOSE ASSEMBLY
FROM OPTIONAL MANIFOLD BLOCK
HYDRAULIC FITTING STRAIGHT #4595
TO HYDRAULIC OPTIONAL "T" FITTING # 25373
67450 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC FLOW CONTROL
FITTING 90° # 25398
TO HYDRAULIC MANIFOLD BLOCK
FITTING 90° # 4412
67451 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC FLOW CONTROL
FITTING STRAIGHT # 25401
TO ACTIVE STABILIZER ARM
FITTING 90° # 4242
65889 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OIL FILTER
FITTING 45° # 66390
TO HYDRAULIC OIL TANK RETURN PORT
FITTING 90° # 65661
65268 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC PUMP
FITTING 90° # 24170
TO HYDRAULIC "T" FITTING # 25373
65897 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC WHEEL MOTOR
STRAIGHT FITTING # 65864
TO HYDRAULIC MANIFOLD BLOCK
STRAIGHT FITTING # 4285
65899 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC WHEEL MOTOR
FITTING # 65864
TO HYDRAULIC MANIFOLD BLOCK
STRAIGHT FITTING # 4307
67322 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC "T" FITTING # 25373
TO HYDRAULIC BRUSH MOTOR
FITTING 90° # 25454
67335 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC BRUSH MOTOR
FITTING 90° # 25454
TO HYDRAULIC "T" FITTING # 25373
67312 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC CYLINDER FITTING
90 ° # 25403 TO HYDRAULIC
"T" FITTING # 25373
65884 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC BRUSH MOTOR
FITTING 90 ° # 25454 TO HYDRAULIC
"T" FITTING # 25373
65886 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC CYLINDER FITTING
90 ° # 25454 TO HYDRAULIC
"T" FITTING # 25373
65891 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC BRUSH MOTOR
90 ° # 25454 TO HYDRAULIC
"T" FITTING # 25373
67743 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OPTIONAL MANIFOLD
HYDRAULIC FITTING 45° # 67332
TO HYDRAULIC OIL TANK "T" FITTING # 25463
67729 WATER HOSE (HYDRAULIC PURPOSE)
FROM WATER "T" FITTING # 65877
TO HYDRAULIC TANK TOP RETURN PORT
BY WATER FITTING 90° # 66658
67741 WATER HOSE (HYDRAULIC PURPOSE)
FROM WATER "T" FITTING # 65877
TO WATER "T" FITTING # 65877
67742 WATER HOSE (HYDRAULIC PURPOSE)
FROM WATER FITTING # 66658
TO WATER "T" FITTING # 65877
67740 WATER HOSE (HYDRAULIC PURPOSE)
FROM HYDRAULIC CYLINDER
WATER FITTING 90° # 66658
TO WATER "T" FITTING # 65877
67730 WATER HOSE (HYDRAULIC PURPOSE)
FROM HYDRAULIC CYLINDER
WATER FITTING 90° # 66658
TO WATER "T" FITTING # 65877
67317 HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC CYLINDER FITTING
STRAIGHT # 4242 TO HYDRAULIC
"T" FITTING #25373

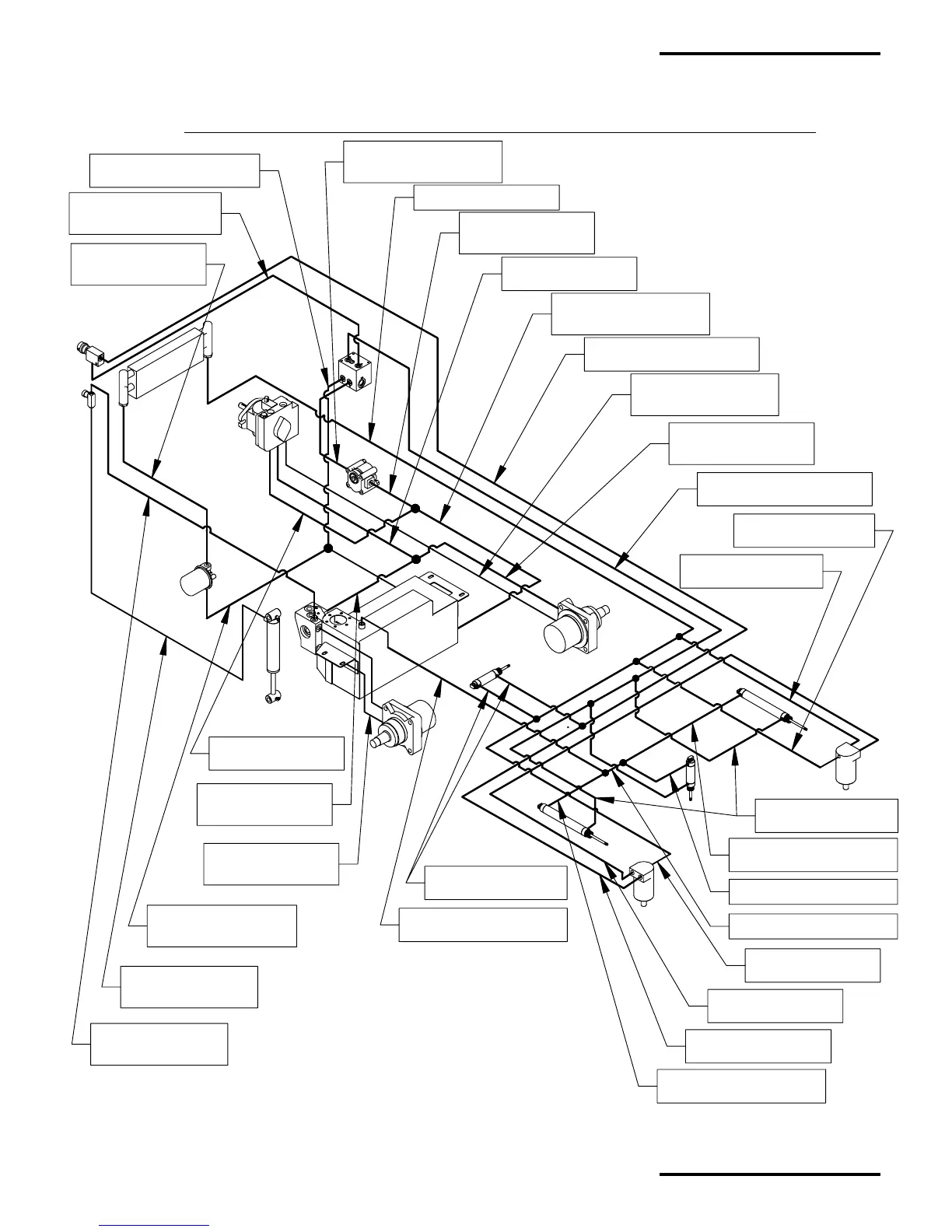

A67618 - HYDRAULIC HOSE ROUTINGS (OLD CONFIGURATION)
(SERIAL NUMBER OLDER THEN 17577)
HYDRAULIC HOSE ROUTINGS FOR SERIAL NUMBER OLDER THEN17577 (OPTIONS INCLUDED)
