MADVAC PS300 - A67603 - Hydraulic Oil Tank

HYDRAULIC OIL
FILLER / BREATHER
KIT # 24057
17
4
3
18
19
18
16
7
11
10
9
14
11
8
13
1
15
6
12
2
5
11
10
9
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65207 HYDRAULIC OIL TANK & KIT 1
2 65721 TANK MOUNTED STAINER 1
3 (COMES WITH 24057) OIL BASE CAP 1
4 90029 ROUND HEAD CAP SCREW # 10 - 32 UNC. X 3/4" Lg. 6
5 4749 HYD. FITTING 90° (Pipe-08/JIC-08) 1
6 65861 HYD. FITTING 90° (Pipe-08/JIC-06) 1
7 67331 BRAKE CABLE HOLDER 1
8 27668 HOSE CLAMP (CL-06) 2
9 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREAD) 4
10 90018 LOCK WASHER Ø 1/4" 4
11 90004 WASHER Ø 1/4" 5
12 66264 HYDRAULIC PLUG FITTING 1
13 90020 LOCK NUT Ø 1/4" - 20 UNC 1
14 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 1
15 24081 HYDRAULIC FITTING "T" (JIC-06/JIC-06/Fem JIC-06) 1
16 67732 WATER FITTING 90° (Pipe-02/Hose-04) 1
17 24057 HYDRAULIC OIL TANK CAP 1
18 (COMES WITH 24057) OIL FILLING GASKET 2
19 (COMES WITH 24057) OIL FILLING STRAINER 1

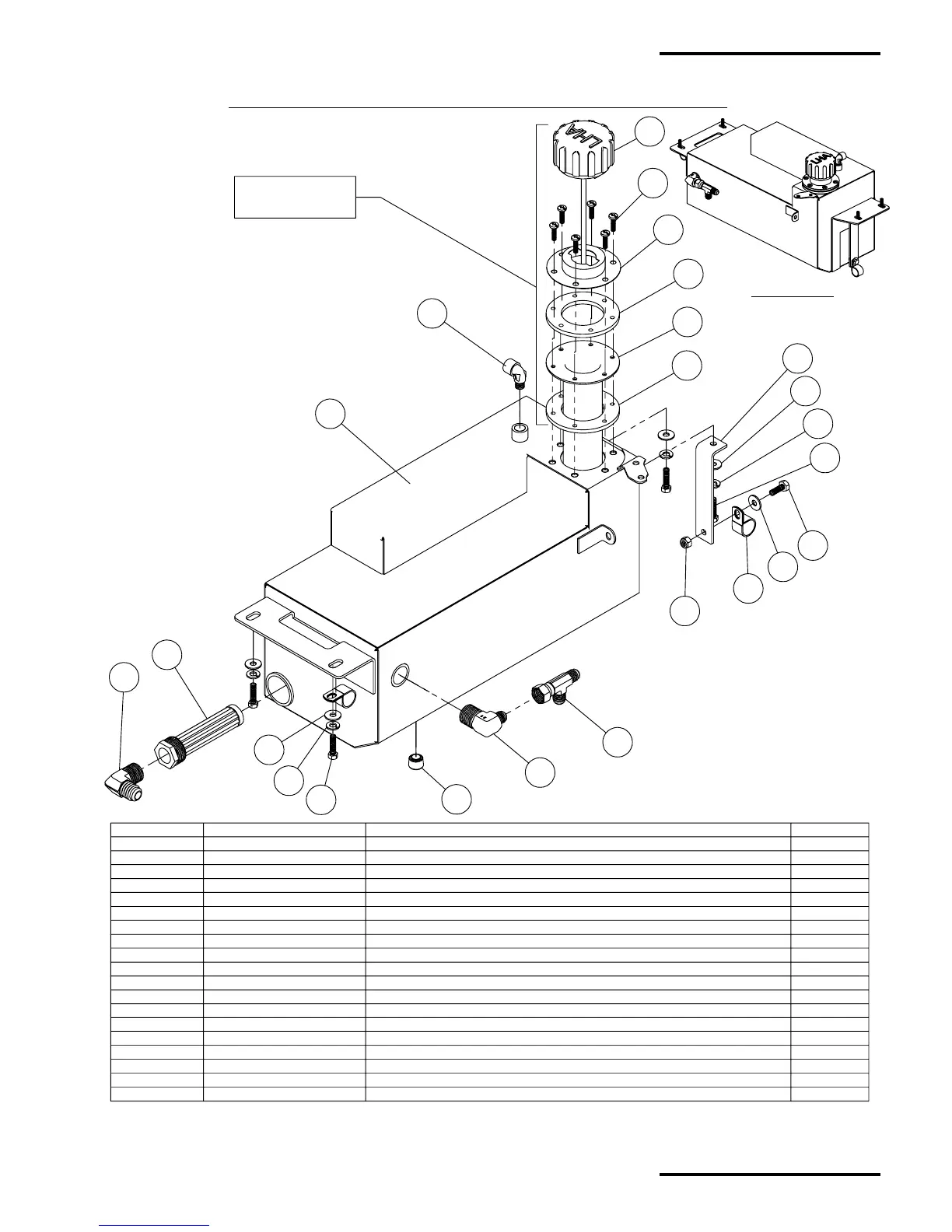

ASSEMBLY VIEW
A67603 - HYDRAULIC OIL TANK
HYDRAULIC OIL TANK & HYDRAULIC FITTINGS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
October 2002, Revision: C
HY-2
Hydraulics Section
