MADVAC PS300 - A67544 - Air Intake System

10
8
9
18
17
7
14
3
2
11
15
6
15
4
15
5
1
16
15
12
13
ITEM # 12 & 13 ARE NO
LONGER USED IN PRODUCTION,
STILL AVAILABLE AS
REPLACEMENT PARTS
OR OPTION.
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65754 ENGINE, DIESEL 2 CYL (PS300) 1
2 65906 AIR FILTER HOUSING 1
3 66012 T-TOP 1
4 66183 AIR FILTER TUBE 1
5 66359 INTAKE RUBBER ELBOW SHORT 1
6 66360 INTAKE RUBBER ELBOW LONG 1
7 66049 KUBOTA ENGINE AIR FILTER ELEMENT 1
8 (COMES WITH 65906) FILTER END CAP 1
9 (COMES WITH 65906) RUBBER SEAL GASKET 1
10 (COMES WITH 65906) FILTER HOUSING CAP 1
11 (COMES WITH 65906) AIR FILTER BRACKET 1
12 (COMES WITH 8841) FITTING 1
13 8841 AIR CLEANER INDICATOR 1
14 90057 SCREW ALLEN SOCKET DRIVE COUNTERSINK HEAD Ø 5/16" - 18 UNC X 1/2" Lg. 2
15 9554 HOSE CLAMP Ø 2" 5
16 66141 HOSE AIR INTAKE 1
17 (COMES WITH 65906) RUBBER WASHER 1
18 (COMES WITH 65906) BUTTERFLY NUT 1

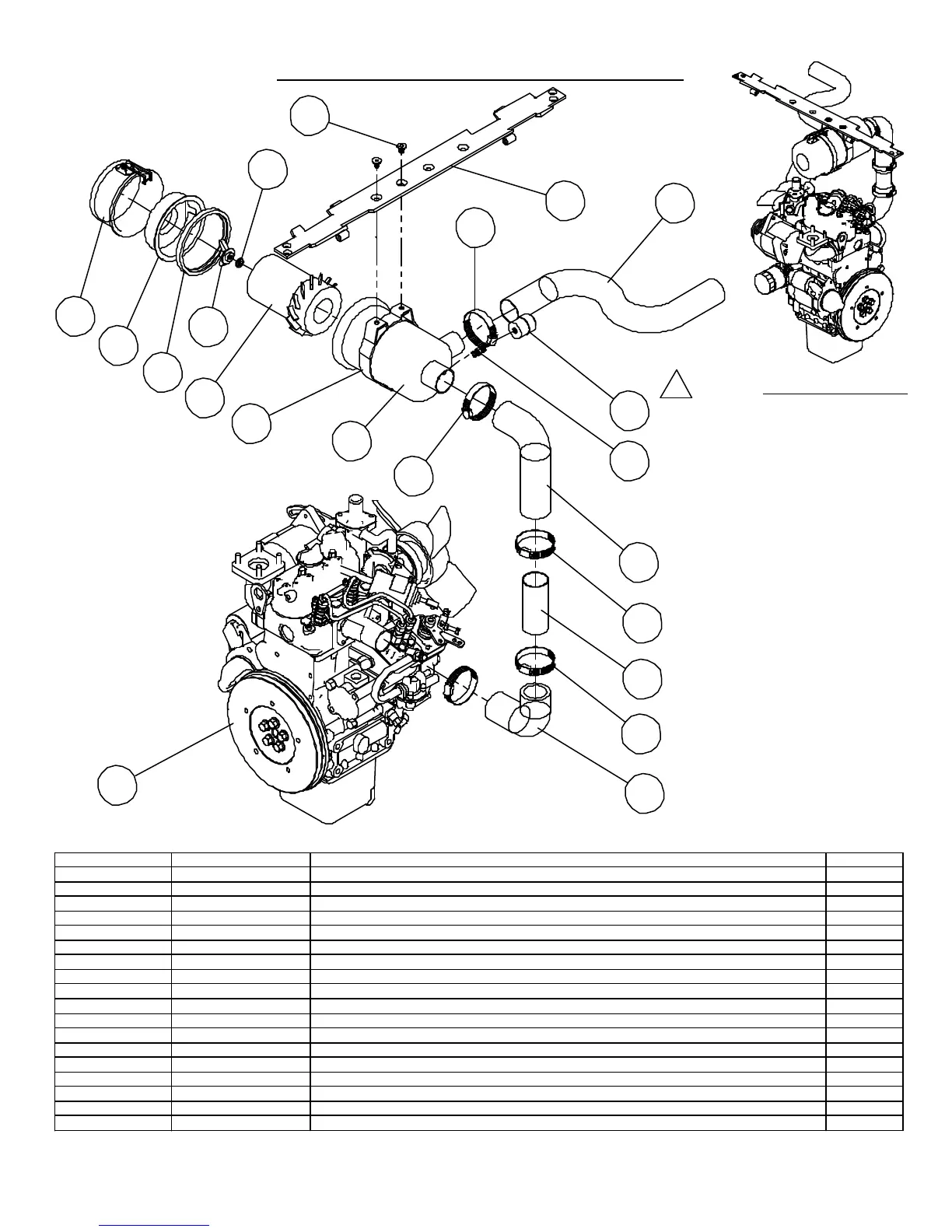

ASSEMBLY VIEW
A
A67544 - AIR INTAKE SYSTEM
AIR FILTER & HOSES ROUTING FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
May 2003, Revision: A
