MADVAC PS300 - A67784 - Hydraulic Hoses Routing (Option K67377)

1
2
3
67702 - HYDRAULIC
HOSES ASSEMBLY
ALL HYDRAULIC FITTINGS MUST BE PRE-OILLED BEFORE ASSEMBLY
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1(SEE DRAWING A67778) NEW OPTIONAL HYDRAULIC MANIFOLD 1
2 67748 HYDRAULIC CYLINDER 1
3 4595 HYDRAULIC FITTING STRAIGHT 2
4 25403 HYDRAULIC FITTING 90° 1
5 25401 HYDRAULIC FITTING STRAIGHT BULKHEAD # 4 2
6 25098 HYDRAULIC FLOW CONTROL 1
7 4242 HYDRAULIC FITTING STRAIGHT 1
4
5
5
6
7

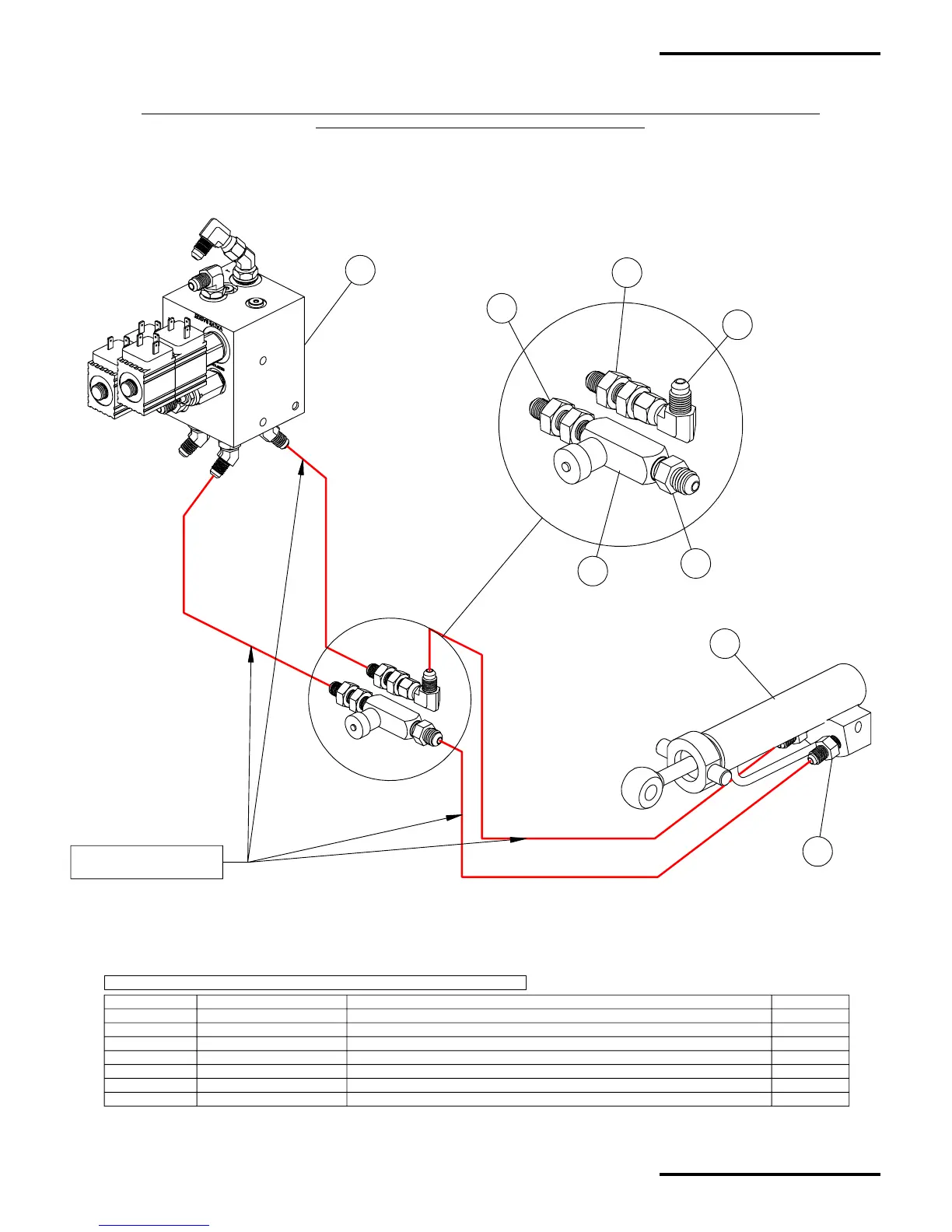

A67784 - HYDRAULIC HOSES ROUTING (OPTION K67377)
HYDRAULIC HOSES ROUTING FOR PS 300 EQUIPPED WITH OPTION K67377 - HYDRAULIC SIDE DUMP
& NEW HYDRAULIC MANIFOLD CONFIGURATION
MadVac Inc.
PS300 Operator's & Parts Manual
September 2002, Revision: ---
HY-17
Hydraulics Section
