MADVAC PS300 - A67587 - Hydraulic Manifold (Optional Configuration)

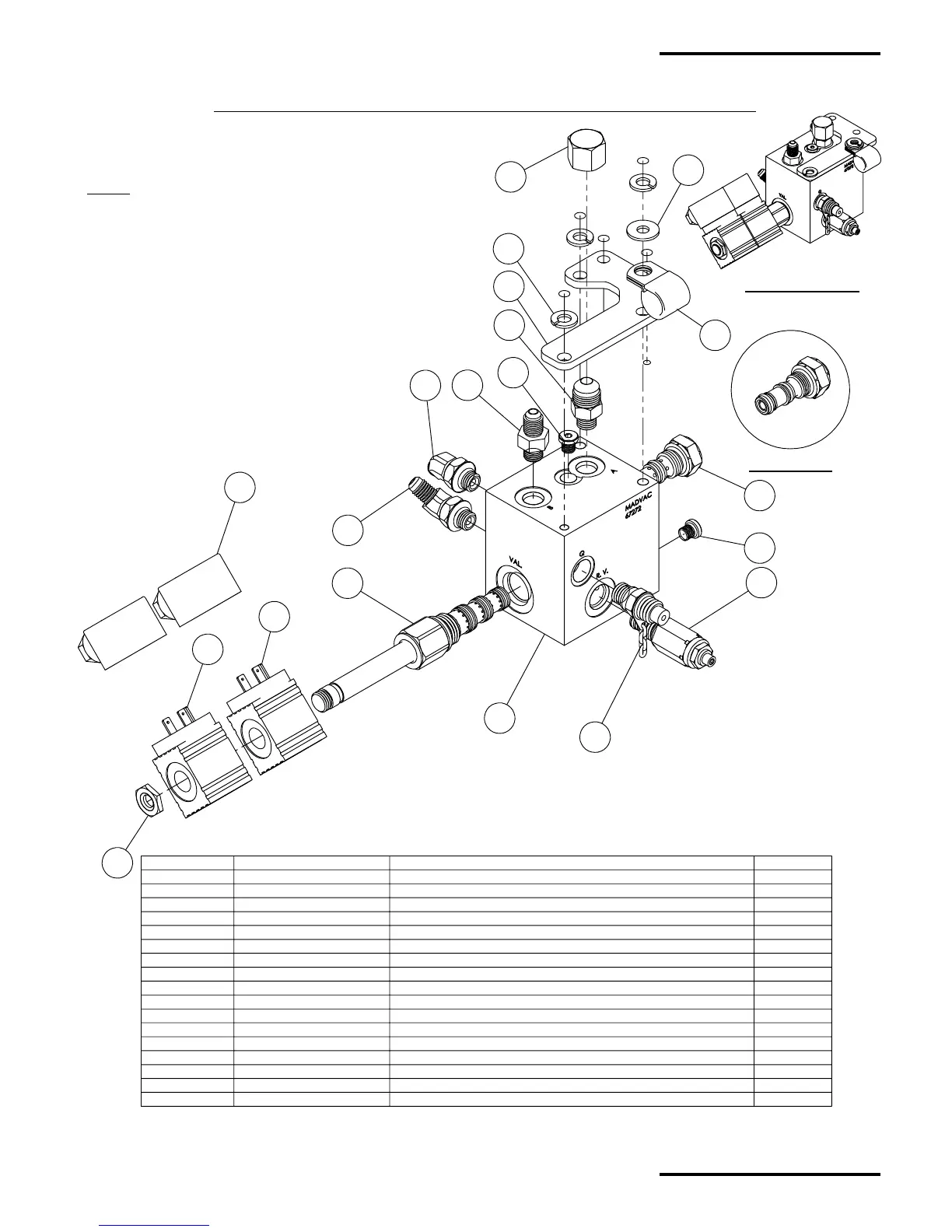

ASSEMBLY VIEW
NOTE:
14
5
7
7
6
9
9
1
2
17
8
3
4
8
15
10
13
16
11
12
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67272 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 67306 RELIEF VALVE 1
3 1
4 4595 HYDRAULIC FITTING STRAIGHT 1
5 (COME WITH 67305) JAM NUT 1
6 67305 SOLENOÏDE VALVE 1
7 67305 HYDRAULIC VALVE ELECTRIC COIL 2
8 17108 HYDRAULIC PORT PLUG 2
9 67332 HYDRAULIC FITTING 45° 2
10 67330 HYDRAULIC MANIFOLD SUPPORT 1
11 27271 CABLE CLAMP C.L. 13 1
12 90004 WASHER Ø 1/4" 1
13 90018 LOCK WASHER Ø 1/4" 3
14 5915 CONNECTOR FOR SOLENOID COIL 2
15 67267 FITTING STRAIGHT 1
16 67728 PLUG FEMALE 1
17 67699 TEST PORT COUPLING 1
67307-RELIEF VALVE
USED WITH HYDRAULIC
RAISE/LOWER
BRUSH & NOZZLE
OPTION CONFIGURATION.
OTHERWISE
67347-CAVITY PLUG
ARE USED.
SEE NOTE
A67587 - HYDRAULIC MANIFOLD (OPTIONAL CONFIGURATION)
HYDRAULIC MANIFOLD & HYDRAULIC FITTINGS FOR OPTIONAL EQUIPED PS 300
MadVac Inc.
PS 300 Operator's & Parts Manual
April 2002, Revision: A
HY-5
Hydraulics Section
