MADVAC PS300 - A67611 - Battery & Mounting Hardwares

ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65037 CHASSIS 1
2 65716 BATTERY GROUP 24 450 AMP 1
3 65925 BATTERY HOLDER 1
4 3677 BATTERY CABLE 48" 1
5 6369 BATTERY BOOT 1
6 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 1
7 90018 LOCK WASHER Ø 1/4" 1
8 90004 WASHER Ø 1/4" 2
9 66772 BATTERY GROUND CABLE 9" 1
10 90127 SELF DRILLING 1
5
4
2
6
7
8
3
9
10
8
1

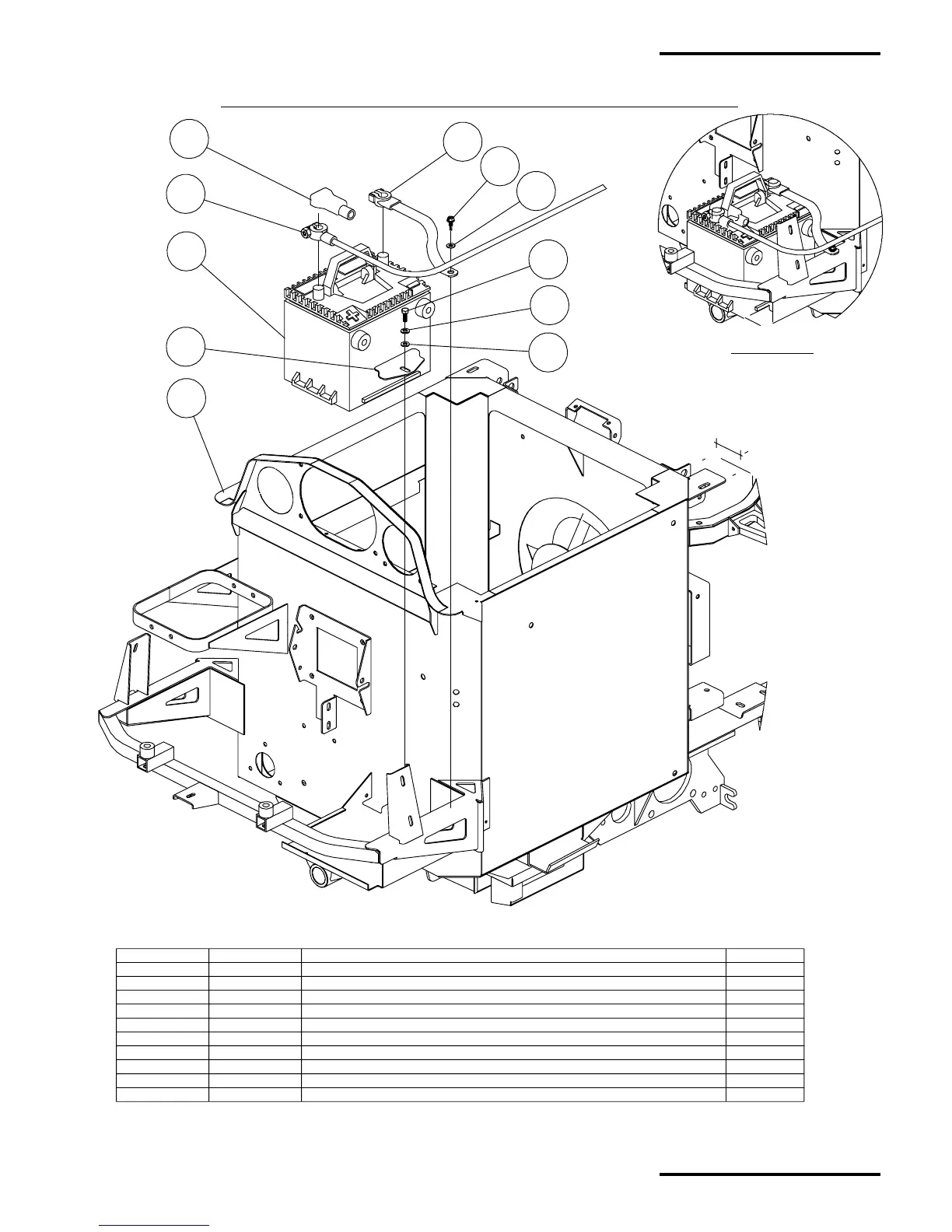

ASSEMBLY VIEW
A67611 - BATTERY & MOUNTING HARDWARE
BATTERY, MOUNTING HARDWARE & POST CABLE FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
PO-9
Power Pack Section
