MADVAC PS300 - A67304 - Oil Cooler

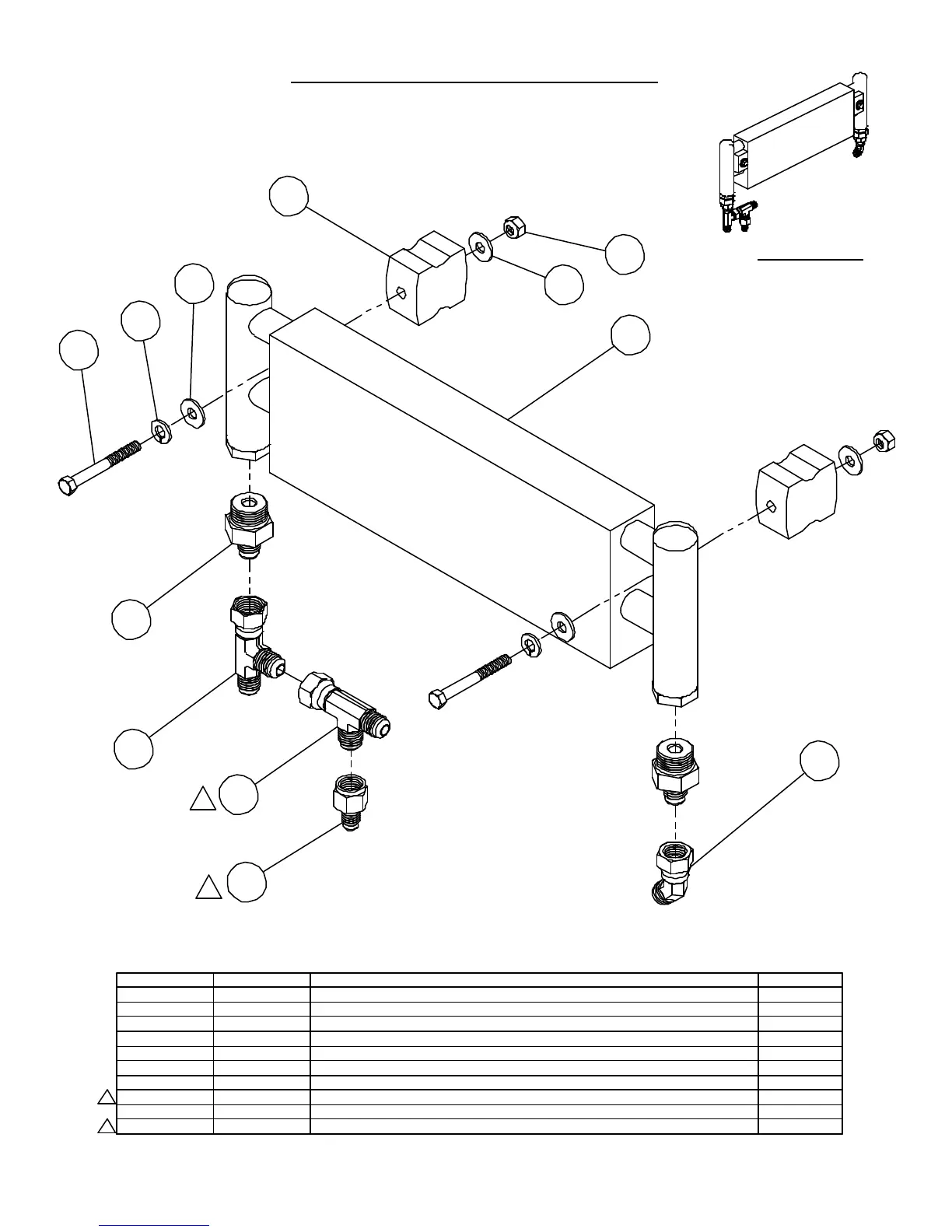

ASSEMBLY VIEW
3
4
6
7
4
5
1
2
8
9
10
8
A
A
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65718 OIL COOLER 1
2 65864 HYDRAULIC FITTING STRAIGHT (ORB-10/JIC-06) 2
3 27064 OIL COOLER SUPPORT KIT 2
4 90004 WASHER Ø 1/4" 4
5 90020 LOCK NUT Ø 1/4" - 20 UNC 2
6 90018 LOCK WASHER Ø 1/4" 2
7 90124 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 2-1/4" Lg. 2
8 24081 HYDRAULIC FITTING "T" (JIC-06/JIC-06/Fem JIC-06) 2
9 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1
10 25428 HYDRAULIC FITTING STRAIGHT (FEMALE JIC-06/MALE JIC-04) 1
A67304 - OIL COOLER
OIL COOLER & SUPPORT FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
February 2003, Revision: A
