MADVAC PS300 - A67504 - Rear Panel

11
14
2
6
1
5
4
15
3
Can be ordered as replacement
part or in a complete
kit, see Silent Pack Option.
(Option K67022)
9
8
13
12
7
16
10
17
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 66083 LOWER BRACKET 2
2 (COMES WITH 66004) DOOR KEEPER 1
3 66004 GRABER DOOR CATCHER 1
4 90007 BOLT HEX. HEAD # 10 - 32 UNF. X 3/4" Lg. 4
5 90005 WASHER # 10 4
6 90006 LOCK NUT # 10 - 32 UNF 4
7 90704 BOLT HEX. HEAD Ø M6 - 1.0 X 20 m.m. Lg. 2
8 90756 WASHER Ø M6 (TYPE B-B) 2
9 90751 LOCK WASHER Ø M6 2
10 90734 HEX NUT Ø M6 - 1.0 2
11 65826 HANDLE 1
12 90125 SLOTTED ROUND MACHINE SCREW # 6 - 32 UNC. X 3/4" Lg. 2
13 90035 LOCK NUT # 6 - 32 UNC. 2
14 65524 REAR PANEL 1
15 66304 REAR PANEL NOISE BARRIER 1
16 90036 WASHER # 6 2
17 62714 TRIM REAR PANEL 1

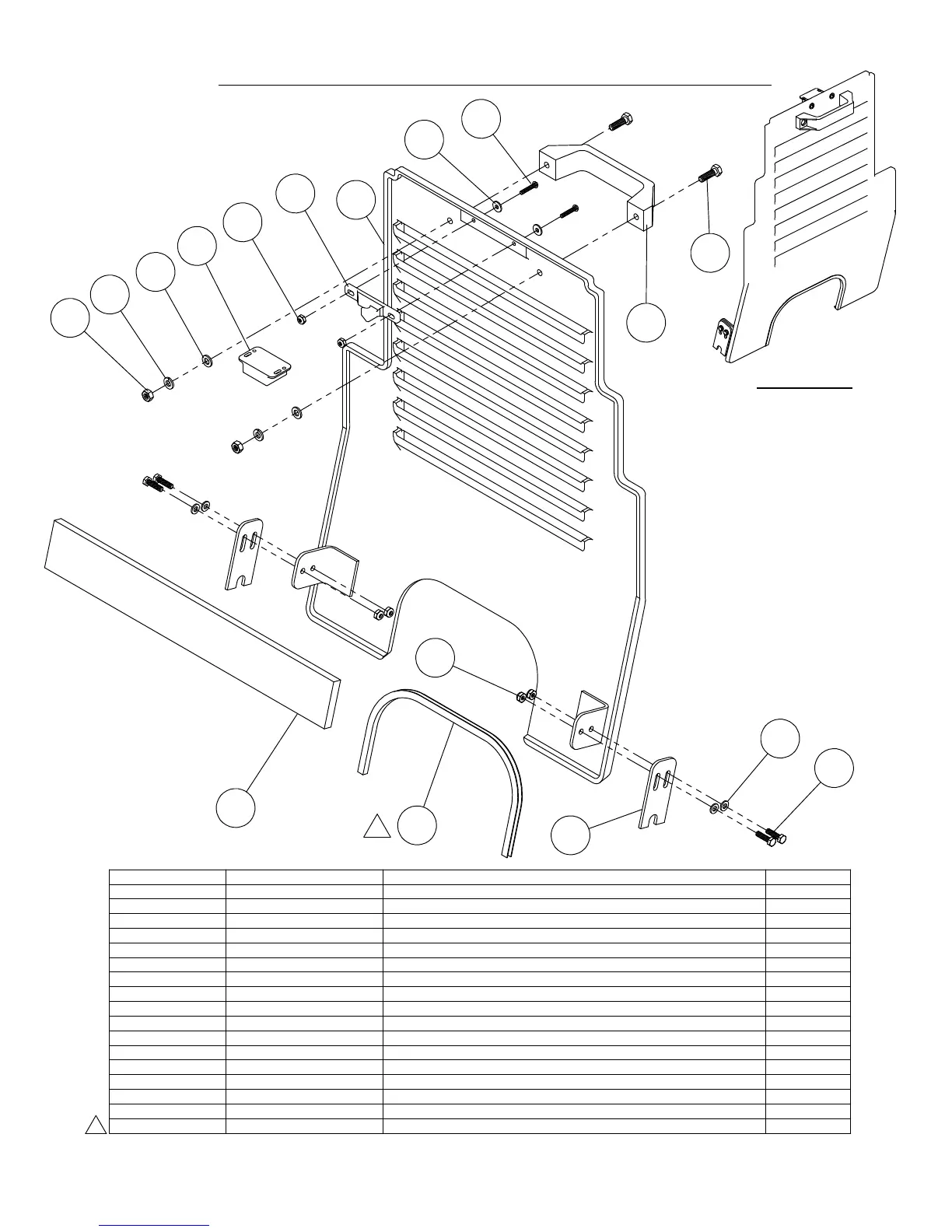

ASSEMBLY VIEW
A67504 - REAR PANEL
REMOVABLE REAR PANEL AND LATCH ASSEMBLY FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
August 2003, Revision: A
