MADVAC PS300 - A67892 - Hydraulic Hoses Routing Drive (# 17578 & Up)

FROM
OPTIONS
HYDRAULIC
MANIFOLD
SEE DRAWING
A67891
6
2
1
5
4
3
7
65897 - HYDRAULIC
HOSE ASSEMBLY
67729 - WATER HOSE
(HYDRAULIC PURPOSE)
67451 - HYDRAULIC
HOSE ASSEMBLY
67450 - HYDRAULIC
HOSE ASSEMBLY
65899 - HYDRAULIC
HOSE ASSEMBLY
65896 - HYDRAULIC
HOSE ASSEMBLY
65893 - HYDRAULIC
HOSE ASSEMBLY
65894 - HYDRAULIC
HOSE ASSEMBLY
65895 - HYDRAULIC
HOSE ASSEMBLY
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1(SEE DRAWING A67580) RIGHT TRACTION WHEEL AND BRAKE CALIPER 1
2(SEE DRAWING A67579) LEFT TRACTION WHEEL AND BRAKE CALIPER 1
3(SEE DRAWING A67609) HYDRAULIC TANK & MANIFOLD 1
4(SEE DRAWING A67608) KEY IGNITION, WATER SPRAY VALVE & ACTIVE STABILIZER ADJUSTMENT 1
5(SEE DRAWING A67575) ACTIVE STABILIZER ARM 1
6(SEE DRAWING A67593) HYDRAULIC PUMP 1
7 4269 HYDRAULIC FITTING "T" (JIC-10/JIC-10/JIC-10) 1

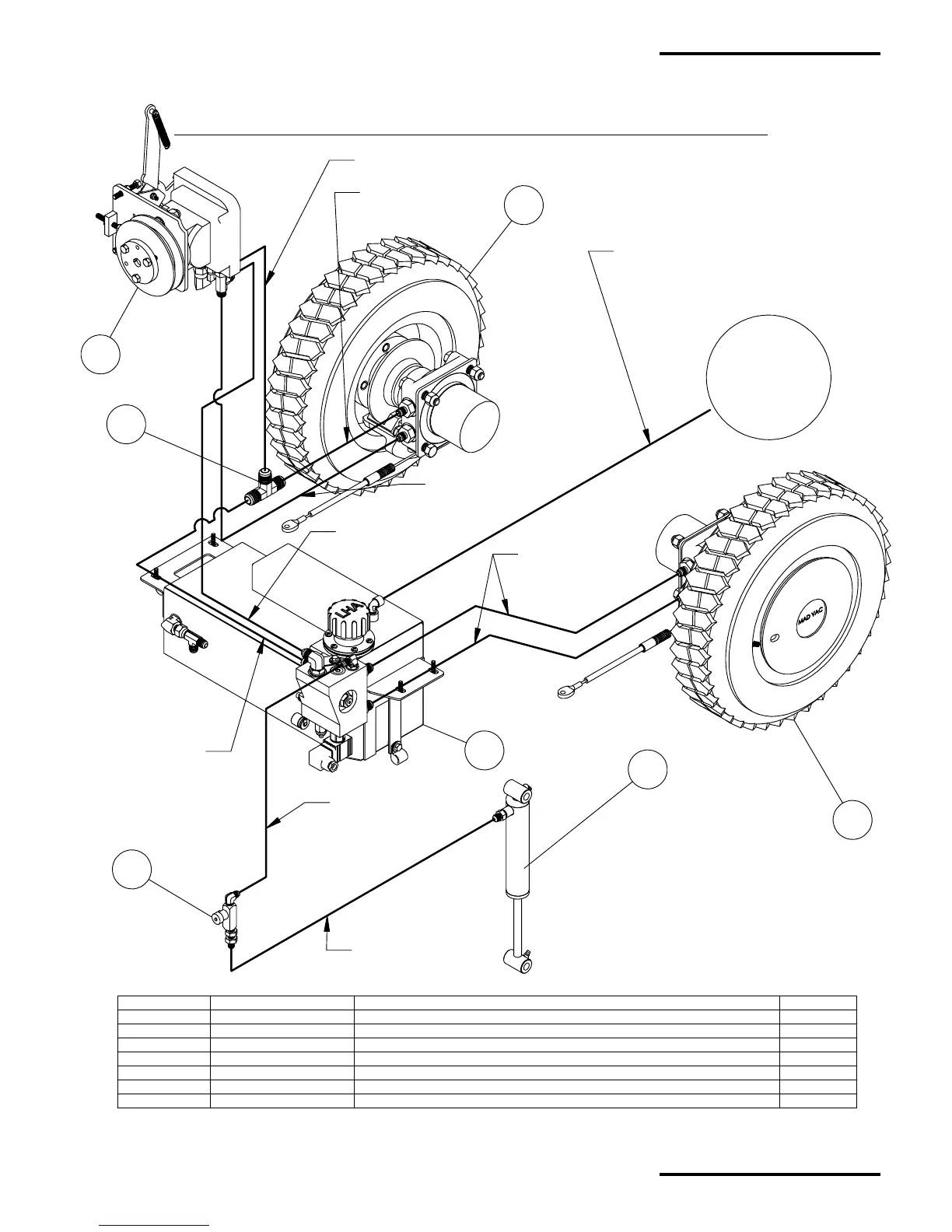

A67892 - HYDRAULIC HOSES ROUTING DRIVE SYSTEM
(SERIAL NUMBER 17578 AND UP.)
HYDRAULIC HOSES ROUTING FOR PS300 DRIVE SYSTEM (SERIAL NUMBER 17578 & UP.)
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: ---
HY-24
Hydraulics Section
